Trough Bed Belt Conveyor – 10 Ft

Speedrack West | SKU: CV-725TB-18-10

$10,050.18

Shipping calculated at checkout.

Belt Variant

18" 24" 36"

Handling & Use Requirements

Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.

Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.

Delivery & Freight Shipping

All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.

You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.

Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.

Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.

Add a stand out message for your customers

Need Help Specifying This Equipment?

Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.

Description

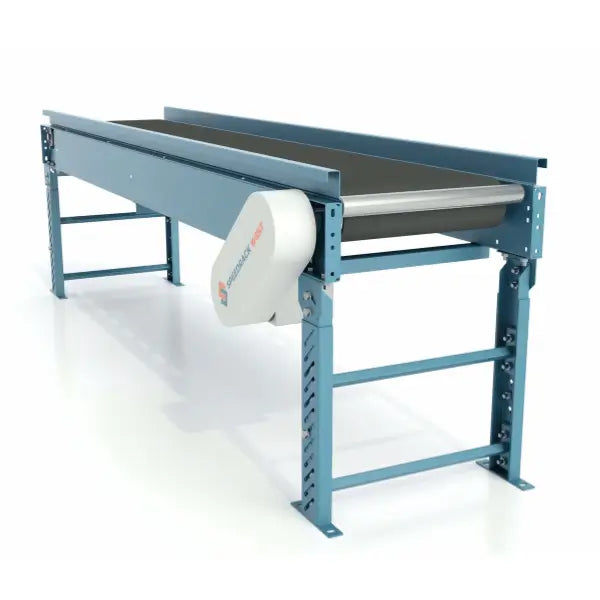

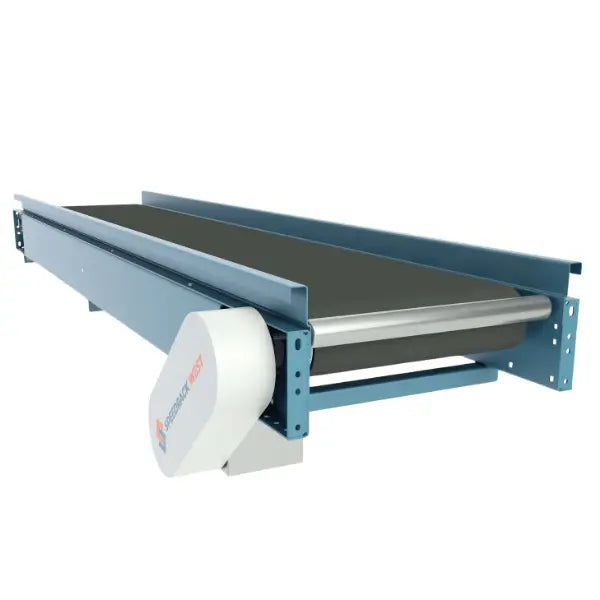

Trough Bed Belt Conveyor for Loose Material Handling

The Trough Bed Belt Conveyor is designed for moving loose, bulk, and irregular materials through industrial and warehouse environments. Common applications include scrap wood, paper waste, chips, cartons, boxes, packaging materials, and production line discharge handling.

The trough-style bed design helps contain material during transport while maintaining continuous belt movement across long runs. This 10 ft conveyor section is available in multiple belt widths to support different throughput requirements and material sizes.

Key Features

Trough bed design helps contain loose materials during transport.
Designed for scrap, chips, cartons, paper waste, and packaging materials.
7" deep heavy-duty box-style conveyor bed.
PVC-120 black conveyor belting.
Crowned and fully lagged drive pulley.
Precision heavy-duty ball bearing pulley assemblies.
Adjustable steel return rollers.
Screw type take-up at tail pulley.
One-direction end drive configuration standard.
Optional center drive available for reversible applications.
Multiple belt widths available.
Custom conveyor lengths and configurations available.
Optional floor supports and electrical controls available.

Trough Bed Belt Conveyor Specifications

Belting	PVC-120 black belt.
Drive Pulley	4" diameter with 1-3/16" diameter shaft or 8" diameter with 1-7/16" diameter shaft. Both crowned and fully lagged.
Tail Pulley	4" diameter crowned pulley with 1-3/16" diameter shaft.
Drive Configuration	End drive allows one-direction operation. Optional center drive available for reversible applications.
Take-Up	Screw type take-up at tail pulley provides 12" belt take-up.
Bearings	Precision heavy-duty lubricated ball bearing units with cast iron housings.
Return Rollers	1.9" diameter x 16 gauge steel rollers, model 196S, adjustable.
Belt Speed	60 FPM constant speed.
Conveyor Bed	7" deep x 12 gauge box-style bed with bed pan braces and 2-1/2" deep x 12 gauge formed trough section with reinforced side flanges.
Motor Drive	1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor.
Roller Chain	No. 50 roller chain for drives 1-1/2 HP or less. No. 60 chain used on larger drives. Chain take-up included on motor base.
Safety Pop-Out Rollers	Standard on both conveyor ends using 1.9" diameter x 16 gauge steel rollers.
Floor Supports	Optional. Conveyor supports sold separately.
Electrical Controls	Optional.

Available Belt Width Variants

Belt Width	BF	OAW	Length
18"	19"	22"	10'
24"	25"	28"	10'
36"	37"	40"	10'

When to Use a Trough Bed Belt Conveyor

Use a trough bed belt conveyor when transporting loose, unstable, lightweight, or bulk materials that require containment during movement. This conveyor type is commonly selected for scrap handling, packaging waste, recycling systems, and general industrial material transfer applications.

When NOT to Use a Trough Bed Conveyor

Do not use a trough bed belt conveyor for sanitary washdown applications, high-temperature materials, or applications requiring precise product orientation.

This conveyor is not intended for powered incline applications without confirming belt retention and product stability requirements. Very small loose materials may require specialized belt configurations or containment options.

Optional Conveyor Supports and Controls

Floor supports are optional and sold separately. Conveyor supports must match the BF width of the conveyor being ordered. Optional electrical controls and additional conveyor configurations are available for facility-specific layouts and operational requirements.

📚 Frequently Asked Questions (FAQs)

What materials can a trough bed belt conveyor handle?

Trough bed belt conveyors are designed for loose and bulk materials including scrap wood, paper waste, chips, cartons, and packaging materials. Do not use for sticky materials that can accumulate on the belt surface.

When should a trough bed conveyor be used instead of a slider bed conveyor?

Use a trough bed conveyor when loose material containment is required during transport. Flat slider bed conveyors are better suited for stable cartons or uniformly supported products.

Can this conveyor run in both directions?

Standard end drive configurations support one-direction operation only. Reversible applications require an optional center drive configuration.

Are conveyor supports included with the conveyor?

No. Floor supports are sold separately and must match the conveyor BF width.

Is this conveyor suitable for sanitary or washdown environments?

No. This conveyor is not designed for sanitary processing or high-moisture washdown applications. Stainless steel or sanitary conveyor systems are typically required for those environments.
