Double-Sided Cantilever Racking

Double-Sided Cantilever Racking for Center-Aisle Long Material Storage

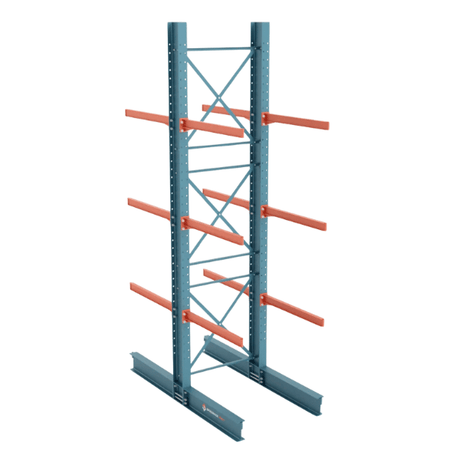

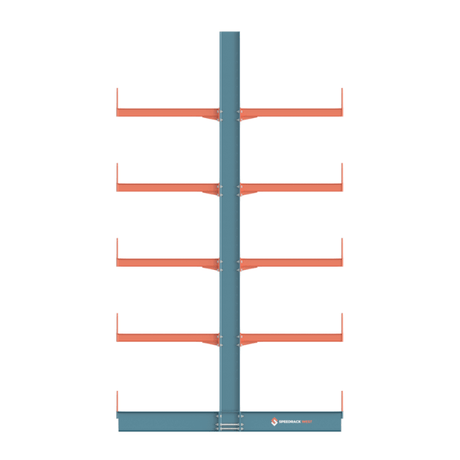

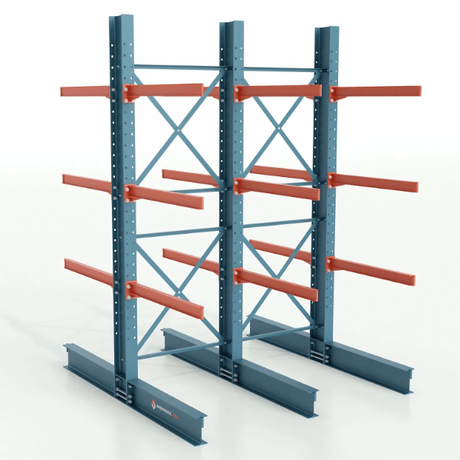

Double-sided cantilever racking is designed for center-aisle warehouse layouts where long materials must be loaded and accessed from both sides of the rack structure. These systems are commonly used for lumber, pipe, tubing, bar stock, sheet goods, extrusions, and industrial materials that exceed standard pallet dimensions.

Compared to perimeter-mounted storage layouts, double-sided cantilever systems increase linear storage density while maintaining direct access to individual loads. Warehouses evaluating broader cantilever racking systems often use double-sided configurations when floor space efficiency and bilateral material access are prioritized over wall-mounted layouts.

Double-sided cantilever racks should not be used in facilities where forklift turning space is limited, where racks must be installed against perimeter walls, or where unstable long-load handling creates excessive unsupported overhang risk.

Double-Sided Cantilever Racking for Long Material Storage

Main decision Use double-sided cantilever racking when long materials need center-aisle access from both sides.

Common mistake Selecting double-sided layouts without validating forklift turning radius, overhang, and aisle spacing.

Typical best answer Open-arm storage for lumber, pipe, steel tubing, bar stock, and mixed long-load inventory.

Best next step Confirm material lengths, bundle weights, arm spacing, forklift access, and slab conditions.

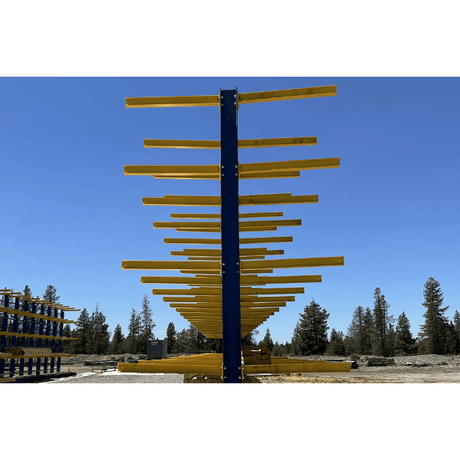

Double-sided cantilever racking systems are typically deployed in warehouse environments where long materials must be stored in accessible center-aisle rows rather than against perimeter walls.

This configuration allows both sides of the rack structure to be actively loaded and unloaded, increasing storage density while preserving direct access to individual SKUs, bundles, or material lengths.

Double-sided cantilever racking is best used when long-load storage needs two-sided forklift access and higher center-row storage density.

Typical Warehouse Applications

Facilities commonly using double-sided cantilever systems include industrial distribution centers, metal service centers, manufacturing warehouses, building material operations, and multi-SKU long-product storage environments.

Common facility types

Industrial distribution centers
Metal service centers
Manufacturing warehouses
Building material operations
Multi-SKU long-product storage environments

Typical stored materials

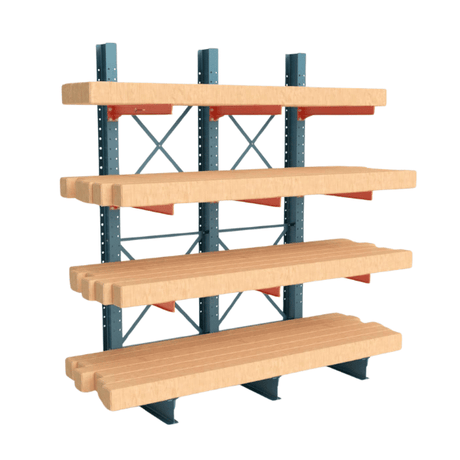

Lumber and engineered wood products
Steel tubing and bar stock
Pipe and aluminum extrusions
Sheet materials
Irregular long loads

When Double-Sided Cantilever Racking Is the Correct System

Double-sided cantilever racking performs best in open warehouse layouts where forklifts or long-load handling equipment require direct access from both sides of the storage row.

Operations handling variable material lengths, mixed bundle sizes, or partial-load picking often use cantilever systems because they eliminate front column obstruction and improve accessibility compared to pallet-based storage systems.

Use double-sided cantilever only where both sides of the rack row can be accessed safely.
Do not use it where wall-mounted storage or one-direction access is the actual layout requirement.
Do not assume pallet racking is suitable for long materials without validating load geometry and access method.

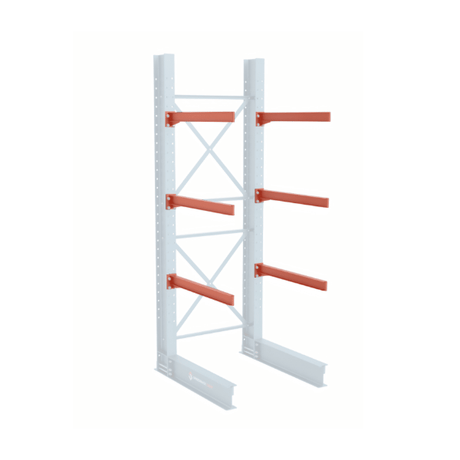

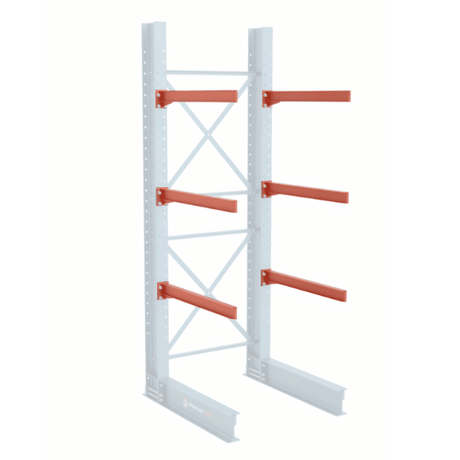

Facilities constrained by wall-mounted layouts or one-direction access requirements frequently compare single-sided cantilever racking instead.

Buyers evaluating broader warehouse storage strategies may also compare cantilever systems against conventional pallet racking systems when determining whether long materials should remain palletized or directly stored on open-arm structures.

Load Capacity and Structural Configuration Considerations

Cantilever rack capacity depends on multiple variables including arm length, column spacing, upright height, base design, material weight distribution, forklift approach direction, and load deflection characteristics.

Capacity variables

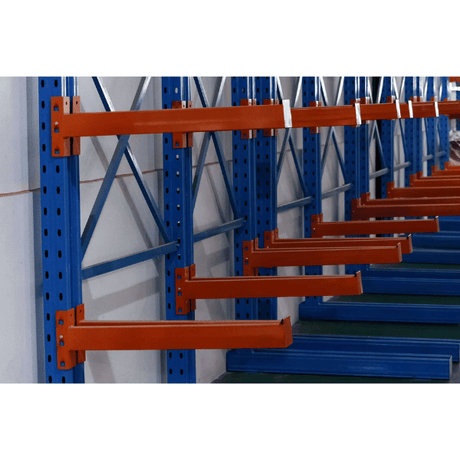

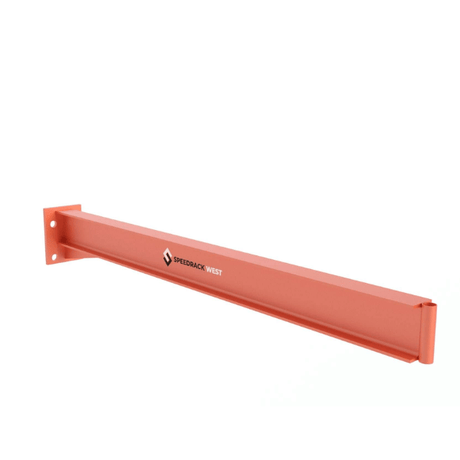

Arm length and arm spacing

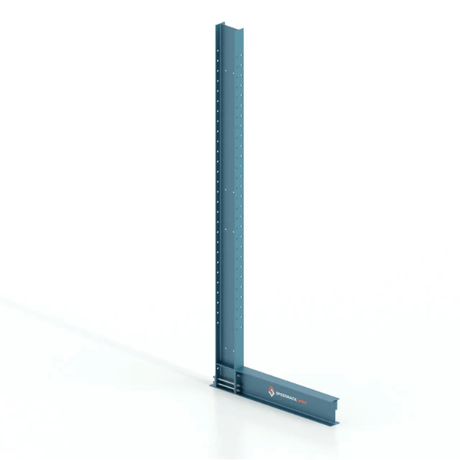

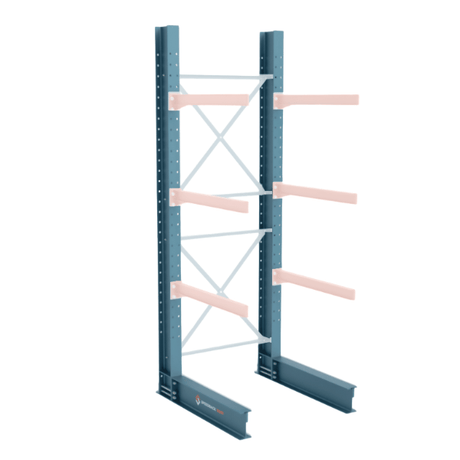

Column spacing and upright height

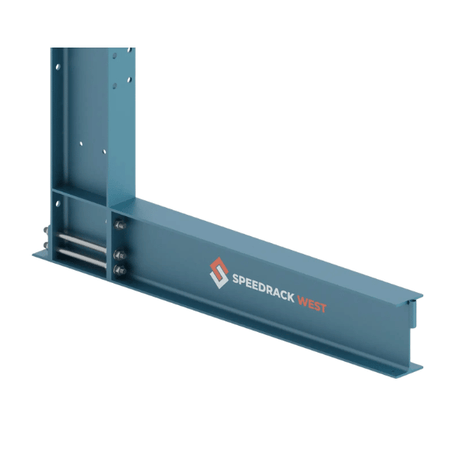

Base design
Material weight distribution
Unsupported overhang allowance

Configuration comparisons

Heavy-duty cantilever racking for dense steel products and oversized loads.
Medium-duty cantilever racking for PVC, trim, lightweight tubing, and wood products.

Published rack capacities should not be assumed interchangeable across cantilever configurations.

Final load ratings should always be based on actual material dimensions, supported load weight, arm spacing, unsupported overhang allowances, slab conditions, seismic requirements, and handling equipment characteristics.

Forklift Access and Material Handling Requirements

Double-sided cantilever systems require careful aisle planning because both sides of the rack are actively loaded and unloaded.

Inconsistent forklift traffic patterns increase rack arm damage risk.
Undersized turning clearances create impact loading and handling delays.
Unstable load geometry can cause long-term structural fatigue.
Excessive overhang should be evaluated before finalizing rack spacing.

Warehouses handling long or unstable materials often integrate compatible forklift attachments and fork extensions to improve load stability and reduce impact damage during loading and retrieval operations.

Facilities using oversized forklifts, side-loading equipment, or high-throughput handling environments should verify turning radius, aisle spacing, ceiling clearance, sprinkler interference, and operator visibility before finalizing rack spacing assumptions.

Warehouse System Integration

Double-sided cantilever layouts are commonly integrated into broader manufacturing warehouse systems where long-stock inventory must remain directly accessible for production staging, fabrication support, or rapid replenishment workflows.

In larger industrial facilities, cantilever systems frequently operate alongside material handling equipment, mezzanines, conveyor systems, and traditional storage infrastructure as part of a larger warehouse optimization strategy.

Organizations standardizing layouts across multiple facilities may additionally evaluate compatibility with broader enterprise warehouse equipment systems to simplify future expansion, operational consistency, and long-term scalability.

Before Requesting a Cantilever Racking Quote

Facilities evaluating double-sided cantilever racking should prepare material length ranges, maximum bundle weights, forklift specifications, ceiling clearances, slab conditions, aisle constraints, and expected growth requirements before requesting layouts or pricing.

Incorrect load geometry assumptions commonly cause redesigns.
Unsupported overhang errors increase inventory damage risk.
Poor forklift maneuverability assumptions create operational inefficiencies.
Missing slab or clearance data can delay layout validation.

Need Help Determining the Correct Cantilever Rack Configuration?

Speak with a warehouse equipment specialist before finalizing aisle spacing, load assumptions, forklift clearances, or cantilever arm configurations. Incorrect layout assumptions are one of the most common causes of long-term cantilever rack performance problems.

Frequently Asked Questions

Is double-sided cantilever racking better than single-sided cantilever racking?

Double-sided cantilever racking increases storage density in center-aisle layouts where both sides of the rack are actively accessed. Do not use it where racks must be installed against perimeter walls or where one-direction forklift access is required.

What materials are commonly stored on double-sided cantilever racks?

Double-sided cantilever racks are commonly used for lumber, pipe, tubing, bar stock, sheet goods, and long industrial materials. They should not be used for unstable loads with inconsistent weight distribution or excessive unsupported overhang.

Does double-sided cantilever racking require wider forklift aisles?

Double-sided cantilever layouts require careful aisle planning because both sides of the rack are actively loaded and unloaded. Undersized turning clearance is a common cause of forklift impact damage and arm failure.

When should heavy-duty cantilever racking be used instead?

Heavy-duty cantilever racking is typically used for dense steel products, structural materials, or high-capacity industrial loads. Medium-duty systems should not be used where load weight, deflection, or forklift impact exceeds structural design limits.
