Automated Sortation Conveyor Systems for High-Volume Distribution and Fulfillment Operations

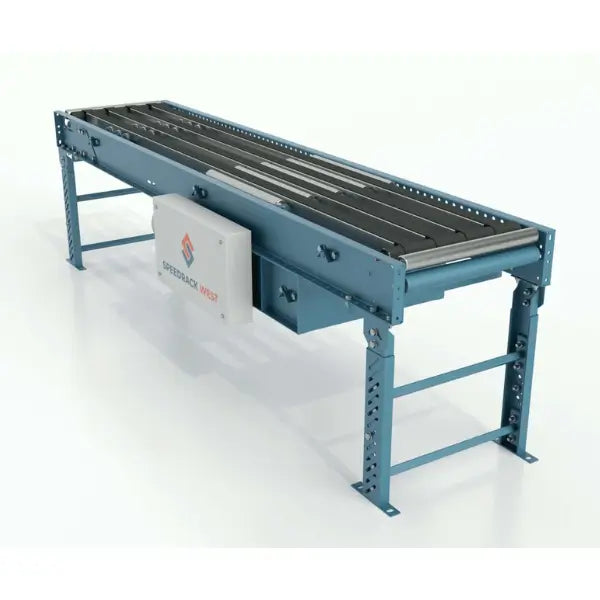

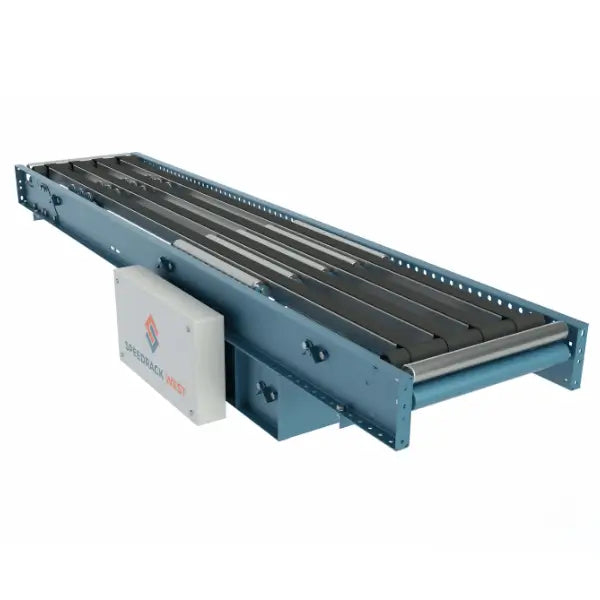

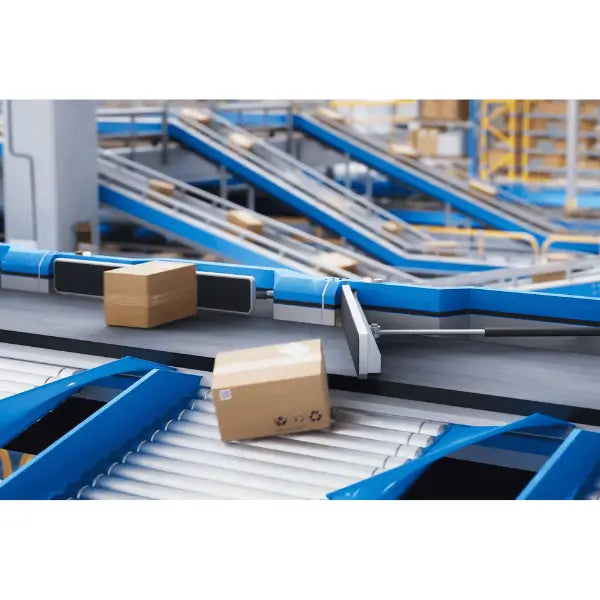

Sortation conveyor systems are designed to automatically identify, route, and divert products to designated destinations within a warehouse, distribution center, fulfillment operation, or manufacturing facility. These systems use scanning, sensing, and control technologies to direct cartons, totes, packages, and other items to the correct downstream process while maintaining continuous product flow.
Key Features
- Sortation speeds available from 60–180 FPM and up to 300 FPM depending on system configuration.
- Available load capacities of 60 lbs. or 100 lbs. per item.
- Diversion angles available in 30°, 45°, and 90° configurations.
- Available with or without guard rails on takeaway spur conveyors.
- Supports automated product identification and routing.
- Continuous product flow reduces manual handling and sorting labor.
- Available in linear and loop sortation system configurations.
- Compatible with barcode scanning and warehouse control technologies.
- Designed for high-volume fulfillment, distribution, and manufacturing environments.
- Custom-engineered layouts available for facility-specific requirements.
Common Applications for Sortation Conveyor Systems
Sortation conveyor systems are used in operations that require fast, accurate product routing and order processing.
- Ecommerce fulfillment centers
- Third-party logistics facilities
- Retail distribution centers
- Parcel and package handling operations
- Order consolidation systems
- Manufacturing distribution warehouses
- Cross-docking facilities
- Shipping and receiving operations
- Automated warehouse systems
- High-volume product distribution environments
Linear vs. Loop Sortation Systems

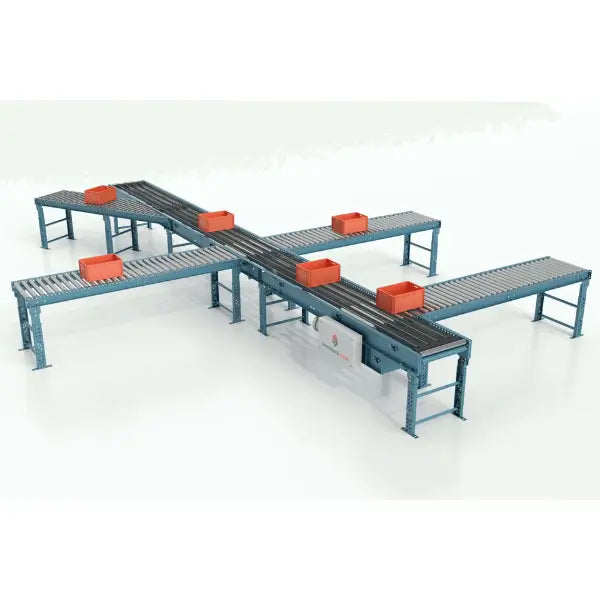

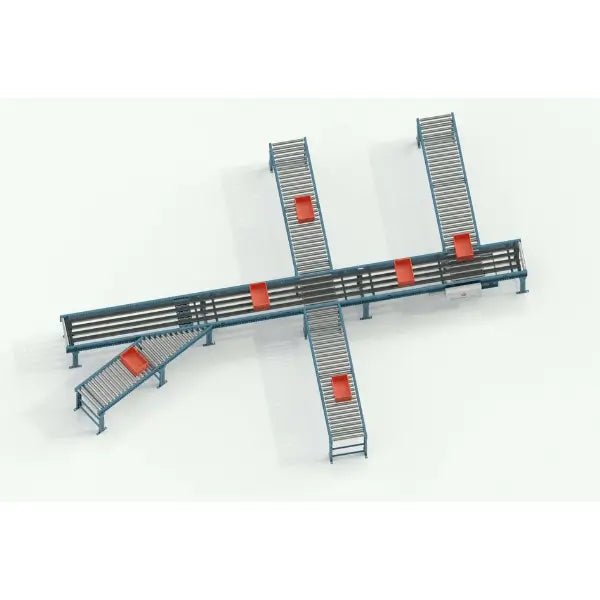

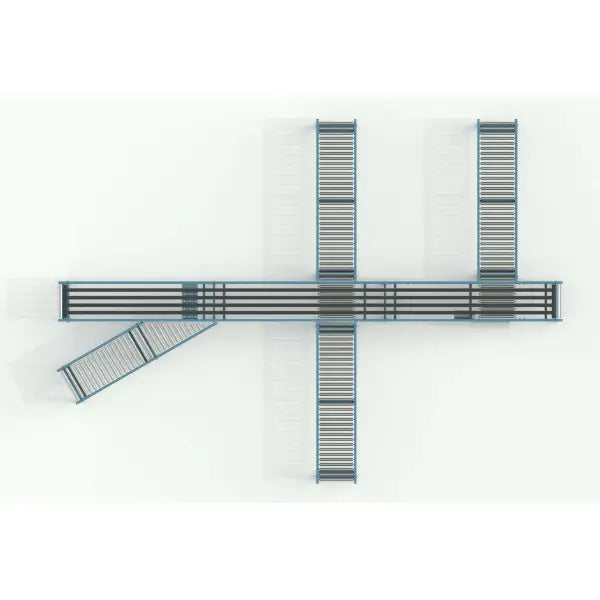

Linear Sortation Systems: Linear sorters, often referred to as shoe sorters, provide continuous product movement and sorting from a single induction location. Products are scanned, identified, and diverted to designated lanes without stopping conveyor flow.
Loop Sortation Systems: Loop sorters operate on a circular or closed-loop conveyor path and allow products to enter the system through multiple induction points. This design provides greater flexibility for larger facilities and operations requiring multiple product entry locations.
Operational Considerations Before Selecting a Sortation Conveyor System
Sortation systems deliver the greatest value in facilities processing high order volumes, multiple destinations, or large SKU counts. The correct system selection depends on throughput requirements, available floor space, product dimensions, item weights, induction requirements, software integration needs, and future expansion plans.
Specifications
| System Type | Automated Sortation Conveyor System |
| Sortation Configurations | Linear and loop sortation systems |
| Operating Speed | 60–180 FPM or up to 300 FPM depending on model |
| Capacity | 60 lbs. or 100 lbs. per item |
| Diversion Angles | 30°, 45°, and 90° |
| Guard Rails | Available with or without guard rails on takeaway spur conveyors |
| Product Identification | Scanner and software-controlled routing |
| System Design | Custom engineered based on application requirements |
Request a Sortation System Evaluation
Sortation conveyor systems are highly application-specific. System performance depends on product characteristics, throughput requirements, routing destinations, available floor space, and software integration needs. Speak with a warehouse equipment specialist to determine the most appropriate sortation configuration for your operation.
Frequently Asked Questions
When should a warehouse use a sortation conveyor system?
Use a sortation conveyor system when products must be automatically routed to multiple destinations at high volumes. Low-volume operations typically do not justify automated sortation equipment.
When should you avoid a sortation conveyor system?
Do not use a sortation conveyor system if products move to only one destination or sorting requirements are minimal. The system will add unnecessary complexity and cost.
What is the difference between a linear sorter and a loop sorter?
Linear sorters use a single induction point and continuous product flow. Loop sorters support multiple induction points and are better suited for more complex facility layouts.
Can sortation conveyor systems integrate with warehouse management software?
Yes. Sortation systems are commonly integrated with WMS, WCS, barcode scanners, and automated material handling controls. Integration requirements must be verified during system design.
Are sortation conveyor systems suitable for every warehouse?
No. Sortation systems are designed for facilities requiring automated routing and high throughput. Small operations with limited sorting requirements should consider simpler conveyor solutions.
