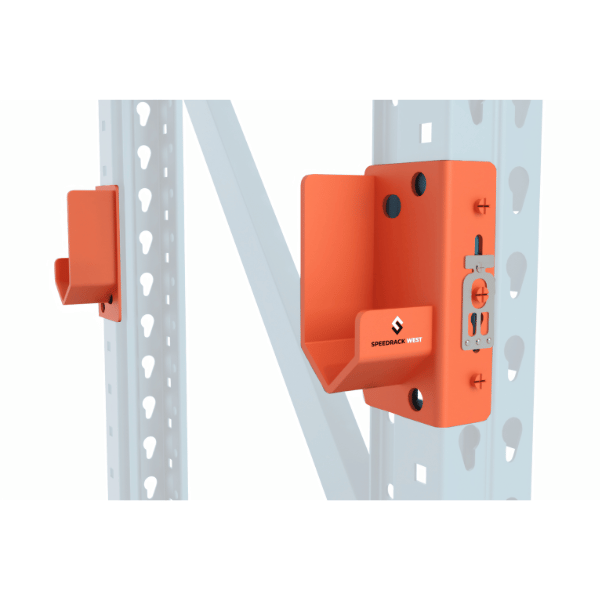

Reel Rack Axle Brackets for Pallet Rack Systems
Reel Rack Axle Brackets for Pallet Rack Systems is backordered and will ship as soon as it is back in stock.
Need Help Specifying This Equipment?
Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.
Description
Description
Convert Standard Pallet Racking Into Reel and Spool Storage Systems

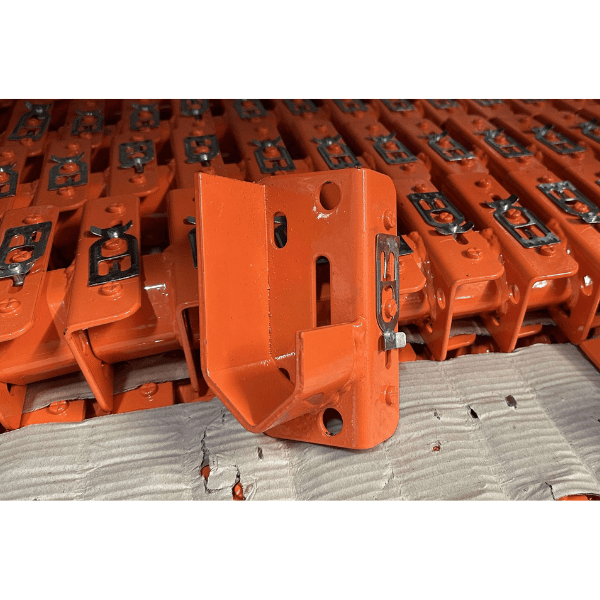

Reel Rack Axle Brackets are pallet rack accessories used to convert standard teardrop pallet racking into reel and spool storage systems for wire, cable, rope, hose, chain, and similar rolled materials.
These brackets attach directly to standard teardrop pallet rack uprights using beam-style connections, allowing warehouses and industrial facilities to add reel storage without replacing existing pallet rack infrastructure. Each bracket pair supports customer-supplied rods up to 2 inches in diameter and provides up to 2,000 lbs of reel support capacity.
Reel rack axle brackets are commonly used in electrical distribution warehouses, manufacturing facilities, industrial maintenance operations, MRO inventory storage areas, and 3PL environments that need organized reel dispensing while maintaining vertical storage efficiency.
How Reel Rack Axle Brackets Work

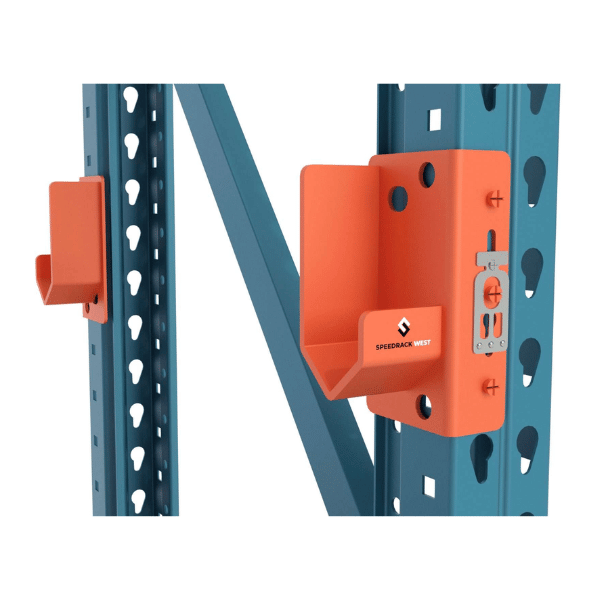

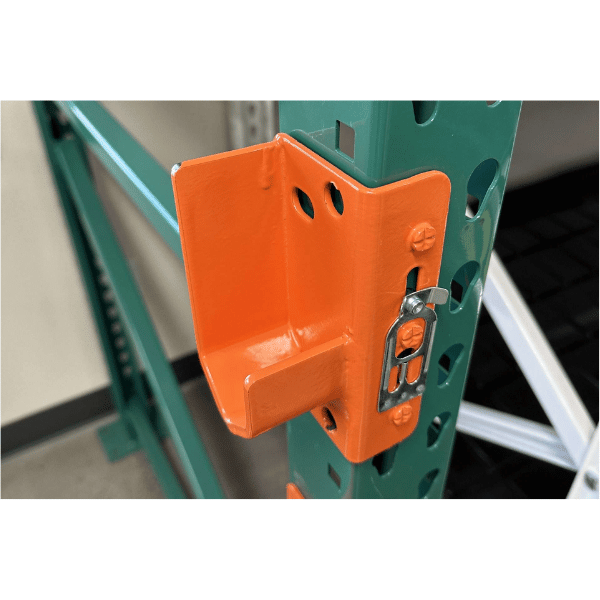

Each bracket pair installs onto pallet rack uprights similarly to a standard pallet rack beam connector. A steel rod or axle passes through the reel core and rests inside the bracket supports, allowing reels to rotate during manual dispensing operations.
This configuration allows existing pallet rack systems to function as scalable reel storage systems without requiring dedicated floor-mounted reel racks or custom welded structures.
Key Features
- Includes one pair of brackets (left and right)
- Compatible with standard teardrop pallet rack uprights
- 2,000 lb capacity per bracket pair
- Accepts customer-supplied rods up to 2 inches diameter
- Quick beam-style installation
- Converts existing pallet rack into reel storage systems
- Supports multi-level reel storage configurations
- Compact design minimizes lost rack space
- Designed for manual reel dispensing applications
Compatibility
- Compatible with standard teardrop pallet rack uprights
- Supports rods up to 2 inches diameter
- Compatible with multi-level pallet rack layouts
- Designed for manual reel payout operations
- Compatible with industrial spool and reel storage applications
- Not compatible with structural cantilever rack systems
- Not designed for boltless shelving systems
Reel Rack Axle Bracket Specifications
| Product Type | Reel Rack Axle Bracket Pair |
| Rack Compatibility | Standard Teardrop Pallet Rack |
| Capacity | 2,000 lbs per pair |
| Maximum Rod Diameter | 2 inches |
| Bracket Dimensions | 4" x 4 1/8" x 9 3/4" |
| Bracket Weight | Approximately 2 lbs each |
| Total Pair Weight | Approximately 4 lbs |
| Installation Method | Beam-style pallet rack attachment |
| Rod Included | No |
| Application Type | Manual Reel Dispensing and Storage |
Commonly Stored Materials
- Electrical wire reels
- Data cable spools
- Hydraulic hose reels
- Industrial rope
- Chain reels
- Welding wire
- Extension cable spools
- Industrial tubing reels
- Packaging strap rolls
Typical Use Cases
- Wire dispensing inside electrical distribution warehouses
- Cable spool storage for industrial assembly operations
- Hose reel storage in maintenance departments
- Chain reel organization in manufacturing facilities
- Industrial spool storage inside MRO inventory areas
- Multi-level reel storage in parts warehouses
- Material feed storage near production cells
Typical Buyer Fit
These reel rack brackets are commonly used by electrical distributors, industrial supply warehouses, manufacturers, maintenance departments, 3PL operations, and industrial facilities already operating teardrop pallet rack systems.
When to Use Reel Rack Axle Brackets
Use reel rack axle brackets when existing pallet rack systems need to support reel or spool storage without installing dedicated reel rack structures. These brackets work well for moderate-to-heavy industrial reels requiring organized manual dispensing and scalable vertical storage.
When Not to Use Reel Rack Axle Brackets
Do not use these brackets on damaged pallet rack uprights, incompatible rack systems, or overloaded rack structures. Facilities handling oversized utility reels, automated payout systems, or tension-controlled dispensing applications typically require engineered reel rack systems instead.
Not Ideal For
- Powered automated reel payout systems
- Oversized industrial utility reels
- Applications requiring active braking or tension-controlled payout
- Non-teardrop pallet rack systems without compatibility verification
- High-speed automated manufacturing payout operations
Important Operational Notes
- Customer must supply rod or axle
- Verify upright capacity before installation
- Combined reel and rod weight must remain within rack ratings
- Heavy reel loading equipment may be required
- Maintain sufficient reel spacing to prevent interference
- Installation should follow pallet rack manufacturer guidelines
- Reels should remain balanced during dispensing operations
📚 Frequently Asked Questions (FAQs)
Can reel rack axle brackets be used on any pallet rack?
Do reel rack axle brackets include the steel rod?
Can these brackets support heavy industrial cable reels?
Are reel rack axle brackets designed for powered payout systems?
Can multiple reel levels be installed vertically?
When should a dedicated reel rack system be used instead?
