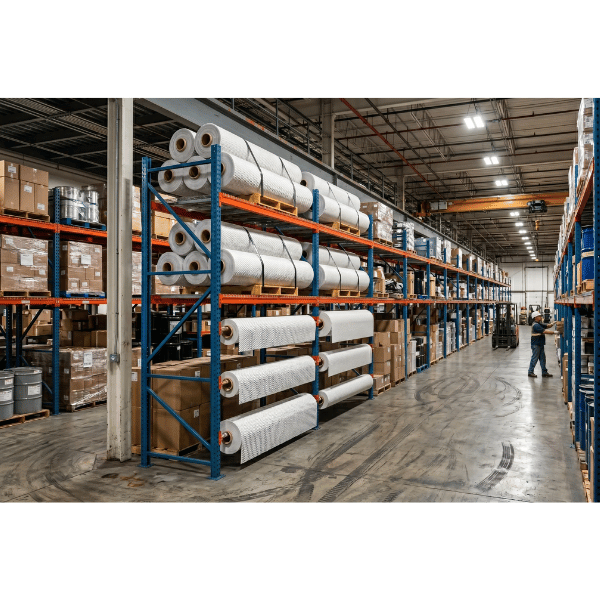

Integrated Reel Storage and Dispensing Systems Built from Standard Pallet Racking
Pallet Reel Rack Systems are engineered for industrial facilities that need organized reel storage integrated directly into standard warehouse pallet rack layouts. These systems use full-height teardrop pallet rack uprights combined with specialized reel brackets to store and dispense cable reels, wire spools, hose reels, tubing, rope, chain, and similar rolled materials.
Unlike standalone A-frame reel storage systems, Pallet Reel Racks maintain the same structural appearance and layout continuity as conventional pallet racking. This makes them ideal for electrical distributors, telecom warehouses, utility facilities, industrial maintenance operations, and warehouse environments standardizing around pallet rack infrastructure.
The system is fully configurable. Select frame height, rack depth, system width, reel levels, and bracket style based on reel diameter, reel weight, dispensing requirements, and warehouse layout constraints. Additional bays can be added to create continuous reel storage rows as inventory requirements grow.
What Is a Pallet Reel Rack?

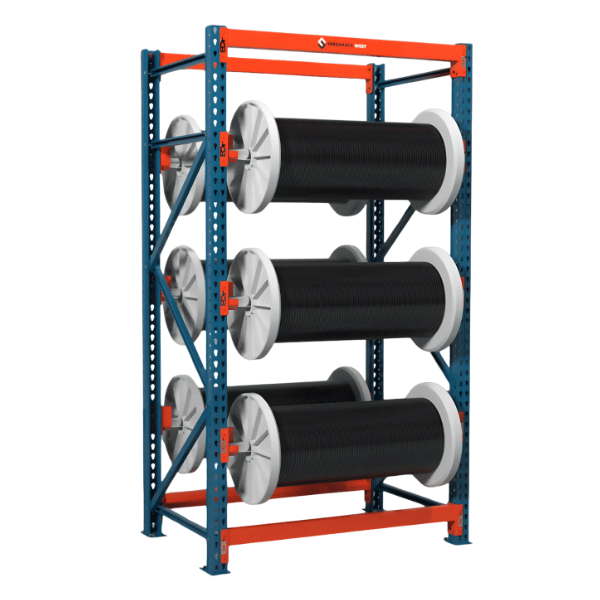

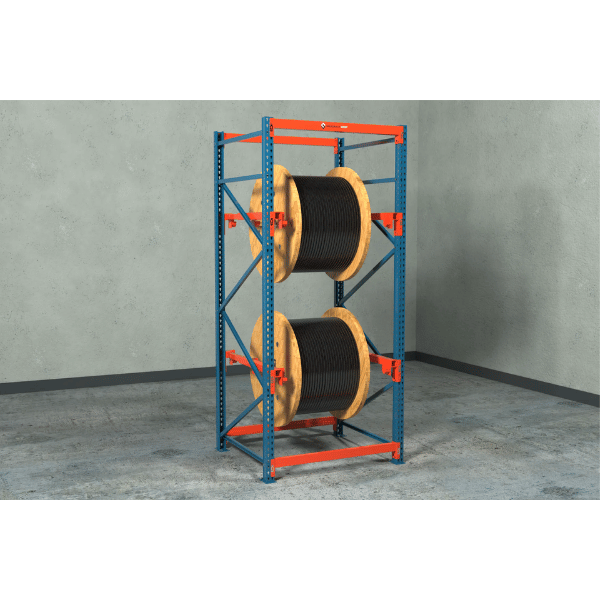

A Pallet Reel Rack is a reel storage and dispensing system constructed from standard pallet rack upright frames, structural pallet rack beams, and reel support brackets that hold customer-supplied rods or axles carrying reels.

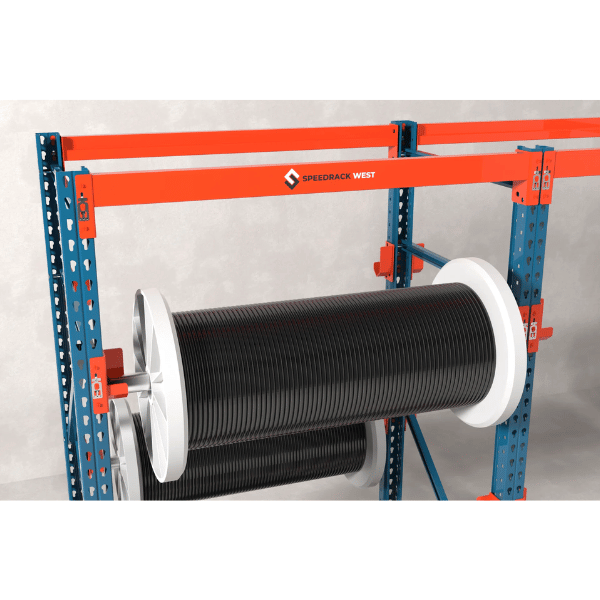

Instead of storing palletized inventory on horizontal pallet beams, the system uses reel brackets installed at selected elevations to support rods carrying cable reels, hose reels, wire spools, and similar rolled products.
Each system includes:

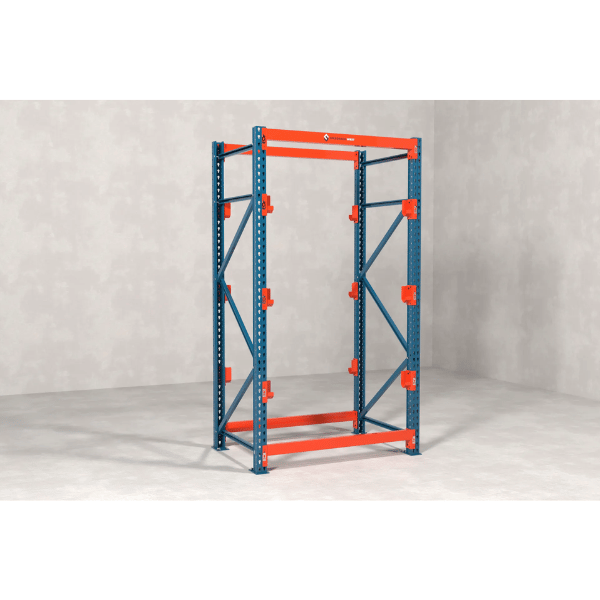

- Industrial teardrop-style pallet rack uprights
- Structural top and bottom beam levels for rack stability
- Configurable reel bracket levels

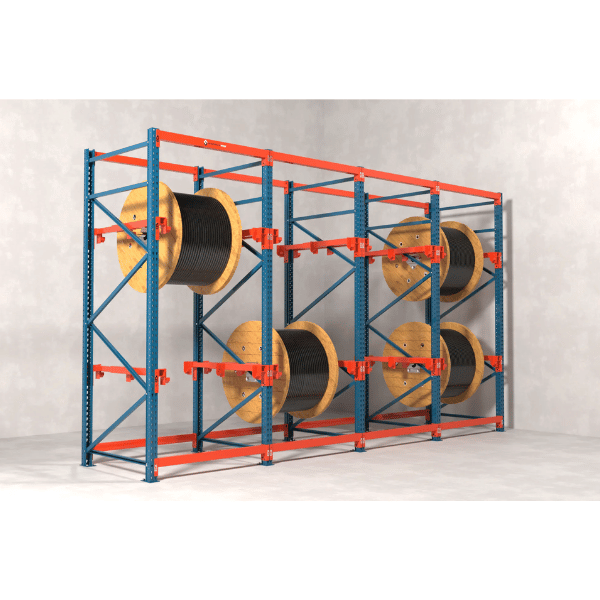

- Expandable multi-bay rack configurations
- Support for customer-supplied rods up to 2" diameter
- Anchors, drop pins, and column guards
This configuration allows reel storage systems to integrate directly into existing warehouse rack rows while maintaining organized reel dispensing and vertical storage efficiency.
Key Features of Pallet Reel Rack Systems
- Built from standard pallet rack uprights with structural steel support beams
- Configurable reel storage levels and bay widths
- Expandable multi-bay layout for continuous reel storage rows
- Available with standard or adjustable reel bracket systems
- Compatible with customer-supplied rods up to 2" diameter
- Teardrop pallet rack compatibility for integrated warehouse layouts
- Industrial steel structural rack construction
- Designed for organized reel storage and controlled dispensing
- Anchoring hardware and safety accessories included

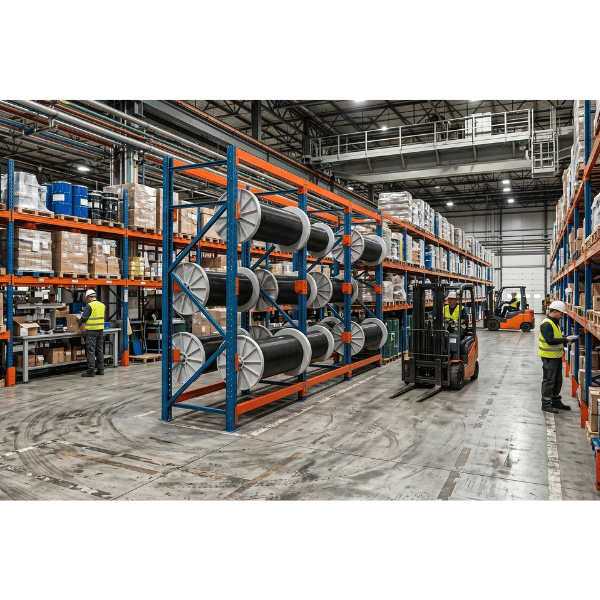

Best-Fit Warehouse Operations
Pallet Reel Rack systems perform best in facilities requiring organized reel storage integrated into pallet rack infrastructure.
- Electrical supply warehouses
- Cable and wire distribution centers
- Telecom and low-voltage inventory operations
- Industrial hose and tubing distribution
- Utility maintenance warehouses
- MRO inventory storage operations
- Manufacturing support inventory systems
- Facilities standardizing around pallet rack layouts
Poor-Fit Applications and Operational Limitations
Pallet Reel Rack systems are not ideal for mobile storage operations, outdoor environments, powered reel dispensing systems, or applications involving highly inconsistent reel dimensions.
These systems also perform poorly when oversized industrial reels exceed bracket capacities, rod deflection limits, or upright load assumptions. Facilities requiring enclosed reel protection, automated dispensing equipment, or portable reel carts should evaluate alternative reel handling systems.
Do not use Pallet Reel Rack systems where floor conditions cannot support anchored pallet rack installations.
What Can Be Stored on a Pallet Reel Rack?
These systems are designed for products stored and dispensed from rods or axles.
- Electrical cable reels
- THHN and building wire spools
- Fiber optic reels
- Telecom and coaxial cable reels
- Hydraulic hose reels
- Industrial tubing spools
- Flexible conduit reels

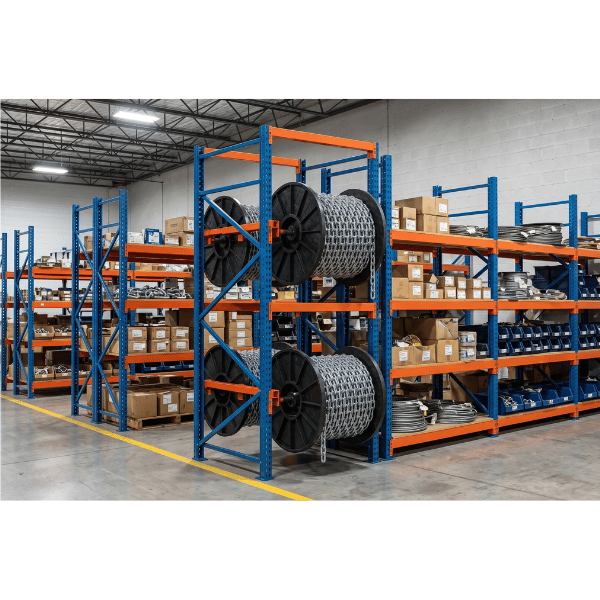

- Rope and chain spools
- Strapping and webbing rolls
- Light-duty aluminum and metal coils
Pallet Reel Rack vs A-Frame Reel Rack
Both systems perform the same core reel storage function. The primary difference is the structural layout.
Pallet Reel Rack
- Uses vertical pallet rack uprights
- Integrates directly into pallet rack rows
- Maintains warehouse rack appearance consistency
- Preferred for integrated warehouse storage layouts
A-Frame Reel Rack
- Uses angled A-frame uprights
- Provides different reel visibility geometry
- Often selected for standalone reel storage areas
- Can also support expandable multi-bay configurations
The choice between systems is typically based on warehouse layout preference, visual integration requirements, and operational workflow rather than storage capacity differences.
Pallet Reel Rack vs Floor-Staged Reels
Floor-staged reels consume aisle space, reduce inventory organization, and complicate material handling access. Pallet Reel Rack systems centralize reel inventory vertically while improving storage density and organized reel dispensing.
Facilities handling multiple reel sizes or high reel counts typically gain better inventory control and improved warehouse organization using structured reel rack systems instead of floor storage.
Pallet Reel Rack vs Static Shelving
Static shelving systems are not designed to support suspended reel loads or controlled reel dispensing. Pallet Reel Rack systems are engineered specifically for rod-supported reel storage using structural rack components and dedicated reel brackets.
Use static shelving only for boxed inventory or loose-item storage. Do not suspend reels from conventional shelving structures not designed for reel loading.
Compatible Material Handling Equipment
- Counterbalance forklifts
- Reach trucks
- Order pickers
- Manual reel handling carts
- Basic reel dispensing operations
- Industrial material handling workflows
Final aisle width requirements should be verified against reel diameter, forklift turning radius, and dispensing access requirements.
Data Required Before Specifying a Pallet Reel Rack
Proper system configuration requires operational and dimensional input before quoting or layout approval.
- Reel diameter
- Reel width
- Maximum reel weight
- Rod diameter requirements
- Rod span requirements
- Ceiling clear height
- Forklift type and aisle width
- Required reel levels
- Future expansion expectations
- Dispensing workflow requirements
Common Reel Storage Failure Scenarios
- Undersized rods bending under reel loads
- Unanchored frames shifting during dispensing operations
- Excessive reel overhang blocking forklift aisles
- Inconsistent reel diameters reducing usable storage space
- Overloaded bracket levels exceeding structural assumptions
- Improper rod length causing reel instability
- Using reel systems for unsupported coil storage applications
Engineering and Installation Considerations
Pallet Reel Rack systems require anchoring into suitable concrete flooring using the included anchor hardware. Final layout approval should verify slab condition, anchoring suitability, reel loading assumptions, rod deflection limits, and aisle access requirements.
Large reel diameters, high reel weights, or unusual dispensing configurations may require additional engineering review before installation.
Final system loading, anchoring, and facility compatibility should always be verified before use.
Standard Reel Bracket Specifications
| Component | Specification |
|---|---|

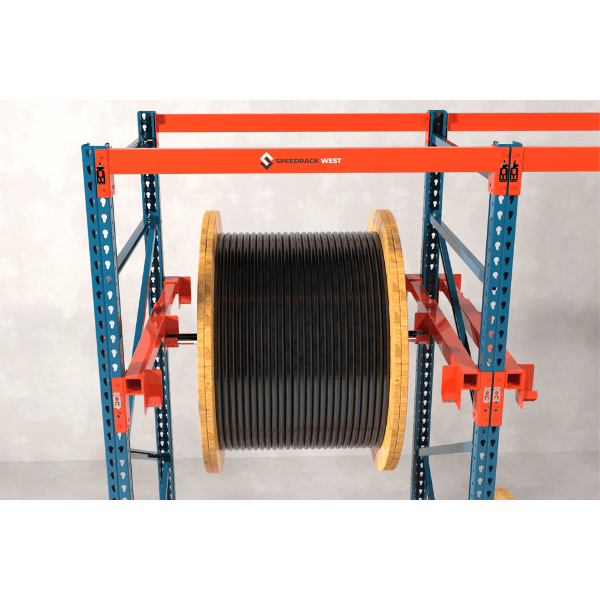

| Standard Reel Brackets | 2,000 lb capacity per pair; supports rods up to 2" diameter; compatible with teardrop pallet rack |

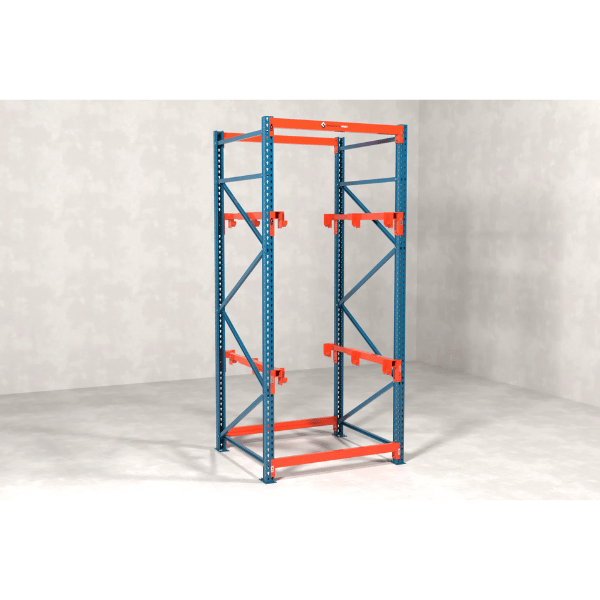

| Adjustable Reel Brackets | 3,000 lb total capacity per level; three rod positions (left, center, right) |
| Upright Heights | 96", 120", 144", 192" |
| Frame Depths | 36", 42", 48" |
| Structural Material | Industrial steel teardrop-style pallet rack uprights |
| Structural Beams | Top and bottom beam levels included for stability |
| Rod Compatibility | Customer-supplied rods up to 2" diameter |
| Included Safety Accessories | Anchors, column guards, and drop pins included |
Important Product Exclusions
Rods / Axles Not Included
Customer-supplied rods or axles are required. Rod diameter must not exceed 2" and rod length must match selected rack width.
Wire Decking Not Included
Wire decking is not included with the system. Separate wire decking may be added if upper levels will also be used for loose-item storage.
Use Pallet Reel Racks Only If
- Reel inventory remains relatively stationary
- Integrated pallet rack appearance is preferred
- Anchored rack installation is acceptable
- Warehouse layouts already utilize pallet rack systems
- Manual or basic reel dispensing workflows are sufficient
- Reel dimensions remain operationally consistent
Speak With a Reel Storage System Specialist
Request a pallet reel rack configuration review to verify reel weights, rod sizing, rack dimensions, aisle requirements, and dispensing compatibility before specifying your system.
