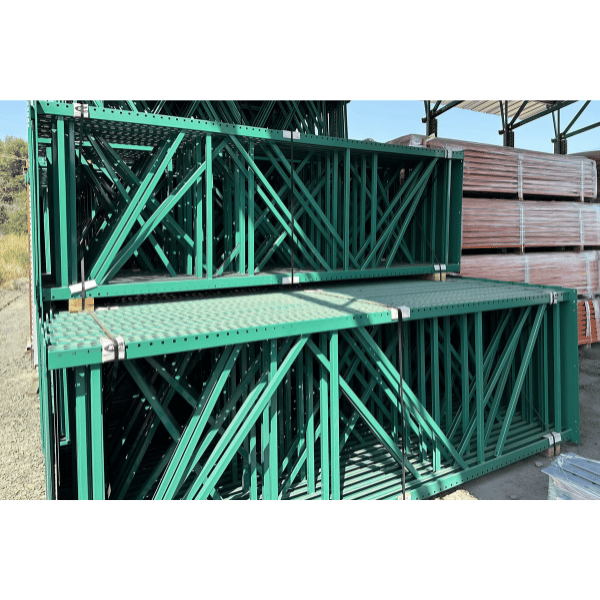

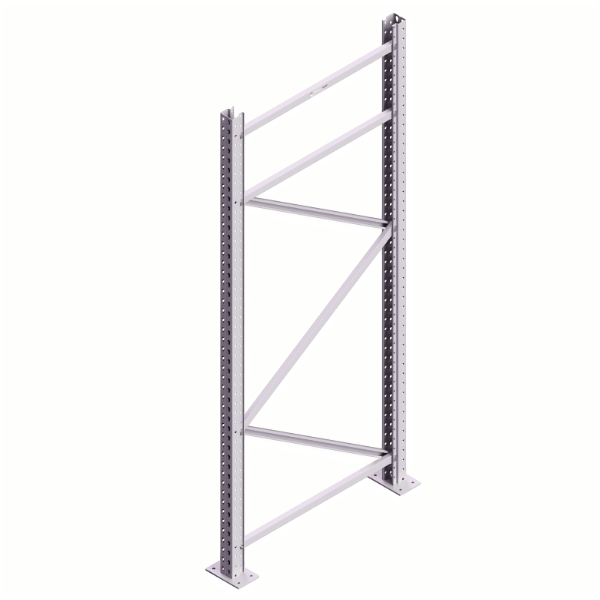

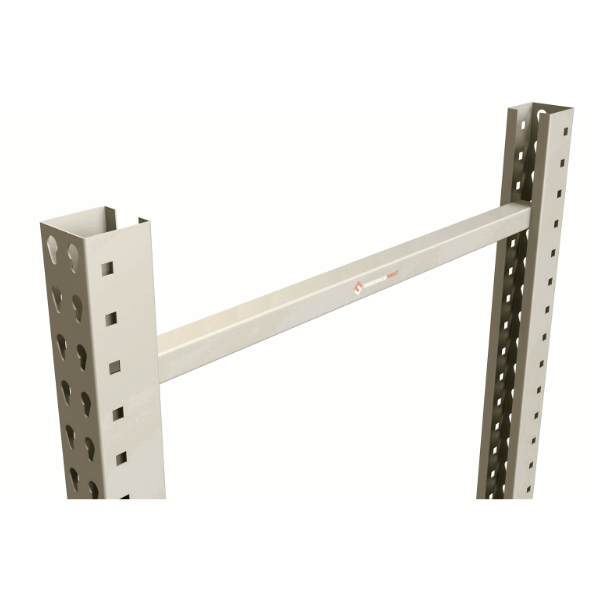

96" Pallet Racking Upright Frames – 14,000 lb Capacity

96" Pallet Racking Upright Frames for Standard Warehouse Storage

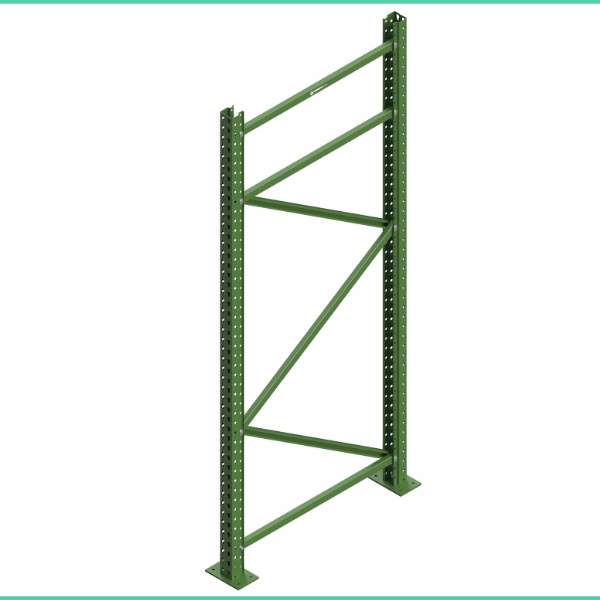

These 96" pallet racking upright frames are designed for standard warehouse storage applications requiring reliable medium-duty capacity. Manufactured from high-strength 55,000 PSI steel with a teardrop connection system, they support up to 14,000 lbs per bay under typical configurations. This frame height is commonly used in facilities with limited vertical clearance or standard forklift reach. It is not suitable for high-rise, high-density, or engineered racking systems requiring greater structural capacity.

Configuration Options

Frame Depth

• 24"
• 36"
• 42"
• 44"
• 48"

Selection guidance: Frame depth must match pallet dimensions. Standard 48" deep pallets typically require 42" frames to allow proper pallet overhang. Incorrect depth selection will reduce storage efficiency or create unsafe loading conditions.

Key Specifications

*Capacity is based on 48" beam spacing with uniformly distributed static loads. Final capacity varies by configuration and must be verified for the specific rack layout.

Available Variants

System Compatibility

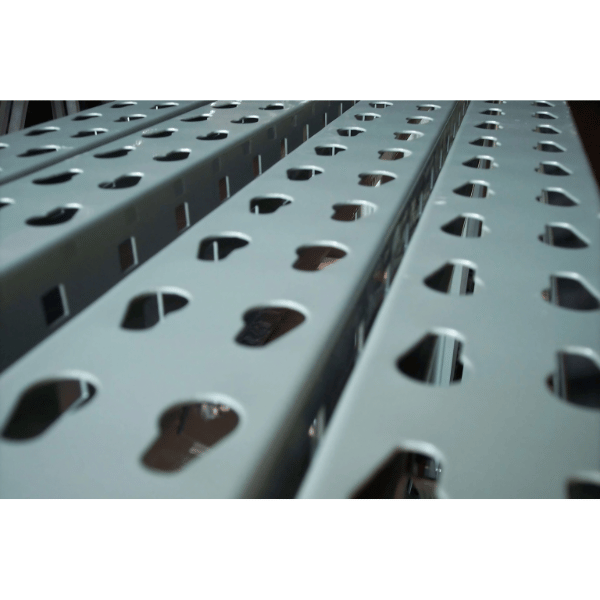

These upright frames use a standard teardrop connection system, making them compatible with most industry-standard teardrop pallet rack beams, including both new-style and shaved-rivet beam connectors. They are suitable for expanding or replacing components in existing teardrop pallet racking systems when dimensions and load requirements match.

How the System Works

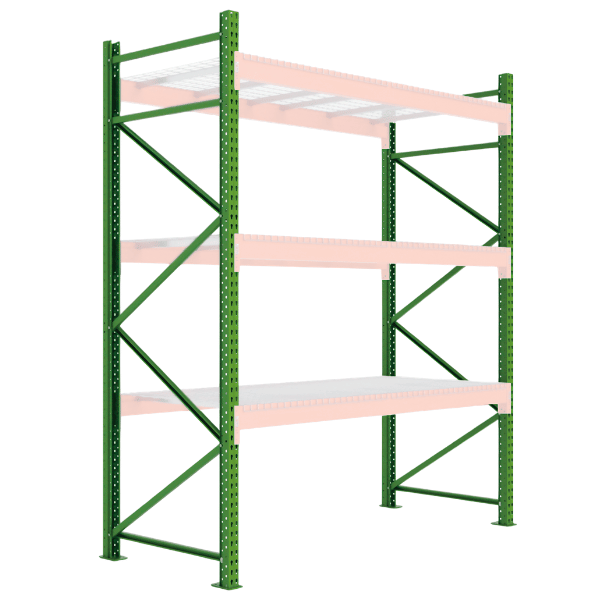

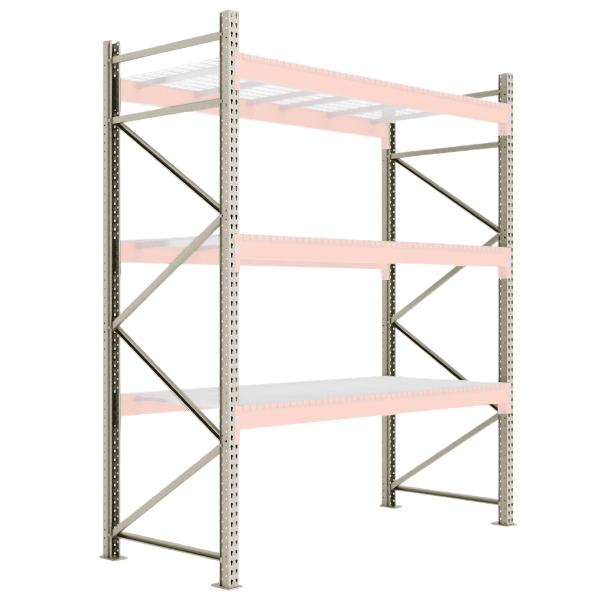

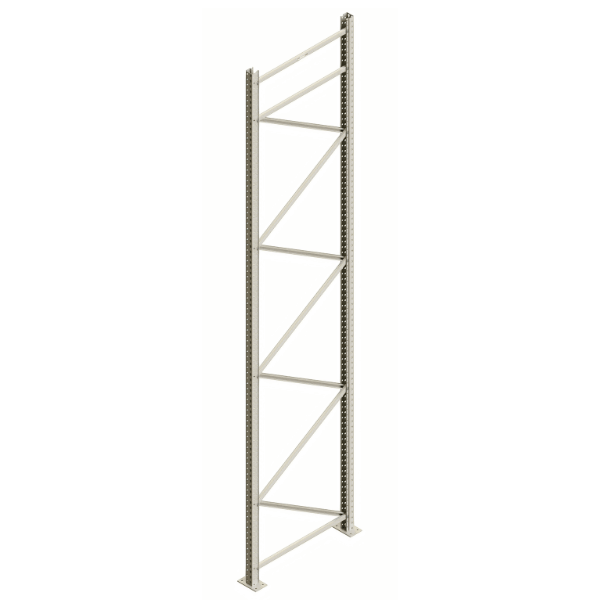

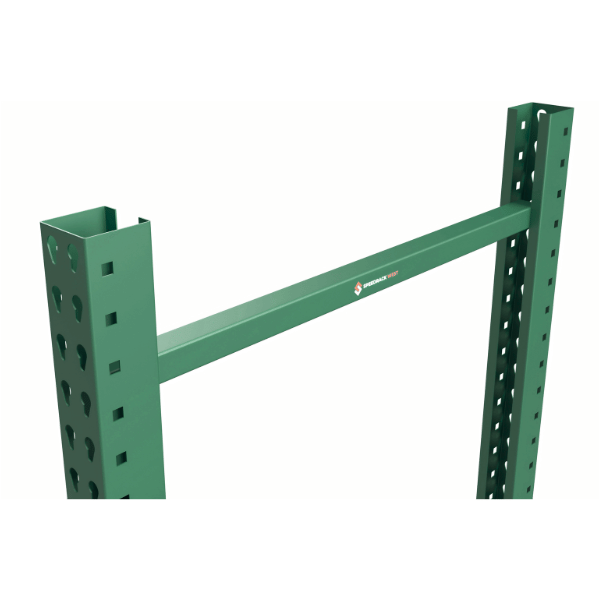

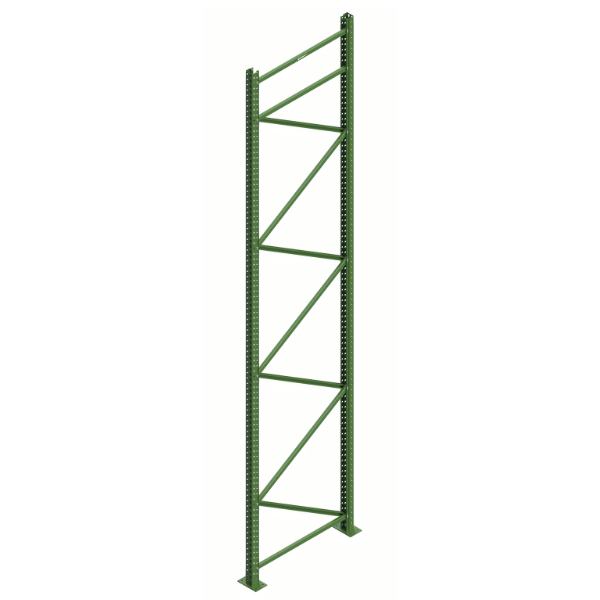

Upright frames form the vertical structure of a pallet racking system. Horizontal beams connect to the frame columns using teardrop connectors, creating adjustable storage levels for palletized inventory.

• Pallet loads transfer to the rack beams.
• Rack beams transfer load into the upright frames.
• Upright frames transfer load through the base plates into the anchored concrete slab.

Beam levels can be adjusted in 2" increments to accommodate different pallet heights, SKU profiles, and storage layouts.

When to Use This Frame

• Use when warehouse ceiling height limits vertical storage expansion.
• Use when forklift reach is limited to low or mid-height operations.

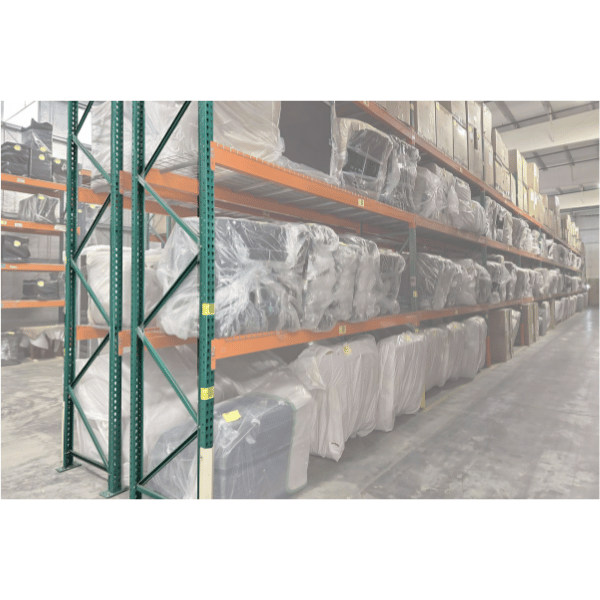

• Use for standard selective pallet racking layouts.
• Use when moderate capacity is required without over-engineering the system.
• Use when expanding or modifying an existing compatible teardrop system.

When Not to Use This Frame

• Do not use for high-density systems such as push-back, drive-in, or pallet flow racking.
• Do not use for high-rise or multi-level rack systems.
• Do not use when load requirements exceed 14,000 lbs per bay.
• Do not use without engineering review where seismic regulations apply.
• Do not use for automation or specialized storage systems without system-level design review.

Capacity and Load Considerations

Frame capacity is not fixed across all layouts. It depends on beam spacing, number of beam levels, load distribution, anchoring conditions, and concrete slab thickness.

Adding more beam levels can improve structural support by reducing unsupported frame height between connection points. Wider vertical beam spacing can reduce usable frame capacity and should be reviewed before installation.

Do not assume maximum capacity applies to every configuration. Load ratings must be verified for the specific rack layout, pallet weights, and facility conditions.

Height, Clearance, and Layout Constraints

Frame height must be evaluated against ceiling height, fire sprinkler clearance, forklift lift height, and required safety clearance above the top pallet position.

Insufficient clearance will limit usable storage height, create operational hazards, and increase the risk of non-compliance with fire protection requirements.

Base Plate and Anchoring

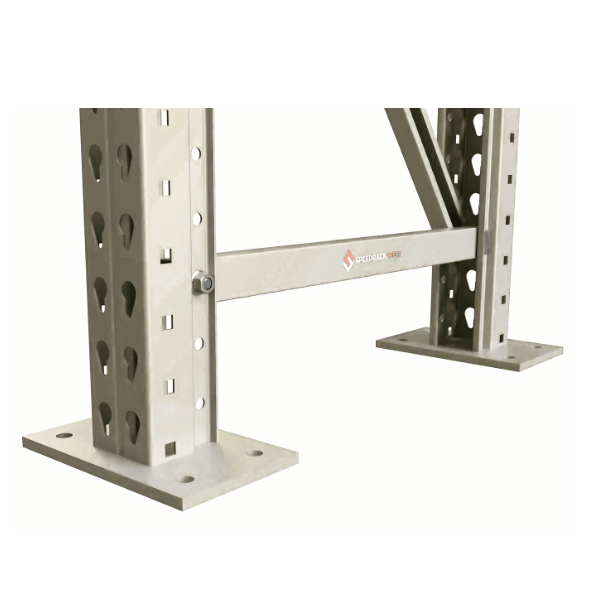

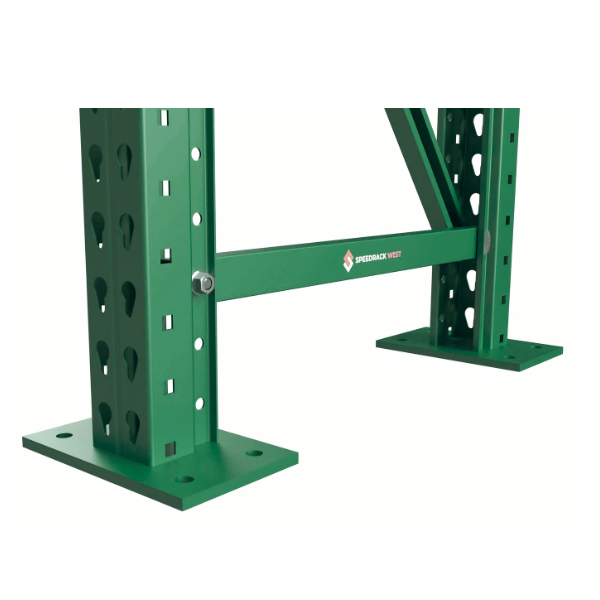

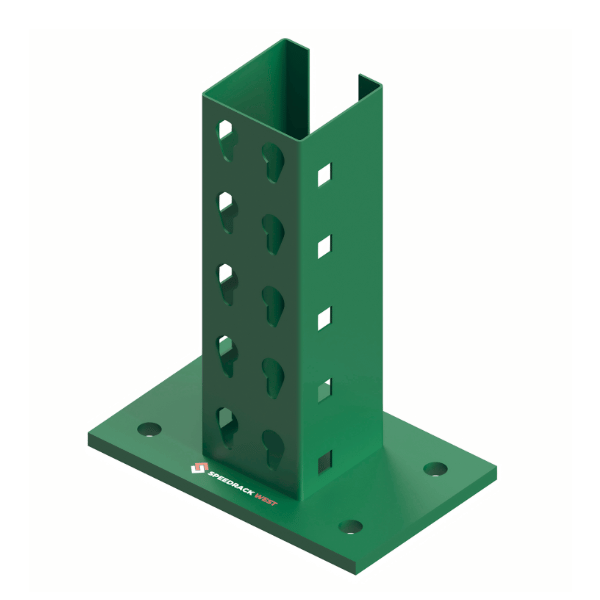

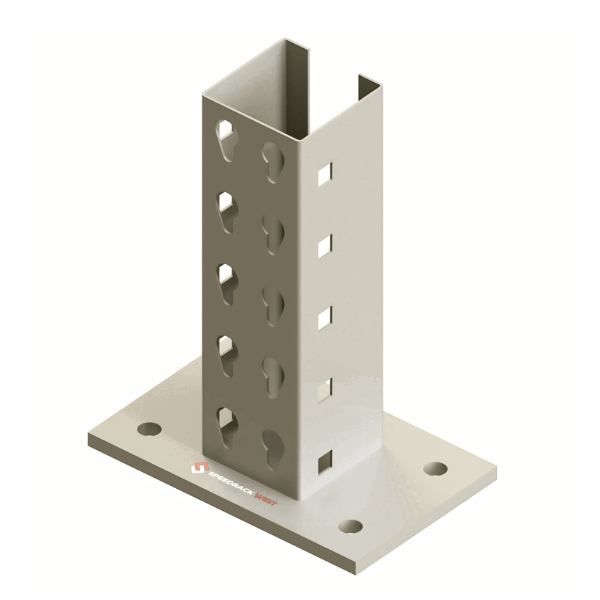

This frame includes a 4" x 6" base plate designed for standard anchoring conditions. System stability depends on proper anchors, slab thickness, slab condition, and load distribution.

Improper anchoring reduces system stability and can lead to structural failure under load.

Seismic and Compliance Considerations

Seismic zone requirements affect anchor specifications, frame capacity ratings, and system design constraints. These frames are manufactured to RMI standards, but seismic calculations are required for regulated installations and permit-required projects.

Final rack design should be reviewed against local code, slab conditions, pallet loads, and facility location before installation.

Failure Risks and Misapplication

• Frame overloading can lead to structural failure.
• Incorrect frame depth can create unsafe pallet overhang.
• Improper anchoring can reduce stability under load.
• Incorrect beam spacing can reduce usable capacity.
• Using incompatible beams can create unsafe connections.

Custom and Expansion Options

• Additional depths are available for non-standard pallet sizes.
• Higher-capacity frames are available for heavier storage requirements.
• Welded frame bracing is available for specialized applications.
• Custom configurations are available based on project requirements.

Request a System Layout and Quote

For an accurate recommendation, provide pallet dimensions, pallet weight, required pallet positions, ceiling height, forklift type, forklift lift height, and facility location for seismic review.
