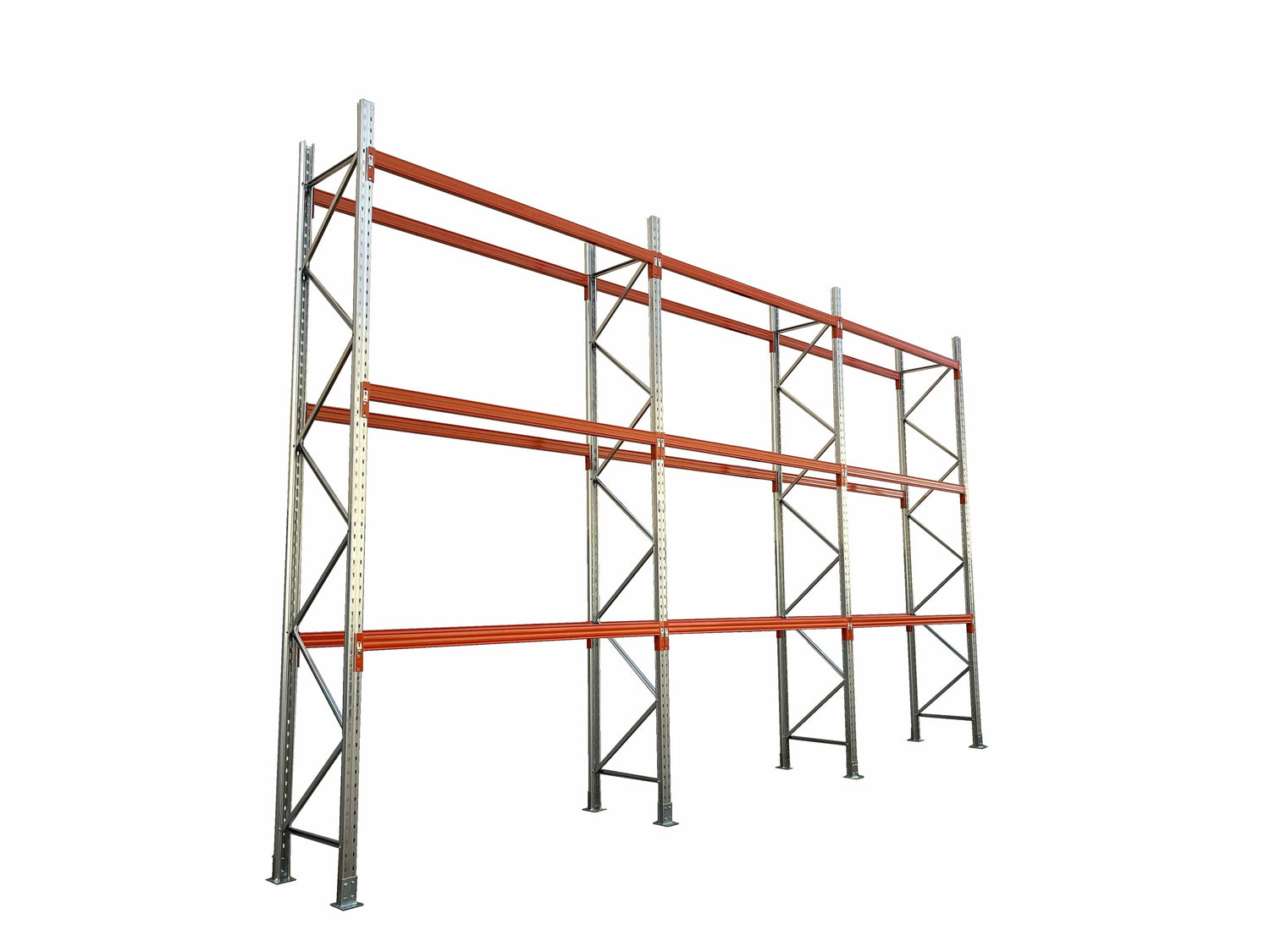

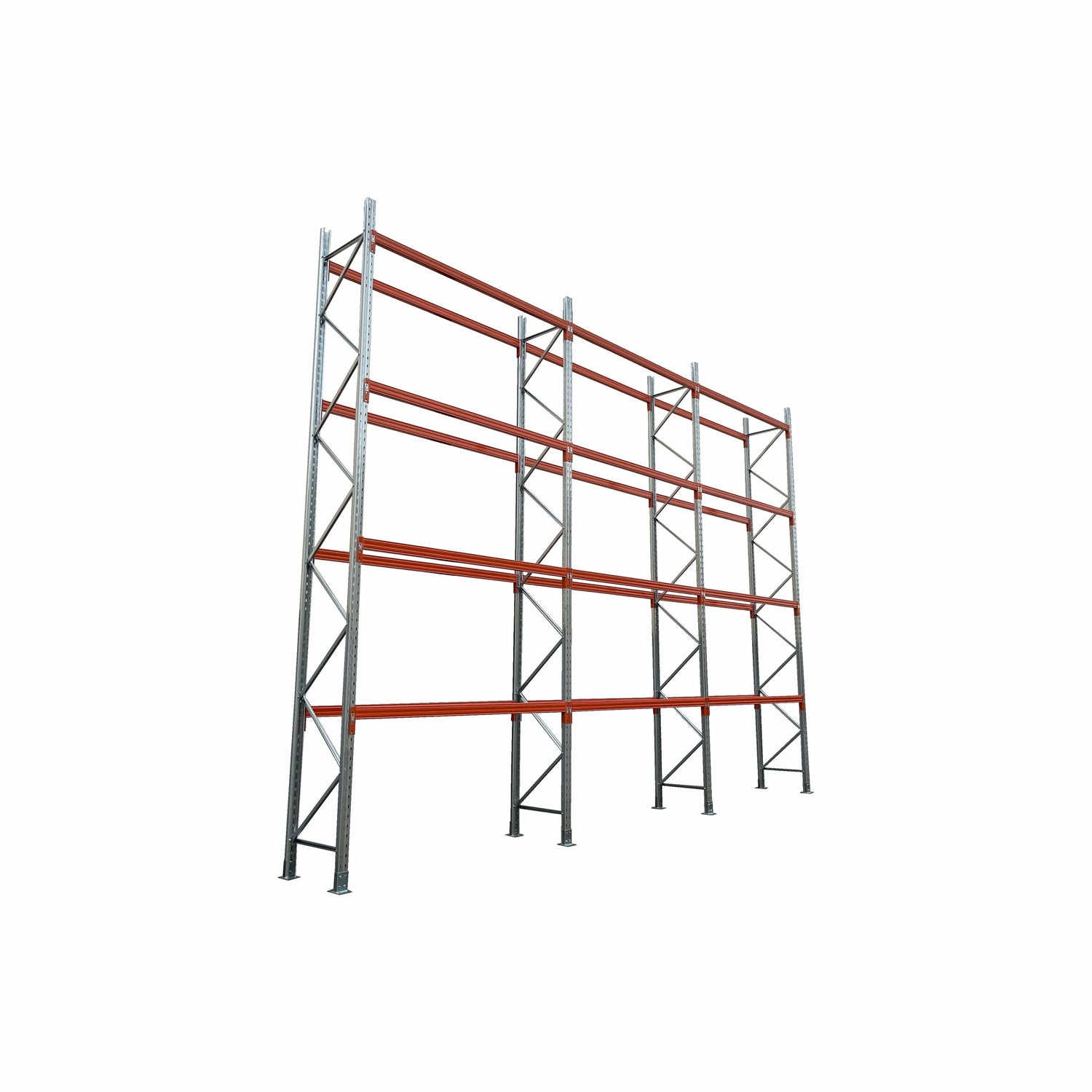

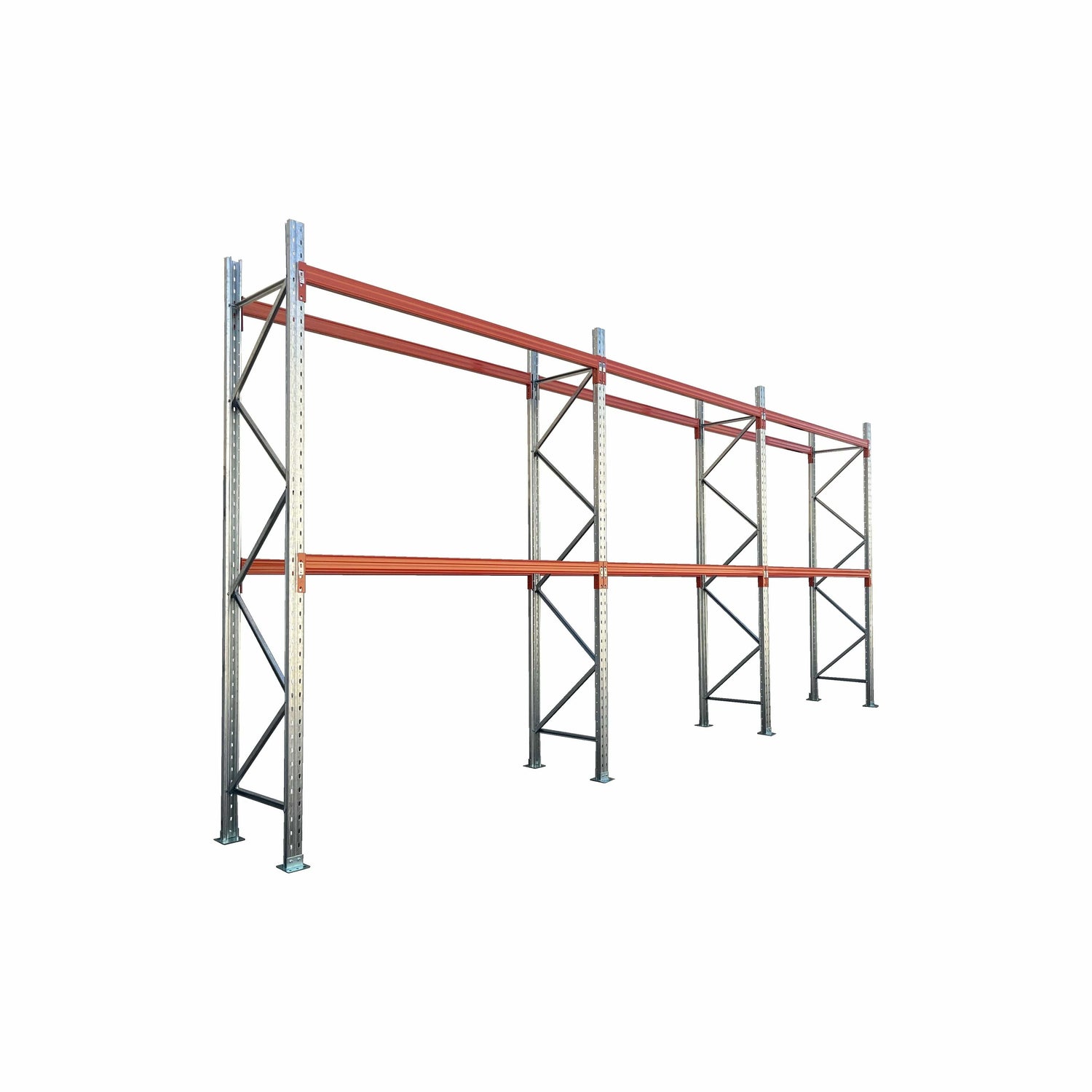

Pallet Racking Three Bay Package
Highlight title
Text to highlight a key feature of your product
Description
Description
Introducing our high-capacity three-bay Pallet Racking system, engineered to optimise storage space and enhance efficiency in your warehouse or industrial setting. Crafted with durability and reliability in mind, this system offers a robust solution for your storage needs.
Each bay boasts an impressive width of 8161mm or 8617mm, providing expansive storage capacity without compromising on stability. With a depth of 840mm, this system accommodates various pallet sizes and goods, ensuring versatility to meet your requirements.
Featuring two to four levels per bay, each with a sturdy 2- 2.6 tonne Uniformly Distributed Load (UDL) rating, you can trust in the strength and durability of this racking system to securely hold your inventory. Whether you're storing heavy-duty equipment or lightweight goods, our Pallet Racking system delivers reliable performance.
This comprehensive package offers extensive coverage to optimise your storage space and streamline operations. From pallets to boxes, this system provides flexible storage solutions to suit your needs.
Complete with all necessary components for easy DIY assembly, including base plates and levelling plates, setting up your Pallet Racking system is a hassle-free experience. Upgrade your storage capabilities with our three-bay Pallet Racking system, designed to enhance efficiency and maximise storage space in your facility.
What’s Included
- 4 x Frames: Each galvanised 840mm deep frame comes fully assembled and Dexion compatible, ready to be installed. These sturdy frames provide the foundation for your pallet racking system, ensuring stability and durability.
- Includes Uprights, Bracing, Nuts and bolts, Base Plates, Levelling Plates, and Screw Bolt Floor Fixings.
- Beams: Measuring 2591mm x 100mm (2000kg UDL) or 2743mm x 120mm (2600kg UDL), each with two safety clips. These beams are designed to support your pallets and provide maximum weight-bearing capacity. With four beams included, you'll have ample support for your storage needs.
- 2438mm, 3048mm and 3658mm high include 12 x Beams

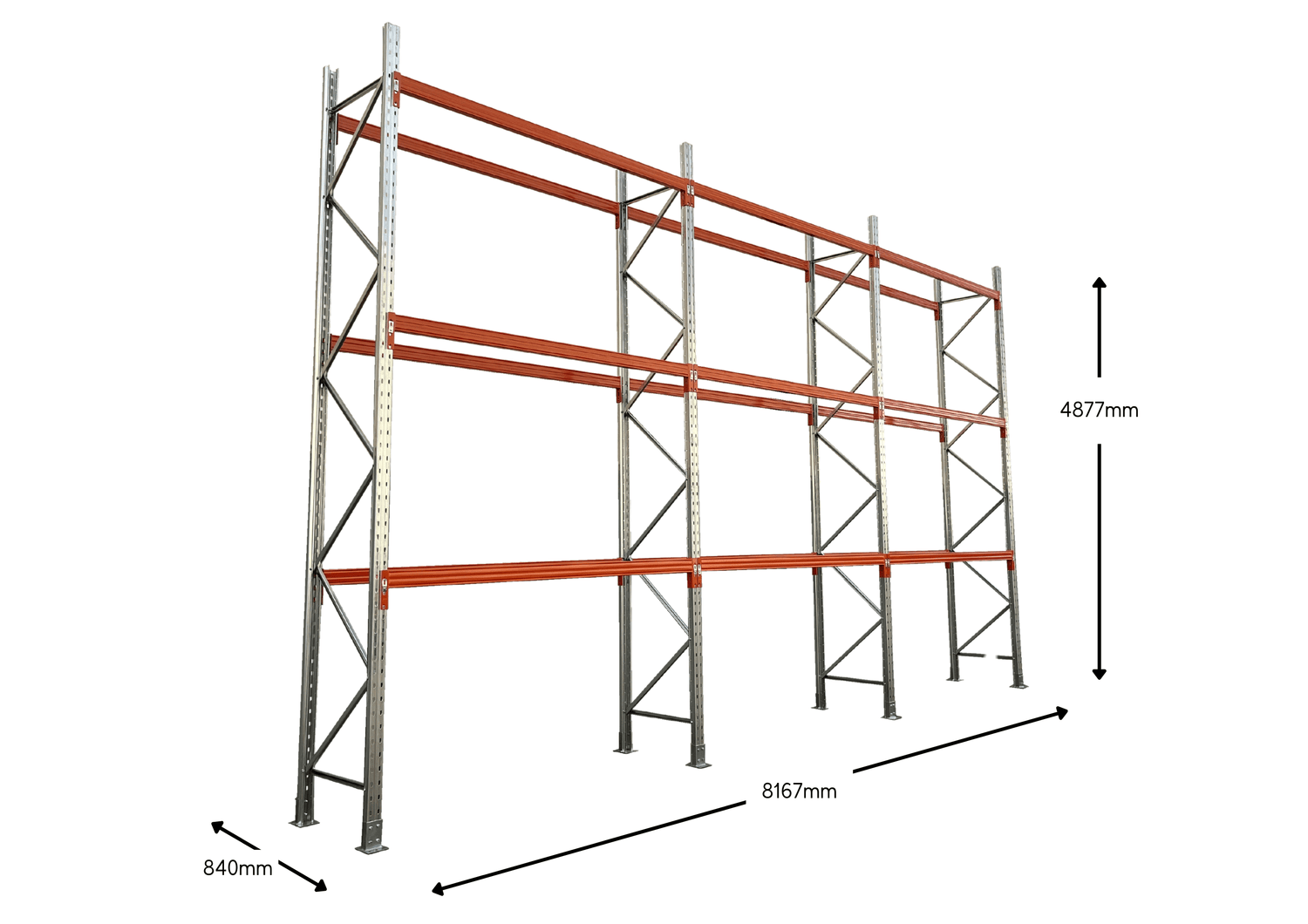

- 4877mm high include 18 x Beams

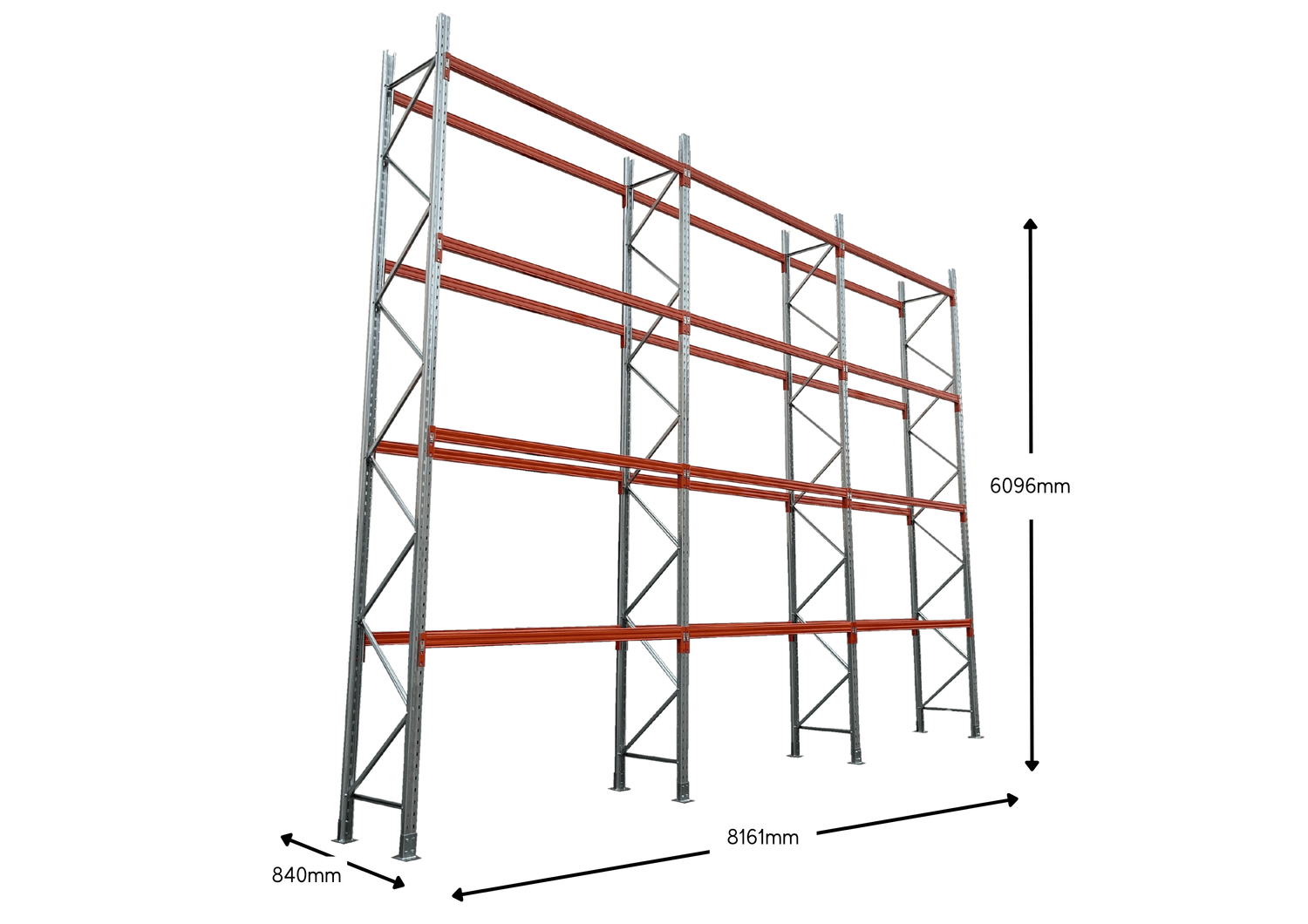

- 6096mm high include 24 x Beams
Specifications
- Material: Frames constructed from durable Pre Galvanised steel and Beams powder coated steel in high visibility Orange.
- Load Capacity: Each Bay is designed to hold a maximum weight of 10,000kgs per bay (Minimum of two bays wide with 2 beams levels)
- Maximum Beam Height: Bottom beam level should not exceed 1800mm.
All pallet racking must be installed to Australian Standards AS4084 2023, find more information here

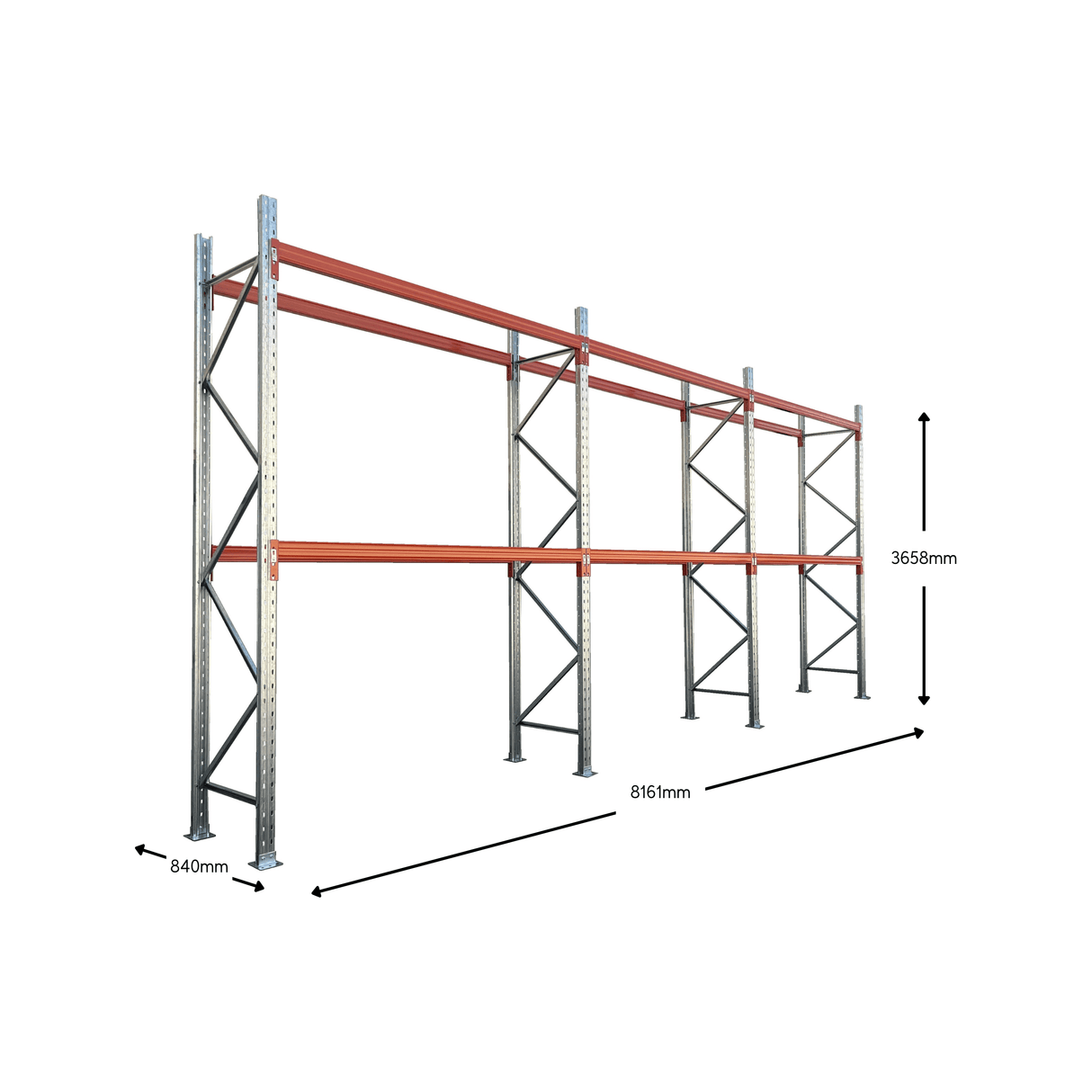

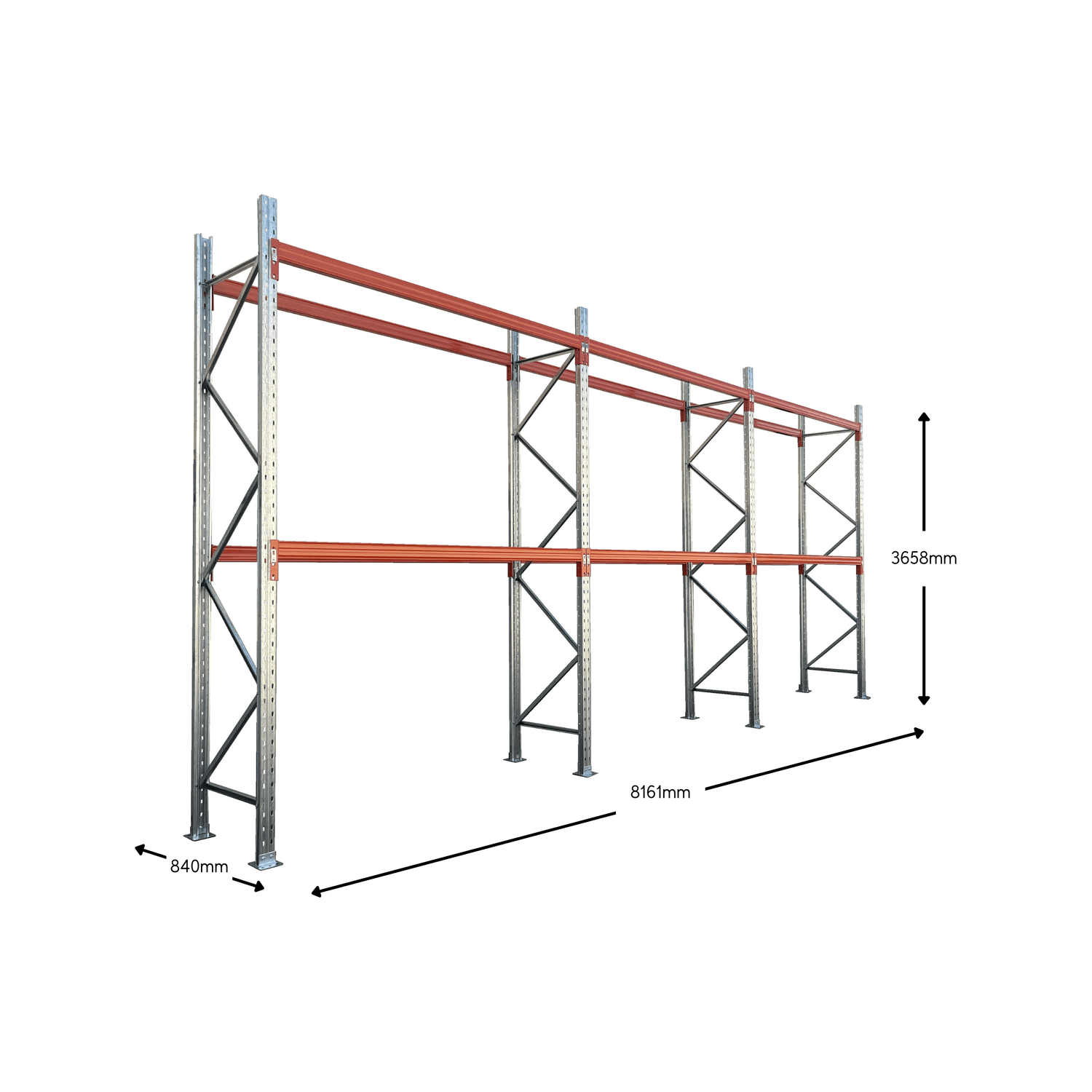

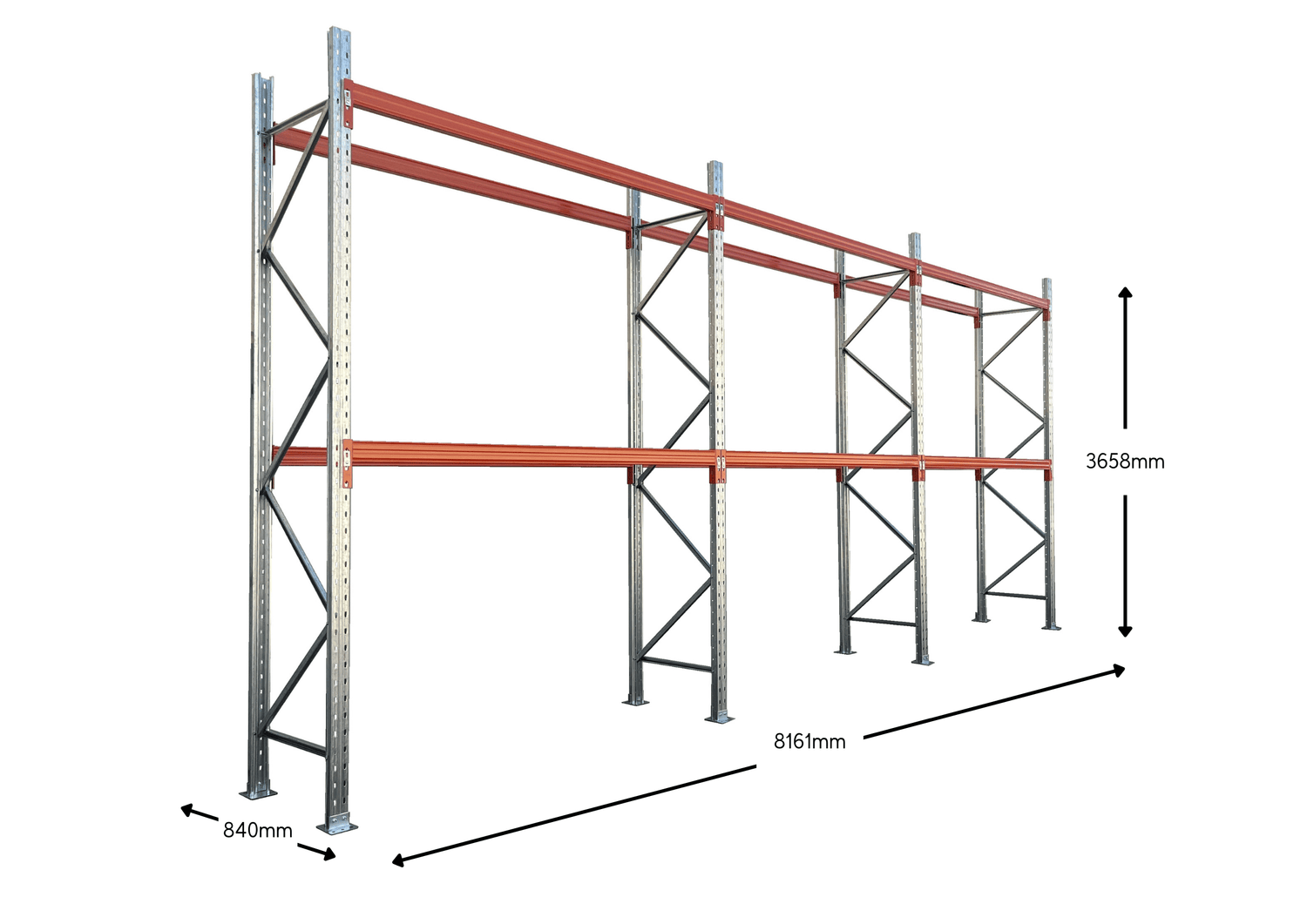

Overall Dimensions 840mm deep x 8161mm wide
