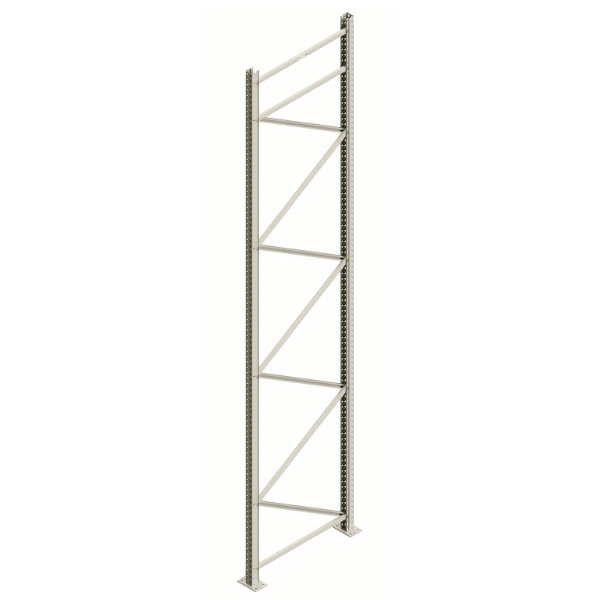

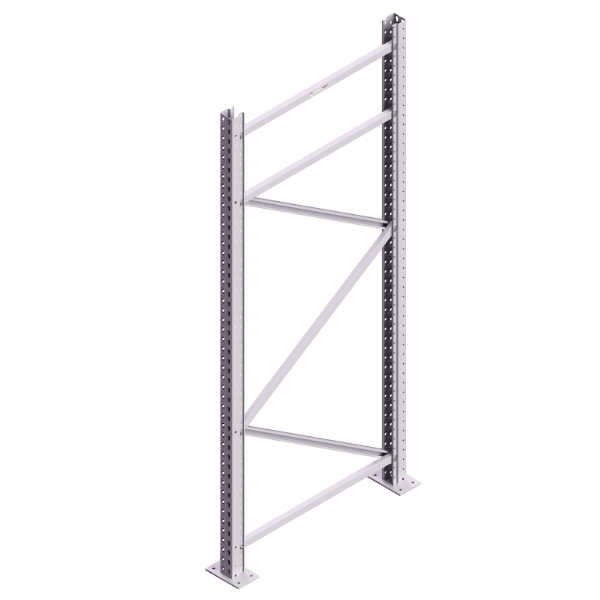

Pallet Rack Upright Frames – 144" Height – 10,000 lb Capacity

144" Pallet Rack Upright Frames – System Overview & Application

These 144" pallet rack upright frames are designed for standard warehouse pallet storage where moderate load capacity and compatibility with teardrop racking systems are required. This configuration supports typical 48" pallet applications in distribution, manufacturing, and light-to-moderate storage environments.

This frame is limited to a 10,000 lb capacity per bay and is intended for operations prioritizing flexibility and compatibility over high-density or heavy-load performance.

Note: Do not use this frame in high-load, high-density, or seismic-critical applications without engineering validation.

Key Features

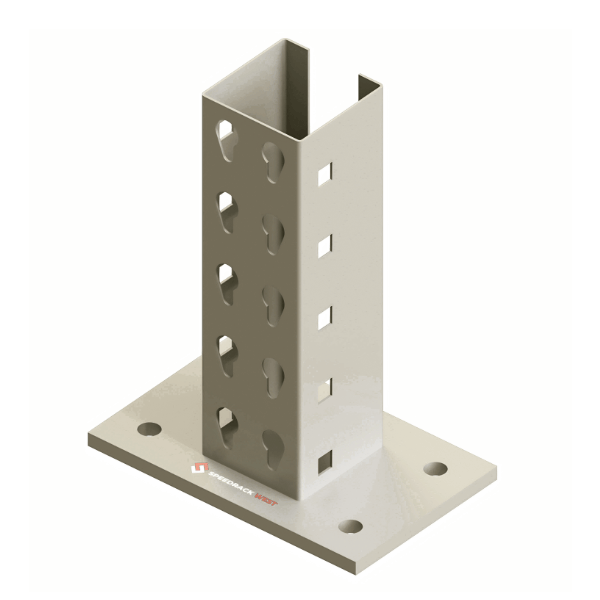

• Teardrop Beam Compatibility: Works with most standard teardrop beams, including traditional and shaved rivet styles.

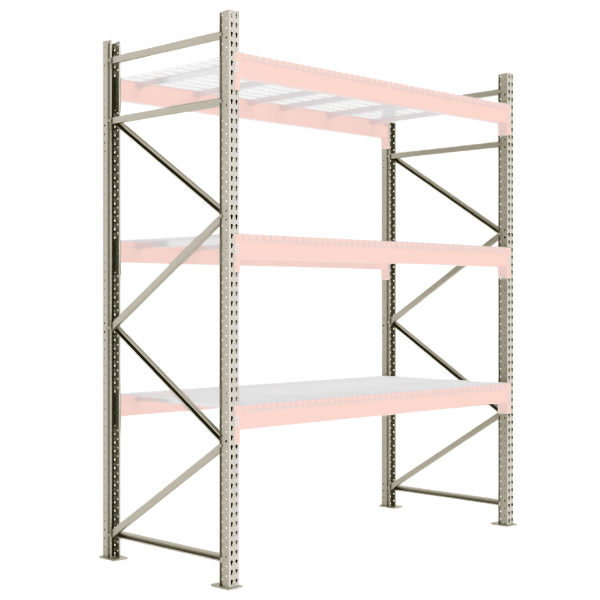

• 2" Vertical Beam Adjustability: Beam levels adjust in 2-inch increments to support changing pallet heights and SKU profiles.

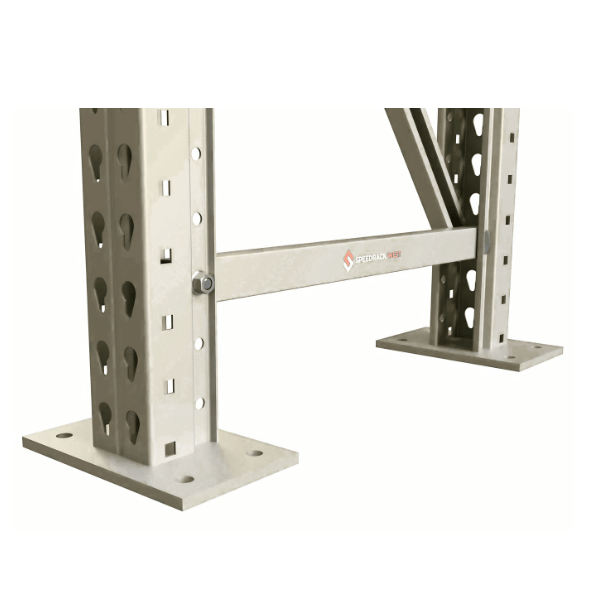

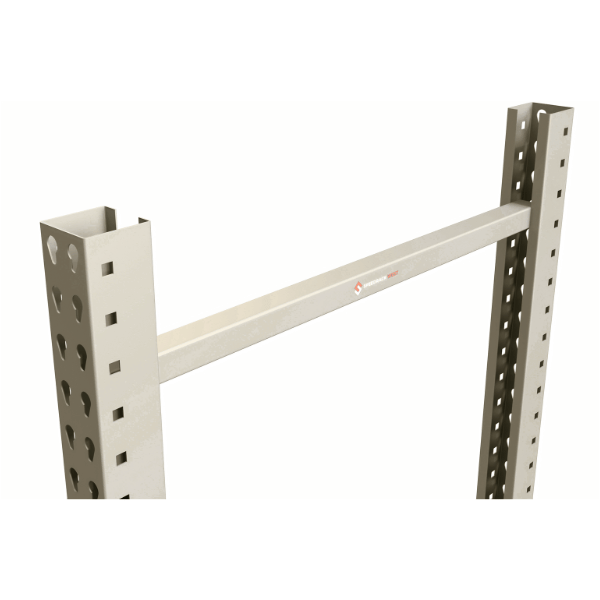

• Bolted Frame Bracing: Individual bracing components can be replaced if damaged, reducing long-term maintenance cost.
• 55,000 PSI High-Strength Steel: Built for standard pallet storage applications with consistent load distribution.
• RMI / R-Mark Certified Construction: Manufactured in accordance with Rack Manufacturers Institute standards.

Variant Selection: Depth

• 42" Depth: Recommended for standard 48" deep pallets. This depth provides proper front and rear overhang support for stable pallet positioning.
• 48" Depth:  Used when additional pallet support is required or when handling non-standard pallet sizes or deeper loads.

Capacity & Structural Constraints

Rated capacity is 10,000 lb per bay. This rating is based on 48" vertical beam spacing and uniformly distributed static loads.

Capacity is affected by:

• Beam spacing
• First beam elevation
• Number of beam levels
• Pallet weight distribution
• Floor slab thickness
• Anchoring method
• Seismic zone requirements

When This Frame Is the Right Choice

• Standard pallet storage using 40" x 48" pallets
• Light-to-moderate load applications
• Warehouses using existing teardrop systems
• Operations requiring flexible beam adjustability
• Facilities prioritizing compatibility over maximum storage density

When Not to Use This Frame

• Loads approach or exceed 10,000 lb per bay
• High-density systems such as push-back, drive-in, or pallet flow rack are required
• Heavy-duty base plates or reinforced columns are required
• The facility is in a seismic zone without engineered approval
• The system is intended for automation or high-throughput storage

Technical Specifications

Critical Planning Considerations

Before purchasing, confirm:

• Ceiling height and sprinkler clearance
• Forklift maximum lift height
• Pallet dimensions and weight
• Floor slab thickness and anchoring requirements
• Local seismic code requirements

Failure to account for these constraints can result in reduced load capacity, unsafe installations, code violations, and system redesign costs
