Pallet Rack Guard - Protection from Forklifts

Prevent Forklift Damage to Pallet Rack Systems

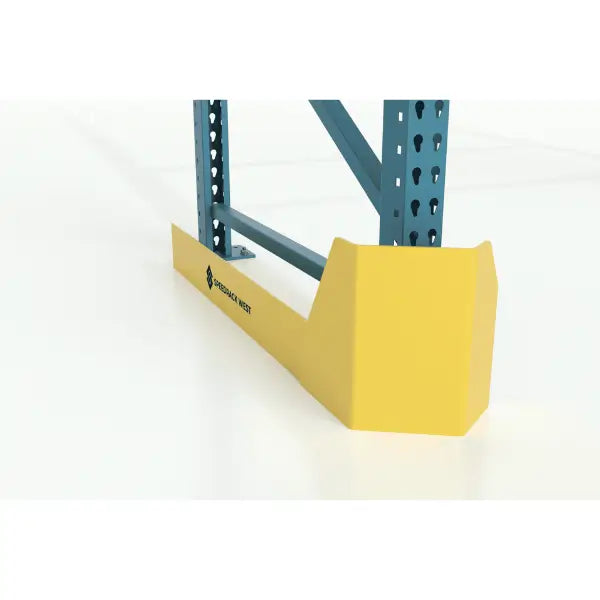

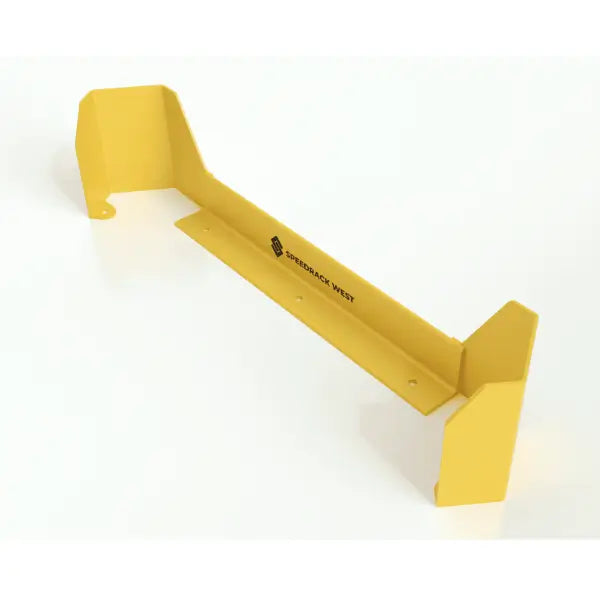

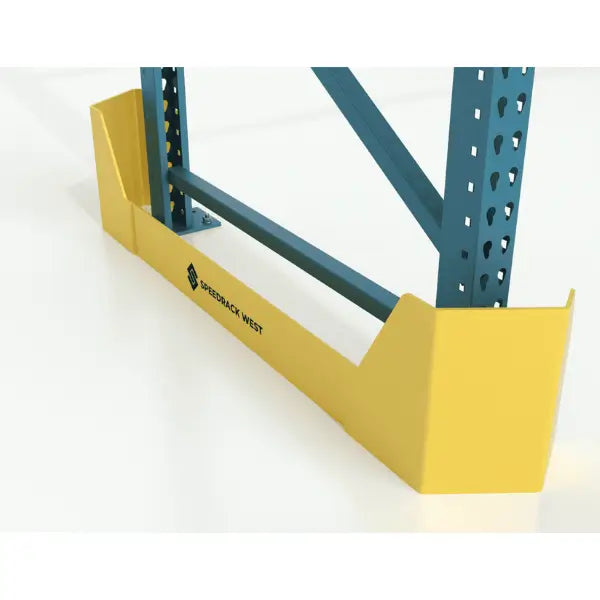

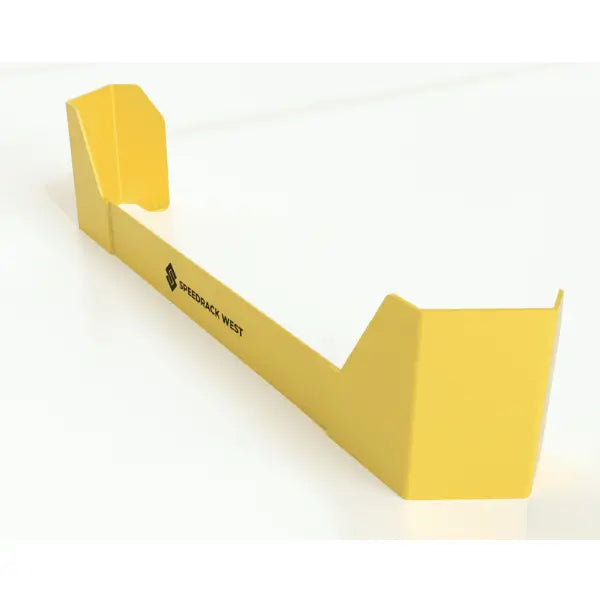

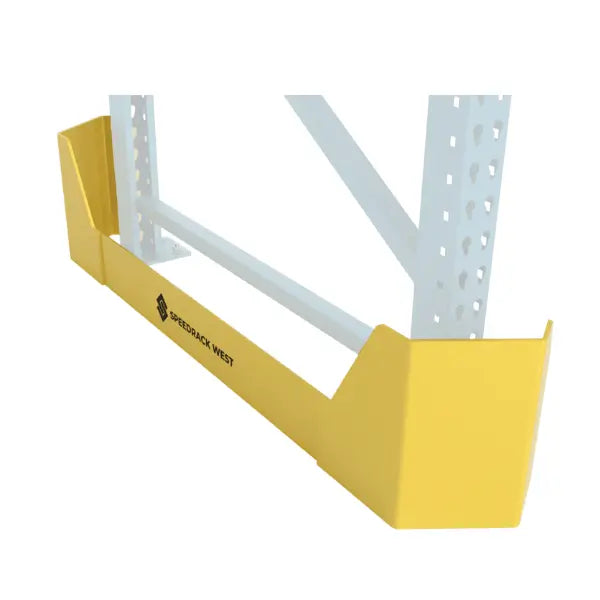

A pallet rack guard is a heavy-duty steel barrier installed at the exposed ends of pallet rack rows to help protect racking systems from forklift, pallet jack, and material handling equipment impacts. Designed for high-traffic warehouse environments, pallet rack guards reduce the risk of structural rack damage, costly repairs, inventory loss, and operational downtime.

Manufacturers, distribution centers, fulfillment operations, and 3PL warehouses use pallet rack guards to protect vulnerable rack row ends where forklift traffic is most frequent. By creating a physical barrier between equipment and the racking structure, these guards help extend the service life of pallet storage systems while improving warehouse safety.

Why Use a Pallet Rack Guard?

Forklift impacts are one of the most common causes of pallet rack damage. Even low-speed collisions can bend rack uprights, compromise structural integrity, and create expensive repair or replacement costs.

• Protect pallet rack row ends from forklift impacts
• Reduce rack repair and maintenance expenses
• Improve warehouse safety
• Minimize damage-related downtime
• Extend the lifespan of pallet racking systems
• Create highly visible rack protection zones
• Support safer forklift traffic patterns

Key Features

Heavy-Duty Steel Construction: Manufactured from 1/4-inch thick steel, this pallet rack guard is designed to withstand repeated impacts in demanding warehouse environments.

Designed for Pallet Rack Row Ends: Specifically engineered to protect exposed rack ends where forklift traffic and accidental impacts are most likely to occur.

OSHA Yellow Powder-Coated Finish: The highly visible safety yellow powder-coated finish helps operators identify rack protection zones while providing resistance against scratches, corrosion, and everyday warehouse wear.

Installation Hardware Included: Each pallet rack guard includes the required 3/8-inch x 4-inch screw anchors for installation, allowing for secure floor-mounted protection.

Compatible with Additional Rack Protection Systems: Can be used alongside column guards, rack upright protectors, RAMguards, and pallet rack back guards to create a more comprehensive rack protection strategy.

Applications

• Distribution centers
• Third-party logistics warehouses
• Manufacturing facilities
• Retail distribution operations
• Food and beverage warehouses
• Ecommerce fulfillment centers
• Industrial storage facilities

Compatibility

This pallet rack guard can be used with most common pallet racking systems, including:

• Teardrop pallet racks
• Structural pallet racks
• Selective pallet racking
• Push back racking systems
• Pallet flow rack systems
• Drive-in pallet rack systems

Compatibility should be verified before installation when using non-standard rack layouts or custom rack configurations.

Specifications

Installation Information

The pallet rack guard is designed for floor-mounted installation and includes the required anchor hardware.For maximum protection, install guards at exposed rack row ends where forklift traffic is concentrated. Installation should be performed on suitable concrete surfaces capable of supporting anchor loads.

When Not to Use a Pallet Rack Guard

Pallet rack guards are designed to protect rack row ends from incidental equipment impacts. They should not be used as a substitute for properly designed traffic barriers or facility perimeter protection.

• Do not use as pedestrian safety barriers.
• Do not use as vehicle crash barriers.
• Do not use to repair damaged pallet racking.
• Do not use in place of rack inspections and maintenance programs.
• Do not use where facility traffic requires full-length guard rail systems.

Facilities experiencing repeated high-energy impacts may require additional protection systems such as guard rails, bollards, or reinforced traffic barriers.
