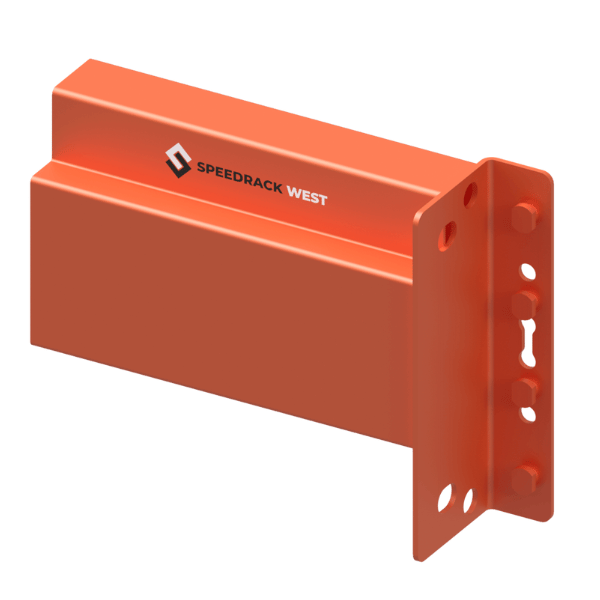

Pallet Rack Beams 72" Length x 3" Face 3,500 lb Capacity
Pallet Rack Beams 72" Length x 3" Face 3,500 lb Capacity is backordered and will ship as soon as it is back in stock.
Handling & Use Requirements
Handling & Use Requirements
Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.
Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.
Delivery & Freight Shipping
Delivery & Freight Shipping
All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.
You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.
Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.
Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.
Pallet Rack Beams 72" Length x 3" Face 3,500 lb Capacity
Pallet Rack Beams 72" Length x 3" Face 3,500 lb Capacity is backordered and will ship as soon as it is back in stock.
Need Help Specifying This Equipment?
Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.
Description
Description

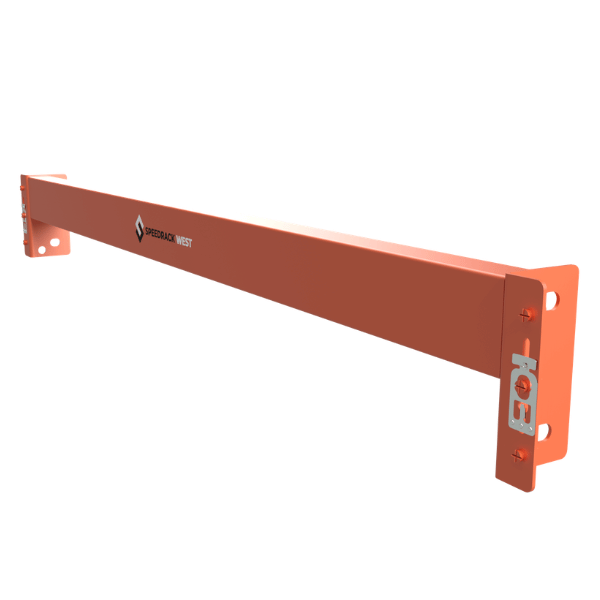

72" Pallet Rack Beams for Teardrop Selective Pallet Racking
These 72" pallet rack beams are designed for selective pallet racking systems requiring medium-duty load support up to 3,500 lb per pair under evenly distributed static loads. Compatible with teardrop and Interlake New Style uprights, these beams feature a standard 1 5/8" step for wire decking, pallet supports, and other rack accessories.

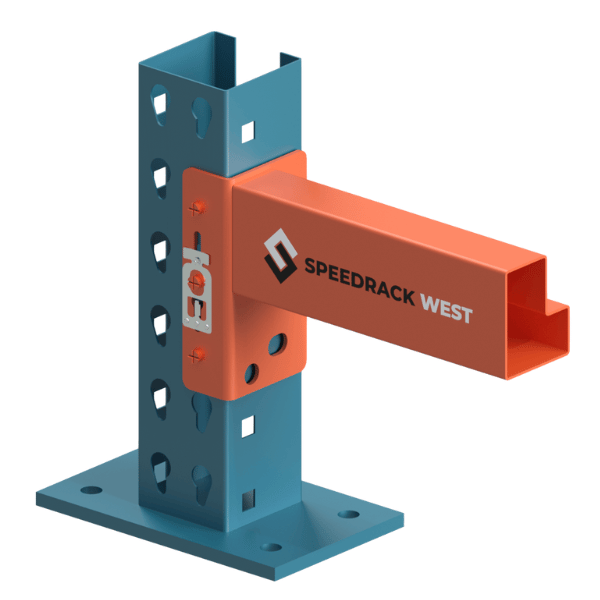

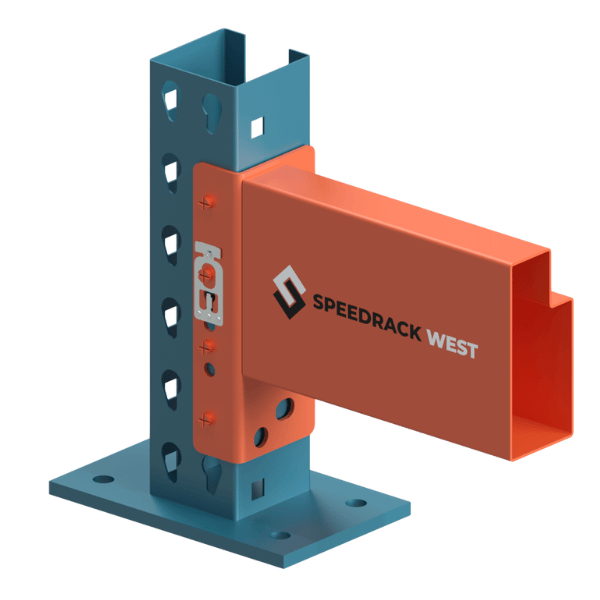

The boltless teardrop connection allows for fast installation and beam adjustment without tools or hardware. Powder-coated steel construction provides a durable industrial finish suitable for warehouse, distribution, manufacturing, and 3PL storage environments.
Key Features
- 72" beam length with 3" face height
- 3,500 lb capacity per pair under evenly distributed static loads

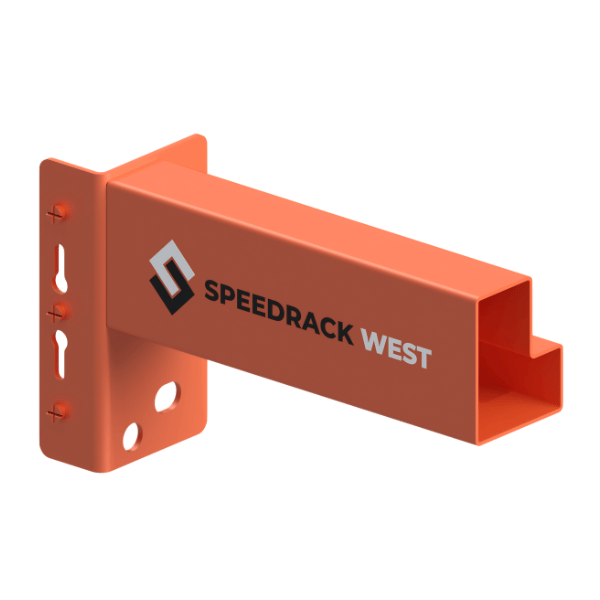

- Standard 1 5/8" step beam design
- Compatible with teardrop and Interlake New Style pallet rack frames
- Boltless click-in teardrop connection
- Supports wire decking and pallet support accessories
- Powder-coated industrial finish
- Manufactured to Rack Manufacturers Institute (RMI) standards
- Beams sold individually

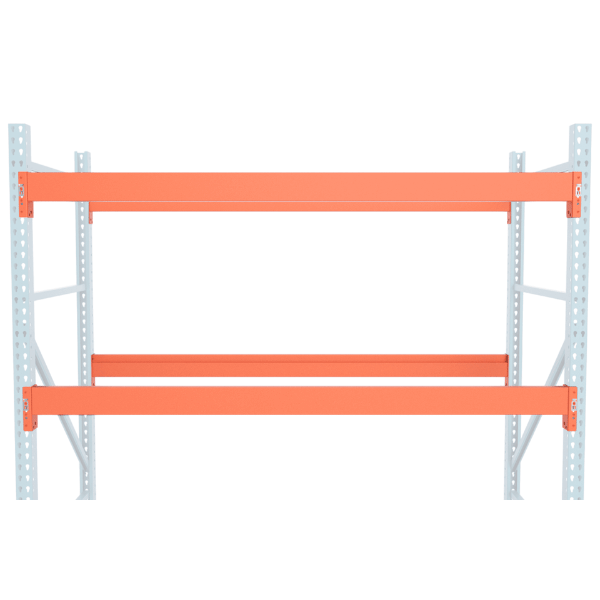

- Two beams required per storage level
Specifications
| Specification | Value |
|---|---|
| Product Type | Pallet Rack Step Beam |
| Beam Length | 72" |
| Beam Face Height | 3" |
| Capacity | 3,500 lb per pair |
| Capacity Type | Uniformly Distributed Static Load |
| Beam Style | Step Beam |
| Step Size | 1 5/8" |
| Connection Type | Teardrop Boltless |
| Frame Compatibility | Teardrop & Interlake New Style |
| Material | Steel |
| Finish | Powder Coated Orange |
| Installation | Tool-Free Click-In Installation |
| Sold As | Individual Beam |
| Beams Required Per Level | 2 |
| Standards | Rack Manufacturers Institute (RMI) |
Operational Fit

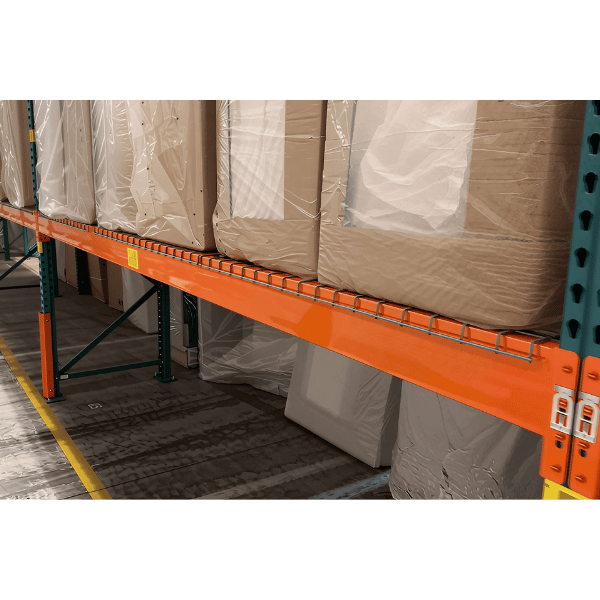

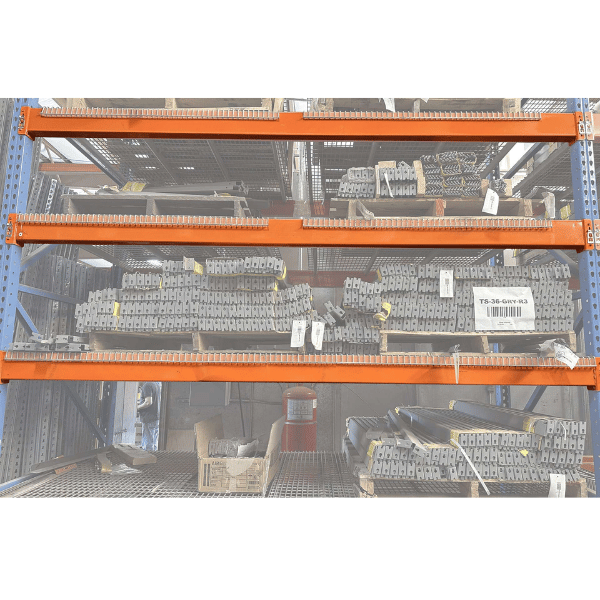

These pallet rack beams are commonly used in selective pallet racking systems handling standard pallet storage in warehouse, fulfillment, distribution, and light manufacturing operations.
The 72" span is typically used where shorter beam lengths are required for tighter layouts, smaller pallet configurations, or lower-capacity rack sections. This beam size is not intended for high-density storage systems or heavy pallet loads requiring larger face sizes or higher-capacity structural beams.
Important Capacity & Safety Information
Beam capacities are rated per pair, not per individual beam. Two beams are required for each pallet rack level.
Capacities apply only to evenly distributed static pallet loads. Point-loaded pallets, uneven loading, impact loading, or damaged rack components will reduce system performance and can create unsafe storage conditions.
Rack configurations installed in seismic zones or high-traffic forklift environments should be reviewed before installation. Final rack system design and load verification should be confirmed prior to use.
Need Help Confirming Beam Capacity?
Provide your pallet dimensions, pallet weights, upright depth, and desired beam spacing for assistance reviewing rack compatibility and beam sizing requirements.
📚 Frequently Asked Questions (FAQs)
Are pallet rack beam capacities listed per beam or per pair?
Can these pallet rack beams be used with structural uprights?
Can wire decking be installed on these beams?
Are these beams suitable for heavy-duty high-density pallet storage?
Are beams sold individually or in pairs?
