Pallet Rack Beams – 3" Face Height – 5,560 lb Capacity
Pallet Rack Beams – 3" Face Height – 5,560 lb Capacity - 36" is backordered and will ship as soon as it is back in stock.
Handling & Use Requirements
Handling & Use Requirements
Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.
Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.
Delivery & Freight Shipping
Delivery & Freight Shipping
All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.
You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.
Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.
Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.
Pallet Rack Beams – 3" Face Height – 5,560 lb Capacity
Pallet Rack Beams – 3" Face Height – 5,560 lb Capacity - 36" is backordered and will ship as soon as it is back in stock.
Need Help Specifying This Equipment?
Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.
Description
Description

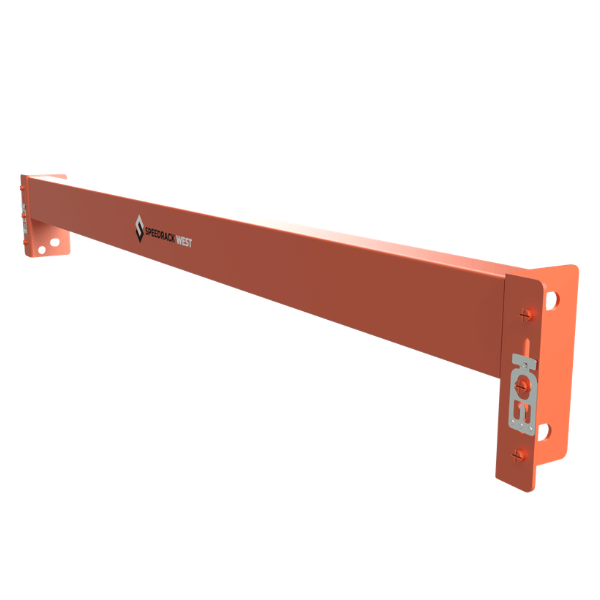

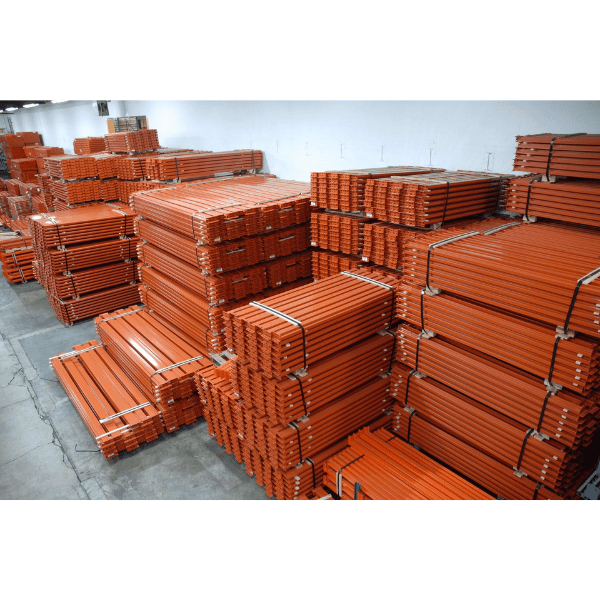

3" Teardrop Pallet Rack Beams for Warehouse Storage Systems
These 3" pallet rack beams are designed for selective pallet racking systems that require compact beam profiles with high load support. Built with a teardrop-style connection and standard 1-5/8" step design, these beams support wire decking, pallet supports, and wood decking commonly used in warehouse pallet storage systems.
Compatible with most teardrop and Interlake-style pallet rack uprights, these pallet rack cross beams install using a tool-free click-in connection for fast beam adjustment and system reconfiguration. Capacities are rated per pair under uniformly distributed static loads.
Do not use these beams with structural bolt-together pallet rack systems or damaged uprights. Seismic applications require engineering review and rack configuration validation.
Key Features
- 3" face height beam profile
- Rated up to 5,560 lb capacity per pair

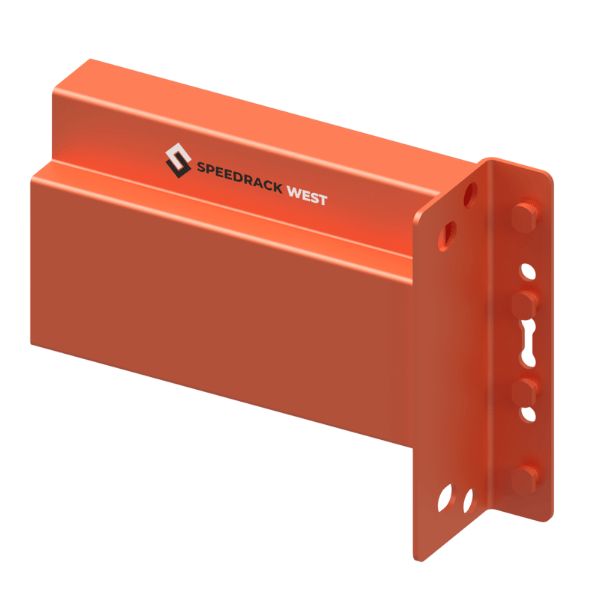

- Standard 1-5/8" step beam design

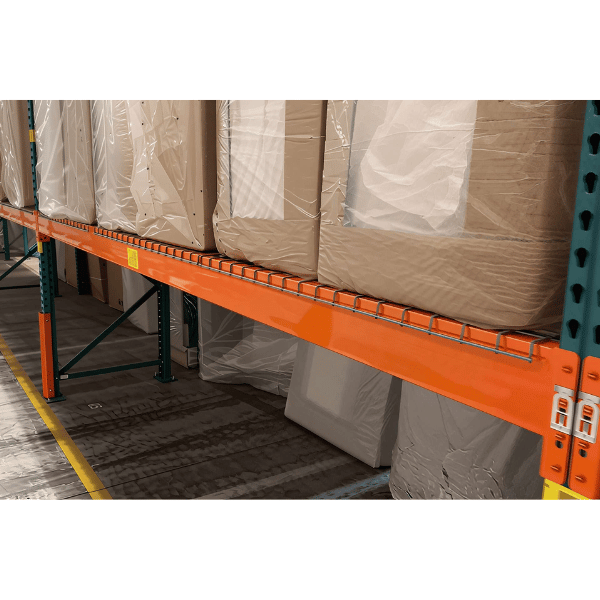

- Compatible with wire decking and pallet supports

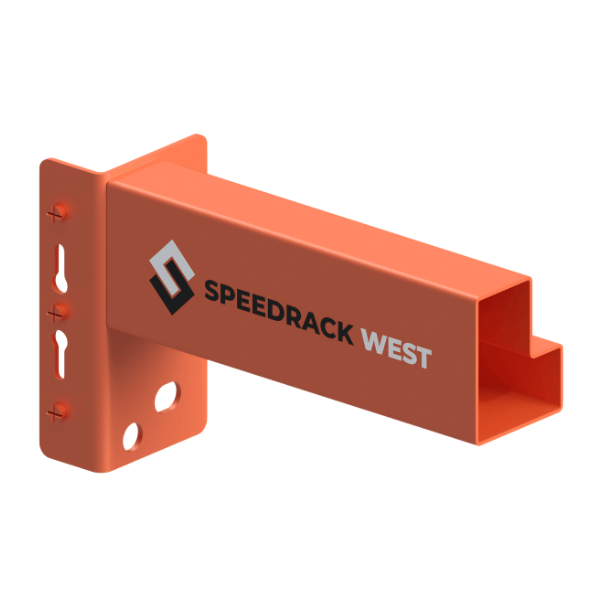

- Teardrop-style tool-free beam connection
- Compatible with teardrop and Interlake-style uprights
- Powder-coated orange finish
- Heavy-duty steel pallet rack beam construction
- Designed for warehouse pallet racking systems
- Beams sold individually
- Two beams required per storage level
Available Beam Sizes
| Beam Length | Face Height | Capacity Per Pair | Color | SKU |
|---|---|---|---|---|
| 36" | 3" | 5,560 lb | Orange | BC03630SMIORNI |
| 48" | 3" | 5,560 lb | Orange | BC04830SM6IORNI |
Specifications
| Product Type | Pallet Rack Beam |
|---|---|
| Beam Style | Step Beam |
| Beam Face Height | 3" |
| Beam Connection Type | Teardrop |
| Capacity Rating | 5,560 lb per pair |
| Load Type | Uniformly distributed static load |
| Step Size | 1-5/8" |
| Compatible Uprights | Teardrop / Interlake-style uprights |
| Compatible Decking | Wire decking, pallet supports, wood supports |
| Finish | Powder coated |
| Color | Orange |
| Assembly Type | Tool-free click-in installation |
| Beam Material | Steel |
| Sold As | Individual beam |
| Beams Required Per Level | 2 |

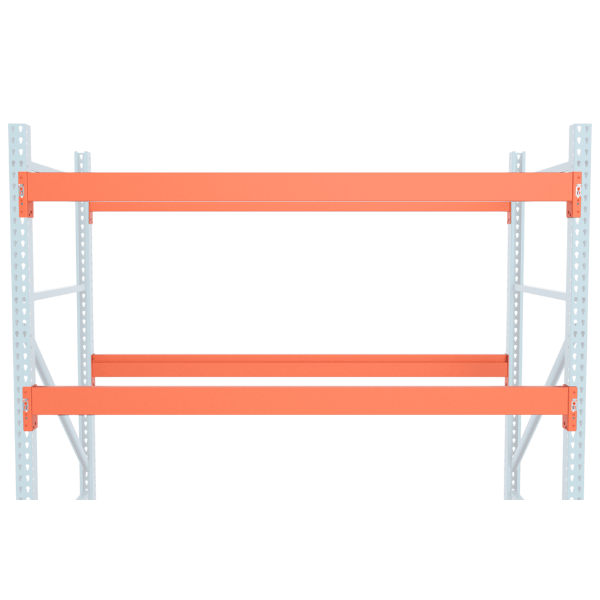

Compatible Pallet Rack Systems

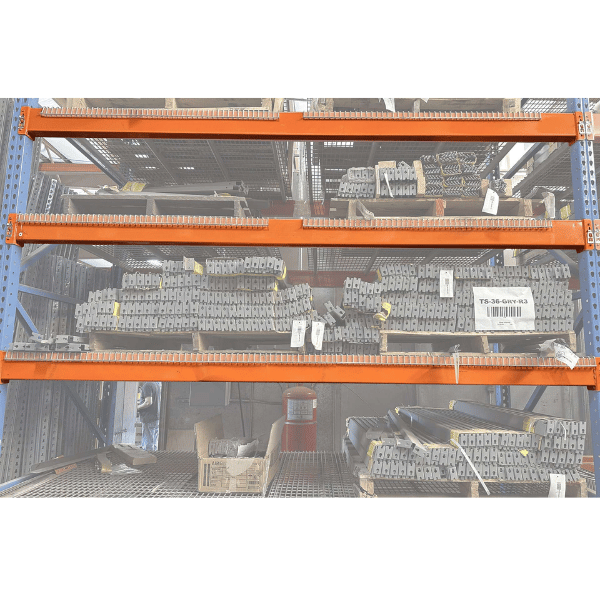

These pallet rack beams are designed for teardrop pallet rack systems, Interlake-style pallet rack frames, selective pallet racking, and standard warehouse pallet storage systems.
Compatible accessories include wire decking, pallet supports, and wood decking supports.
Important Capacity Information
Beam capacities are listed per pair, not per individual beam. Always calculate required beam capacity using the total weight stored across the full beam level.
Capacities assume uniformly distributed pallet loads, properly installed uprights, undamaged rack components, and standard warehouse operating conditions. Non-uniform loading, impact loading, seismic conditions, or damaged rack systems reduce allowable capacity.
Beam Length Selection Guidance
Beam length selection depends on pallet dimensions, number of pallet positions per level, forklift clearance requirements, pallet overhang requirements, and aisle configuration.
Shorter beam spans generally support higher capacities with reduced beam deflection.
Installation & Compatibility Notes

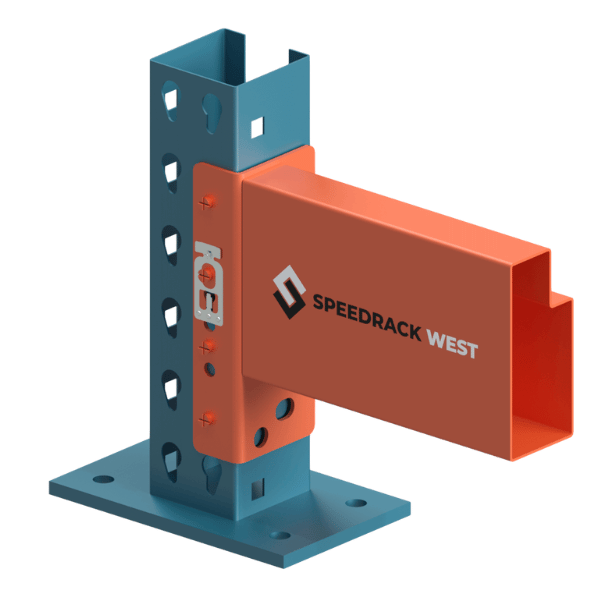

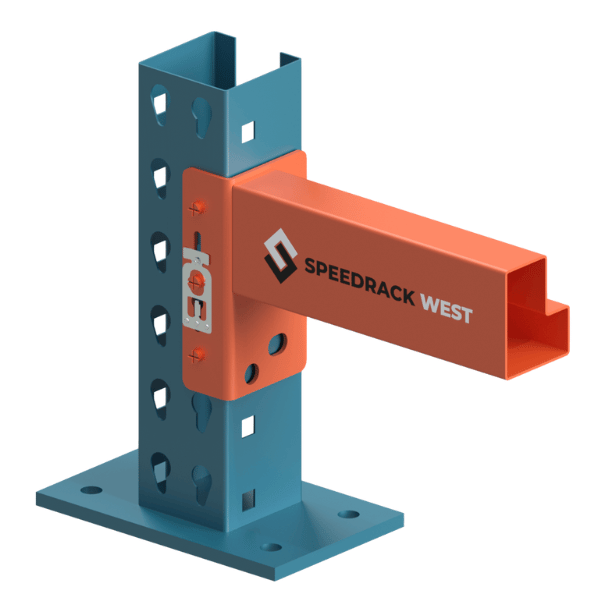

These beams use a teardrop-style connector that installs directly into compatible upright frames without bolts or special tools.
Do not assume compatibility with structural pallet racking, bolt-together rack systems, proprietary upright punch patterns, or damaged and modified uprights. Verify upright compatibility before ordering.
Engineering & Safety Notice
Final pallet rack system suitability should be reviewed by a qualified rack professional. Seismic regions, high-density storage applications, impact zones, and non-standard loading conditions may require engineered review and modified rack configuration.
Do not exceed rated beam capacities.
Need a Different Beam Size?
Additional beam lengths, beam heights, and capacity classes are available. Custom fabricated beam lengths may also be available for non-standard warehouse layouts and pallet configurations.
Contact our warehouse racking specialists for configuration assistance and compatibility review.
📚 Frequently Asked Questions (FAQs)
Are pallet rack beam capacities rated per beam or per pair?
Are these pallet rack beams compatible with teardrop uprights?
Can these pallet rack beams be used with wire decking?
Can these pallet rack beams be used in seismic zones?
Can these pallet rack beams be used with structural pallet rack systems?
