Pallet Rack Beams 144" x 6.25" – 6500 lb Capacity
Pallet Rack Beams 144" x 6.25" – 6500 lb Capacity is backordered and will ship as soon as it is back in stock.
Handling & Use Requirements
Handling & Use Requirements
Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.
Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.
Delivery & Freight Shipping
Delivery & Freight Shipping
All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.
You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.
Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.
Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.
Pallet Rack Beams 144" x 6.25" – 6500 lb Capacity
Pallet Rack Beams 144" x 6.25" – 6500 lb Capacity is backordered and will ship as soon as it is back in stock.
Need Help Specifying This Equipment?
Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.
Description
Description

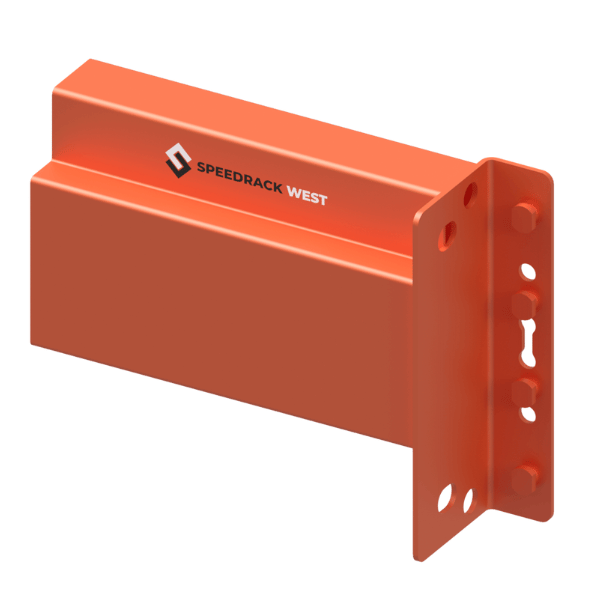

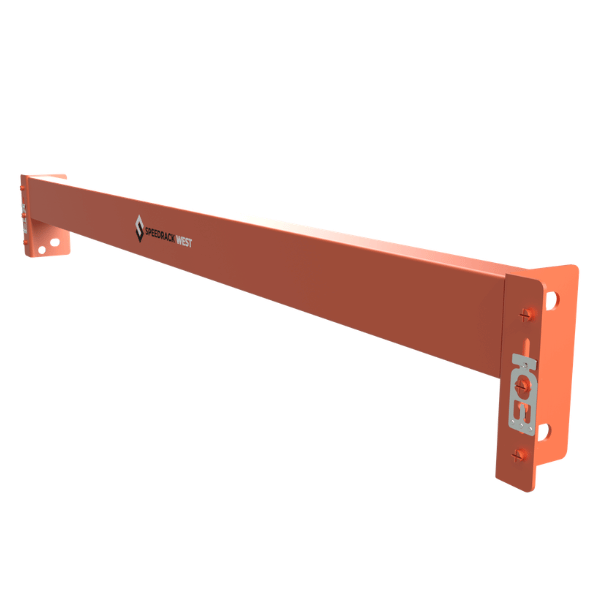

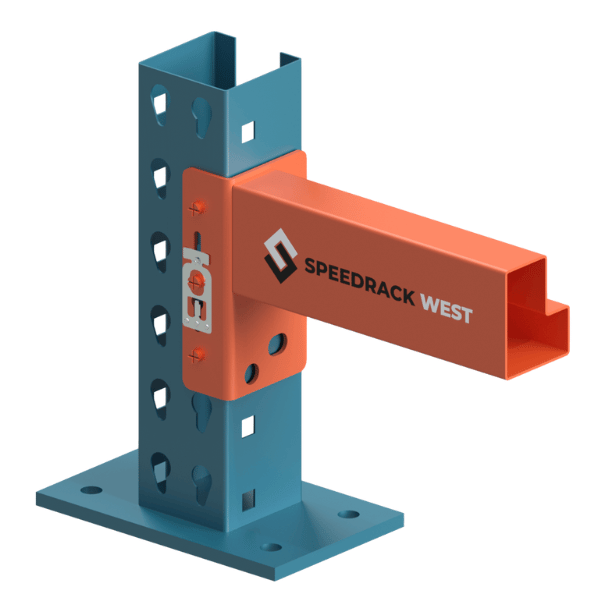

Heavy-Duty 144" Pallet Rack Beam for Teardrop Uprights
These 144" pallet rack beams are designed for teardrop pallet rack systems that require higher load capacity and compatibility with standard warehouse decking accessories. The 6.25" beam face provides increased load support for palletized storage in distribution, manufacturing, and fulfillment environments.

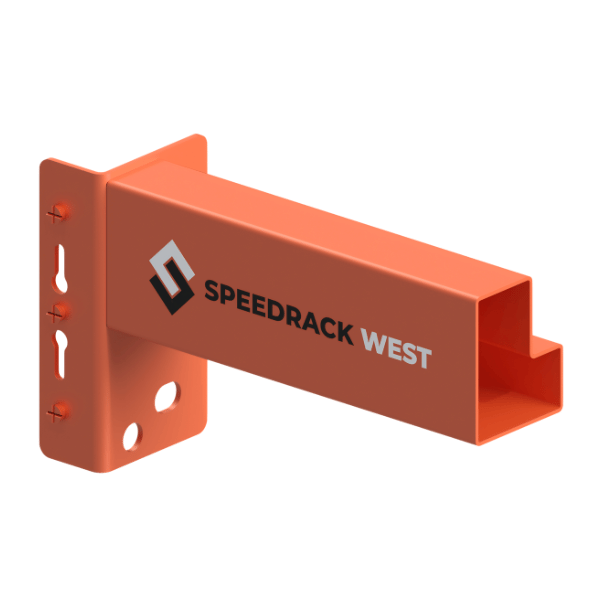

Each beam features a standard 1 5/8" step design compatible with wire decking, pallet supports, and wood decking. The teardrop connection allows tool-free installation into compatible teardrop and Interlake New Style upright frames.

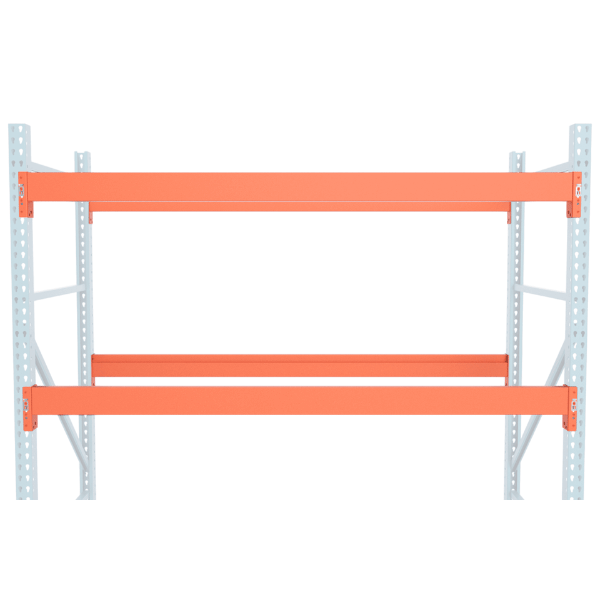

This beam is rated at 6,500 lb capacity per pair under uniformly distributed static loads. Two beams are required per shelf level. Beams are sold individually.
Key Features
- 144" beam length
- 6.25" beam face height
- 6,500 lb capacity per pair
- Standard 1 5/8" step beam
- Teardrop-style connector design
- Compatible with Interlake New Style uprights
- Powder-coated orange finish
- Tool-free click-in installation
- Compatible with wire decking and pallet supports
- Manufactured to Rack Manufacturers Institute standards
Applications

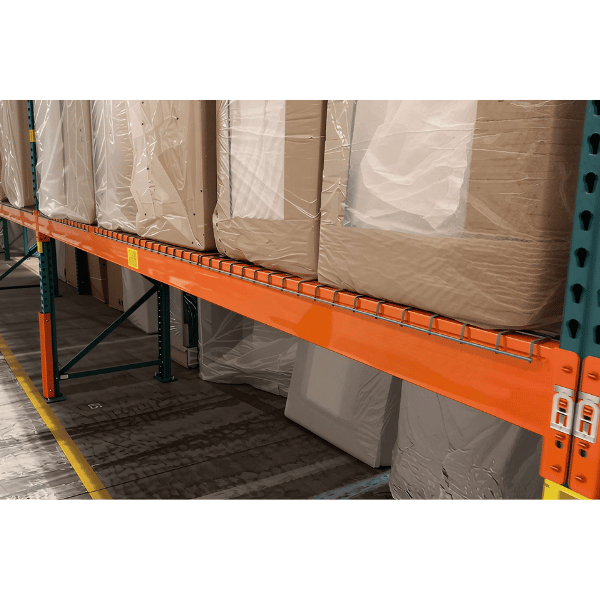

These pallet rack cross beams are commonly used in warehouse pallet storage systems where long beam spans and higher load capacity are required.
- Distribution centers
- 3PL warehouses
- Manufacturing storage systems
- Ecommerce fulfillment operations
- Industrial pallet storage
- Bulk inventory storage systems
The 144" length is commonly configured for three pallet positions depending on pallet dimensions and load distribution.
Compatibility
These beams are designed for compatible teardrop pallet rack systems and Interlake New Style frames.
- Teardrop pallet rack uprights
- Interlake New Style frames
- Standard wire decking
- Pallet supports
- Wood decking systems
Do not use these beams with structural pallet rack systems or non-teardrop upright punch styles unless compatibility has been verified.
Specifications
| Product Type | Pallet Rack Beam |
|---|---|
| SKU | BC14462SMI4ORNI |
| Beam Length | 144" |
| Beam Face Height | 6.25" |
| Capacity | 6,500 lb per pair |
| Beam Step | 1 5/8" |
| Connection Type | Teardrop |
| Finish | Powder Coated |
| Color | Orange |
| Installation | Tool-free click-in installation |
| Compatible Uprights | Teardrop and Interlake New Style |
| Decking Compatibility | Wire decking, pallet supports, and wood supports |
| Sales Unit | Individual beam |
| Beams Required Per Level | 2 |
| Load Assumption | Uniformly distributed static loads |
| Standards | Manufactured to Rack Manufacturers Institute standards |
Important Capacity & Usage Information
Beam capacities are rated per pair, not per individual beam. Two beams are required to create one pallet rack shelf level.
Do not exceed the rated capacity under uneven or point-loaded conditions. Capacities shown apply only to uniformly distributed static pallet loads installed in properly configured rack systems.
Do not use damaged, bent, or visibly deformed beams. Beam compatibility must be verified before installation into existing pallet rack systems.
Seismic requirements vary by facility location and rack configuration. Additional engineering review may be required for seismic regions or high-density storage applications.
Installation Notes

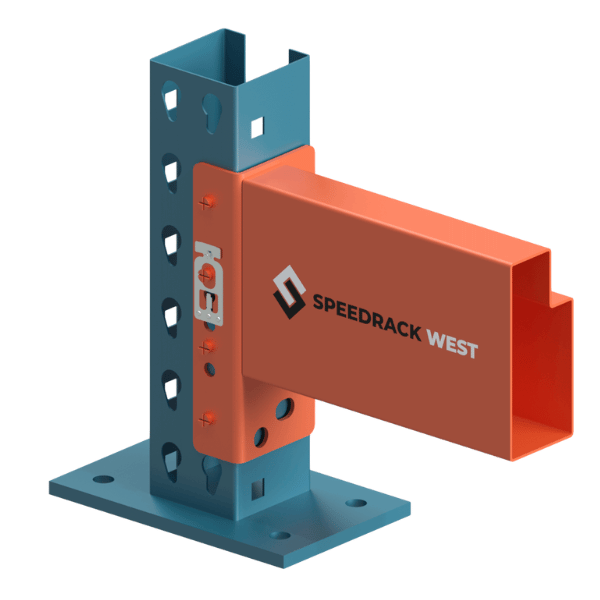

These beams use a teardrop-style hook connection for boltless installation into compatible upright frames. Installation does not require tools when used with properly matched teardrop systems.
Beam locks, wire decking, pallet supports, anchors, and additional rack accessories are sold separately unless otherwise specified.
📚 Frequently Asked Questions (FAQs)
Are pallet rack beam capacities rated per beam or per pair?
Will these beams fit all pallet rack uprights?
Can these beams be used with wire decking?
Can I use these beams in seismic zones?
Are these beams sold individually or as pairs?
