Pallet Rack Beams 144" x 5.5" – 4000 lb Capacity
Pallet Rack Beams 144" x 5.5" – 4000 lb Capacity is backordered and will ship as soon as it is back in stock.
Handling & Use Requirements
Handling & Use Requirements
Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.
Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.
Delivery & Freight Shipping
Delivery & Freight Shipping
All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.
You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.
Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.
Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.
Pallet Rack Beams 144" x 5.5" – 4000 lb Capacity
Pallet Rack Beams 144" x 5.5" – 4000 lb Capacity is backordered and will ship as soon as it is back in stock.
Need Help Specifying This Equipment?
Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.
Description
Description

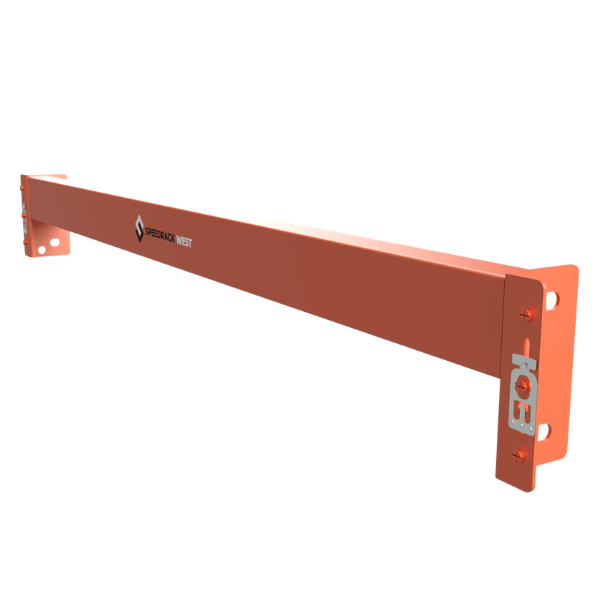

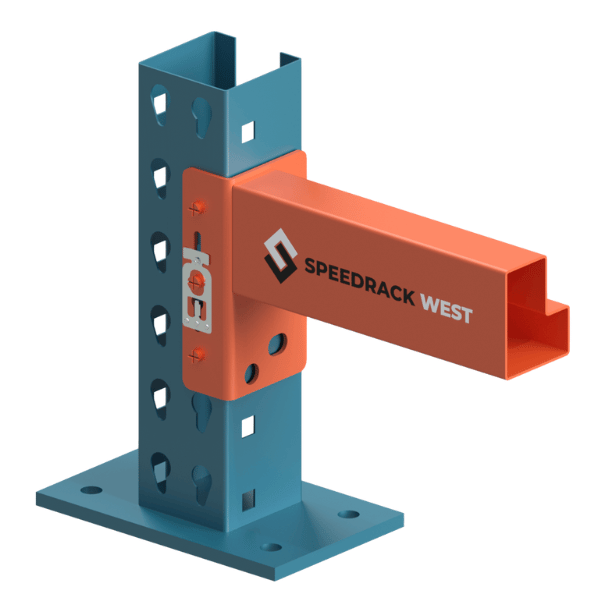

144" Teardrop Pallet Rack Beam for Selective Rack Systems
Pallet Rack Beams 144" x 5.5" – 4,000 lb Capacity are roll-formed steel step beams for selective pallet racking systems in warehouses, distribution centers, manufacturing facilities, and 3PL operations. These beams connect to teardrop and Interlake New Style uprights using a boltless click-in connection for fast installation and beam elevation adjustment.
The standard 1 5/8" step design supports wire decking, pallet supports, and wood decking configurations commonly used in pallet rack storage systems. Powder-coated steel construction provides a durable orange finish for high-traffic warehouse environments.
Key Features
- 144" pallet rack beam length
- 5.5" beam face height
- 4,000 lb capacity per pair

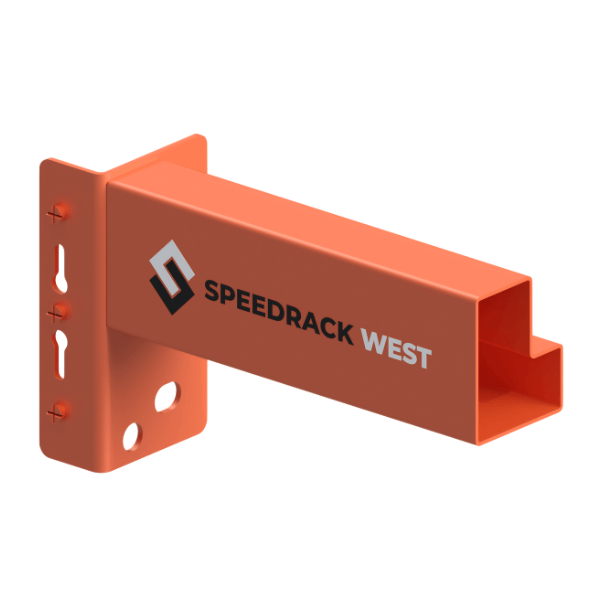

- Standard 1 5/8" step beam design
- Compatible with teardrop and Interlake New Style uprights
- Boltless click-in installation
- Powder-coated orange finish

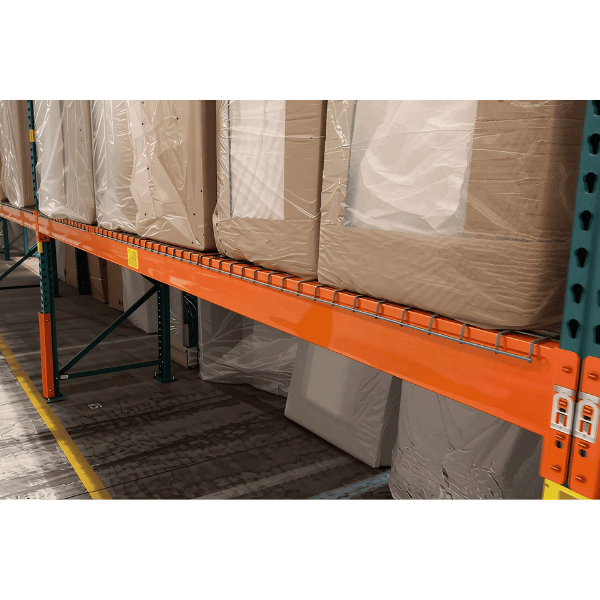

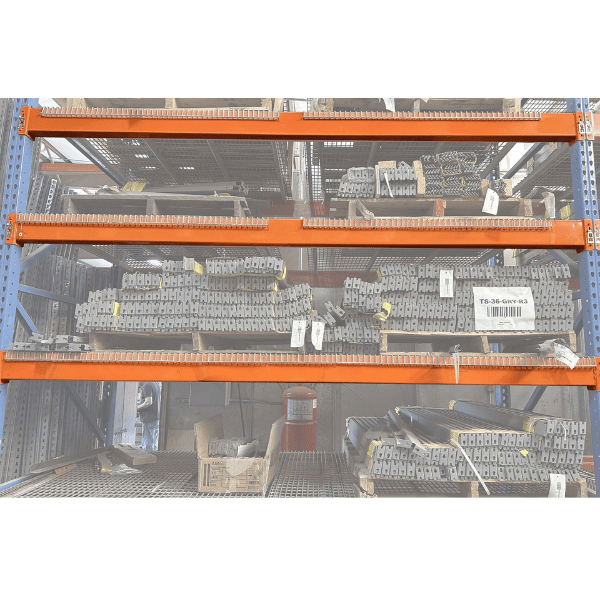

- Supports wire decking, pallet supports, and wood decking
- Roll-formed steel construction
- Manufactured to RMI standards
- Beams sold individually
- Two beams required per storage level
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Pallet Rack Beam |
| Beam Length | 144" |
| Beam Face Height | 5.5" |
| Capacity | 4,000 lb per pair |
| Beam Style | Step Beam |
| Step Size | 1 5/8" |
| Connection Type | Teardrop |
| Compatible Uprights | Teardrop & Interlake New Style |
| Material | Roll-Formed Steel |
| Finish | Powder Coated |
| Color | Orange |
| Decking Compatibility | Wire Decking, Pallet Supports, Wood Supports |
| Installation Type | Boltless Click-In |
| Compliance | Rack Manufacturers Institute (RMI) Standards |
| Sold As | Individual Beam |
| Beams Required Per Level | 2 |
Compatible Applications
These pallet rack beams are commonly used in:
- Selective pallet racking systems
- Warehouse storage systems
- Distribution centers
- Manufacturing storage areas
- 3PL warehouse operations
- Ecommerce fulfillment facilities
- Bulk pallet storage applications
Do not use these beams with incompatible upright perforations, damaged rack components, or unsupported beam spans.
Capacity & Configuration Notice
Beam capacities are rated per pair under uniformly distributed static loads. Capacity assumes properly installed compatible uprights, correct beam engagement, undamaged rack components, and appropriate rack configuration.
Seismic conditions, impact damage, improper installation, concentrated loads, or incompatible components reduce allowable rack capacity. Consult a qualified rack professional before modifying existing pallet rack systems.
Installation & Configuration Notes

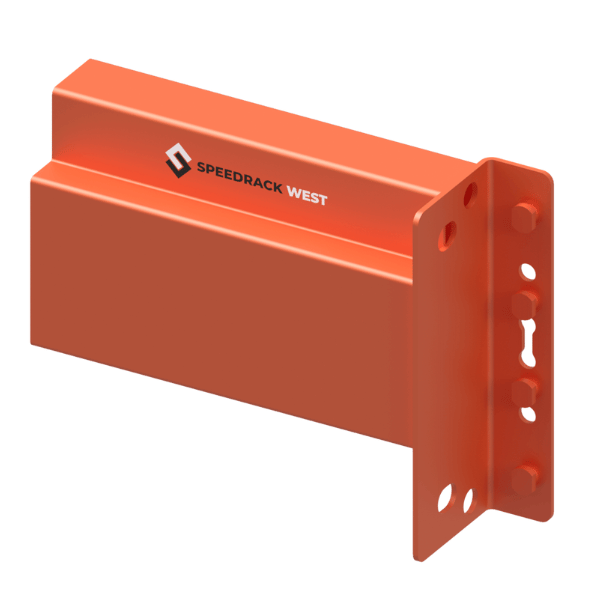

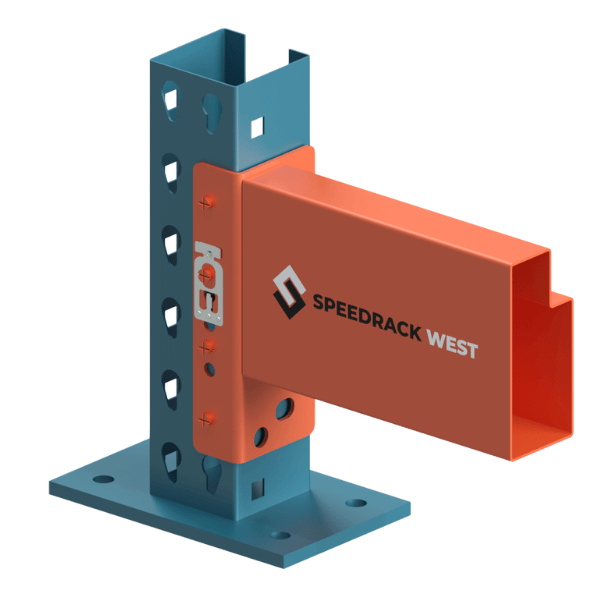

These beams feature a teardrop-style connector for tool-free installation into compatible upright frames. Beam elevations can be adjusted without bolted hardware.

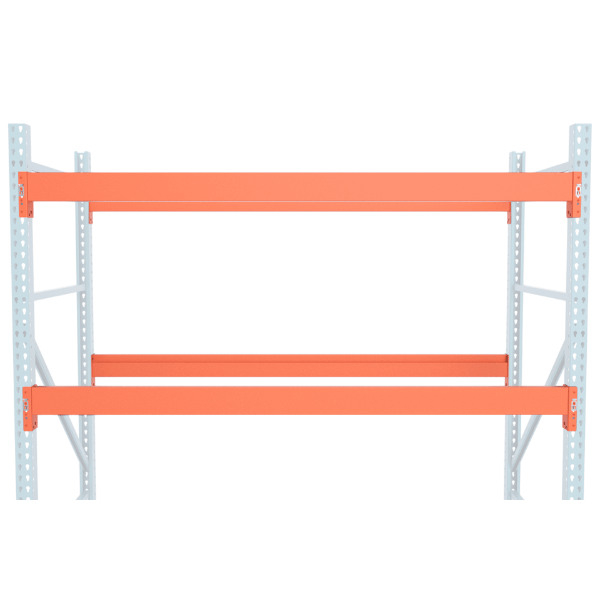

Two beams are required for each pallet rack shelf level. Decking, uprights, pallet supports, anchors, and additional rack accessories are sold separately.
Custom beam lengths may be available for specific warehouse layouts or non-standard pallet configurations.
Need Help Verifying Beam Capacity or Upright Compatibility?
Talk with a warehouse racking specialist before ordering. Incorrect beam sizing, incompatible uprights, or improper rack configuration can reduce system capacity and create safety risks.
📚 Frequently Asked Questions (FAQs)
Are pallet rack beam capacities rated per beam or per pair?
Are these pallet rack beams compatible with all pallet rack uprights?
Can wire decking be installed on these beams?
How many beams are required for one pallet rack level?
Can these beams be used in seismic zones?
