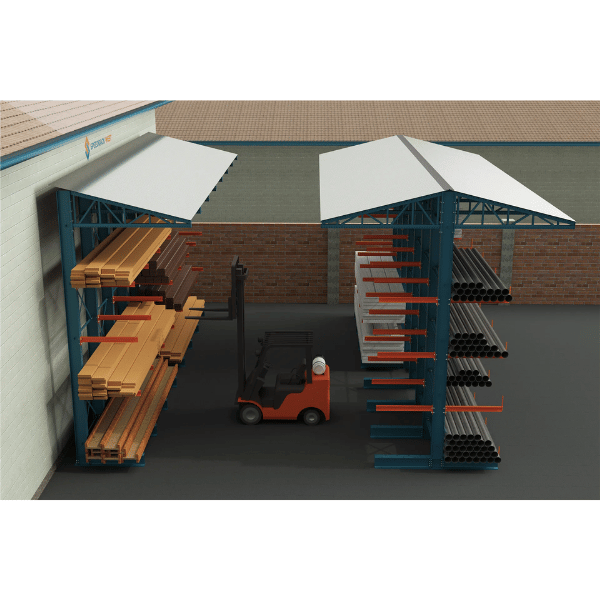

Covered Outdoor Storage for Lumber, Pipe, Steel, and Long Material Inventory
Outdoor cantilever racks with roof supports are designed for open-yard storage environments where long, bulky, or weather-sensitive materials must remain organized and accessible. These systems are commonly used in lumber yards, steel distribution facilities, fencing suppliers, pipe yards, and building material operations that require covered outdoor storage without sacrificing forklift accessibility.

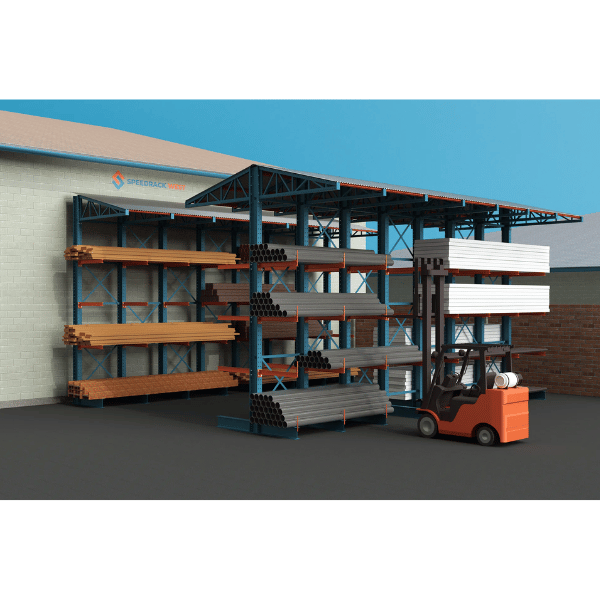

Unlike standard cantilever systems designed primarily for indoor use, outdoor cantilever racks include integrated roof support structures that allow customers to install their own roofing materials for rain, snow, and UV protection. The open-front cantilever design eliminates front column obstructions, allowing forklifts to load and unload long products efficiently from multiple directions.
This system is built using heavy-duty structural steel uprights and cantilever arms engineered for demanding outdoor conditions and high-capacity material storage.
What Is an Outdoor Cantilever Rack?

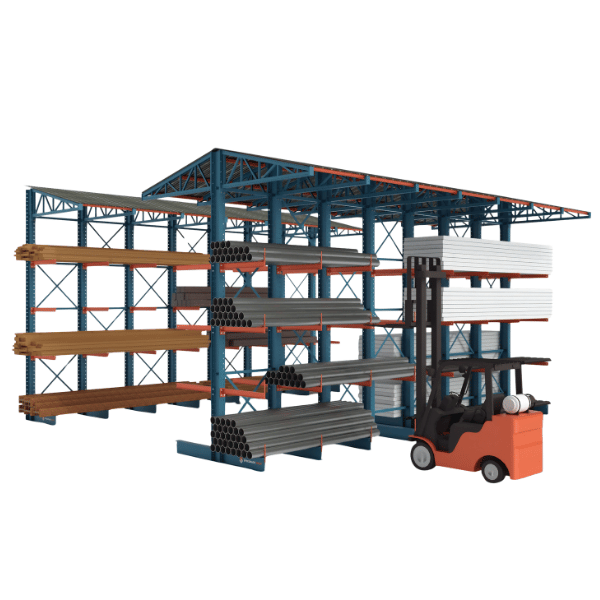

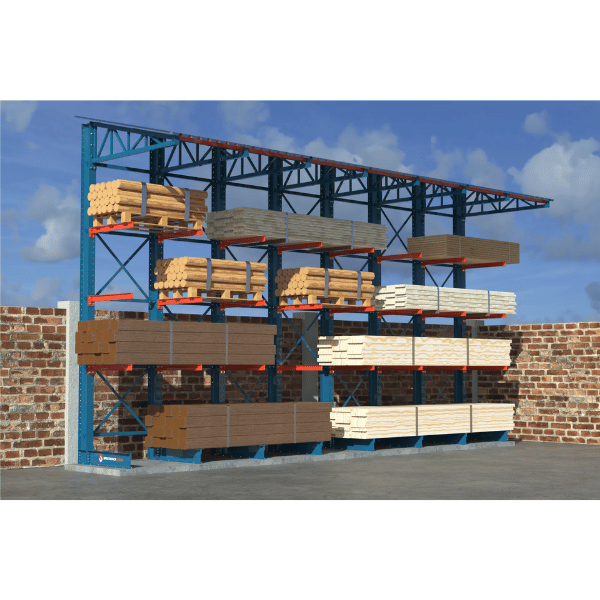

An outdoor cantilever rack is a structural storage system specifically engineered for exterior storage yards handling long or oversized inventory. The system uses cantilever arms extending from vertical uprights to support materials such as lumber, steel tubing, pipe, conduit, fencing components, decking, siding, and other long loads.

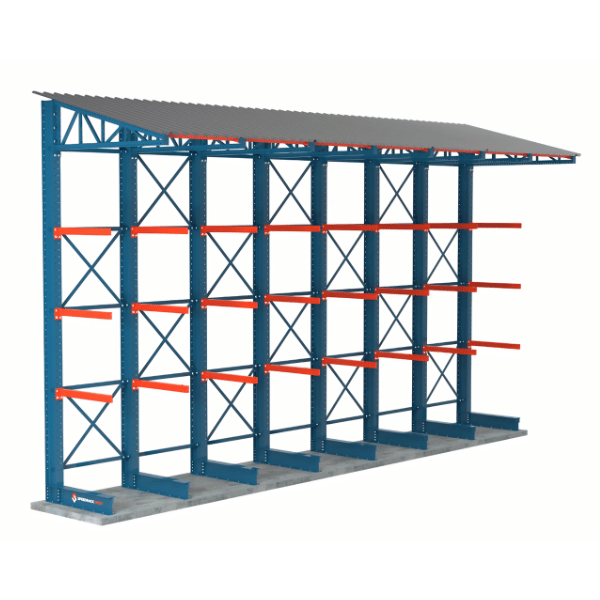

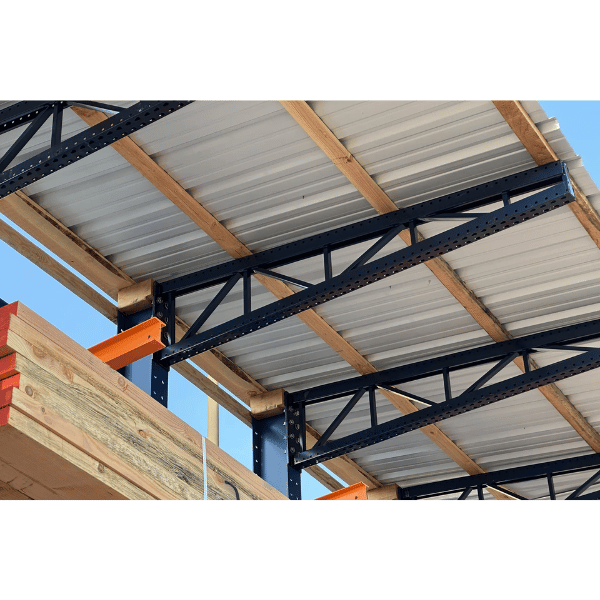

Roof support structures mounted at the top of each upright allow facilities to install customer-supplied roofing systems such as metal panels, PVC roofing, or tarp-based covers. This helps reduce direct weather exposure while maintaining open forklift access.
Unlike pallet racking, cantilever racks do not use front vertical columns between storage levels. This improves accessibility for long inventory and reduces loading restrictions during forklift operation.
Best Applications for Outdoor Cantilever Rack Systems

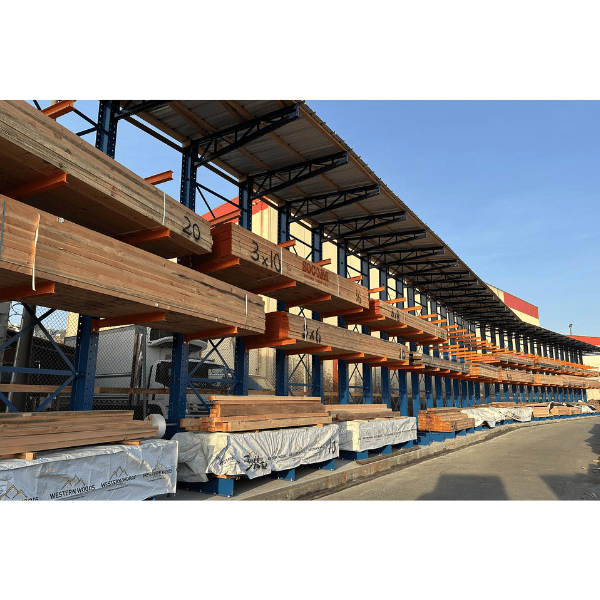

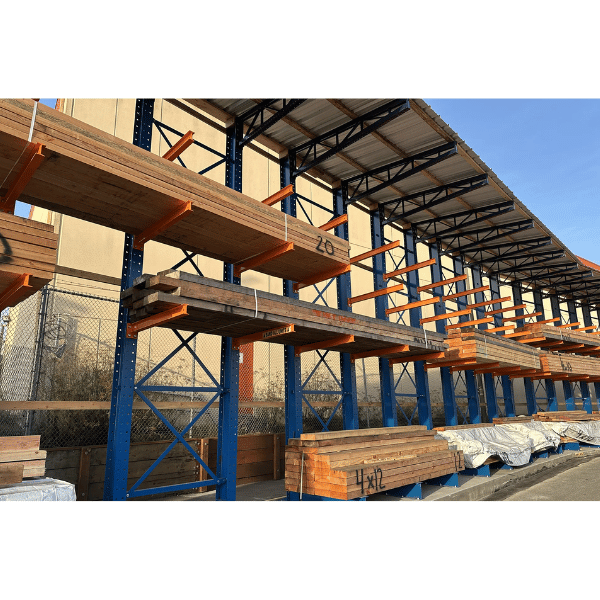

- Lumber yards storing dimensional lumber, engineered wood, trim, and sheet goods
- Steel distributors handling tubing, angle iron, flat bar, and structural steel
- Pipe and conduit yards storing PVC pipe, steel pipe, and irrigation materials
- Fencing suppliers storing rails, posts, pickets, and long bundled materials
- Building material distributors storing siding, decking, roofing products, and molding
- Outdoor contractor supply yards with weather-sensitive long inventory
When to Use Outdoor Cantilever Racking
Outdoor cantilever racks are best suited for facilities requiring covered outdoor storage for long materials that cannot be efficiently stored on standard pallet racking systems.
This system performs well in operations where:
- Inventory exceeds standard pallet dimensions
- Forklift side-loading access is required
- Materials must remain organized outdoors
- Weather exposure increases corrosion or product degradation risk
- Open-front access improves loading efficiency
- Storage layouts need future expansion capability
When NOT to Use Outdoor Cantilever Racking
Outdoor cantilever rack systems are not ideal for small carton storage, mixed-SKU picking environments, or operations requiring enclosed weatherproof storage.
- Do not use cantilever racks for standard palletized inventory with uniform pallet dimensions
- Do not use outdoor cantilever systems where enclosed climate-controlled storage is required
- Do not use systems without proper slab anchoring and engineering review
- Roofing materials are not included and must be supplied separately
- Uneven slab conditions or improper anchoring can reduce structural performance
Outdoor Cantilever Rack Specifications
| Arm Configuration | Arm Capacity | Max Levels | Total Capacity | Upright Capacity | Arm Length | Available Upright Heights |
|---|---|---|---|---|---|---|
| 48" x 4" Arms | 2,600 lbs | 4 | 10,400 lbs | 11,600 lbs | 48" | 144", 196" |
| 48" x 5" Arms | 3,000 lbs | 3 | 9,000 lbs | 11,600 lbs | 48" | 144", 196" |
| 60" x 4" Arms | 2,000 lbs | 5 | 10,000 lbs | 11,600 lbs | 60" | 144", 196" |
Additional Upright Heights Available: 216", 250", and 264" configurations available upon request.
Outdoor Structural Features
- Heavy-duty structural steel uprights and cantilever arms
- Roof support structures for customer-installed roofing systems
- Open-front forklift access with no front column obstructions
- Optional outdoor powder-coated or galvanized finishes
- Heavy-duty base plates for slab anchoring
- Modular expandable bay configurations
- Roof slope compatibility for rain runoff and snow shedding
- Designed for long-term outdoor exposure
Standard Cantilever Rack vs. Outdoor Cantilever Rack
| Standard Cantilever Rack | Outdoor Cantilever Rack |
|---|---|
| Primarily indoor use | Designed specifically for outdoor covered storage |
| No roof support structure | Integrated roof supports included |
| Best for dry warehouse environments | Designed for weather-sensitive inventory |
| Lower installation complexity | Requires roof planning and slab anchoring |
| Standard powder-coated finish | Optional outdoor-rated finishes available |
Operational Planning Considerations
Outdoor cantilever rack systems require planning around roof loading, slab anchoring, forklift access, snow load requirements, and local code compliance. Facilities should evaluate inventory dimensions, loading methods, and weather exposure conditions before selecting arm lengths, upright heights, and roof configurations.
Final engineering, anchoring requirements, seismic considerations, and roofing installation requirements should be reviewed by qualified professionals familiar with local building codes and outdoor structural systems.
Roofing Disclaimer

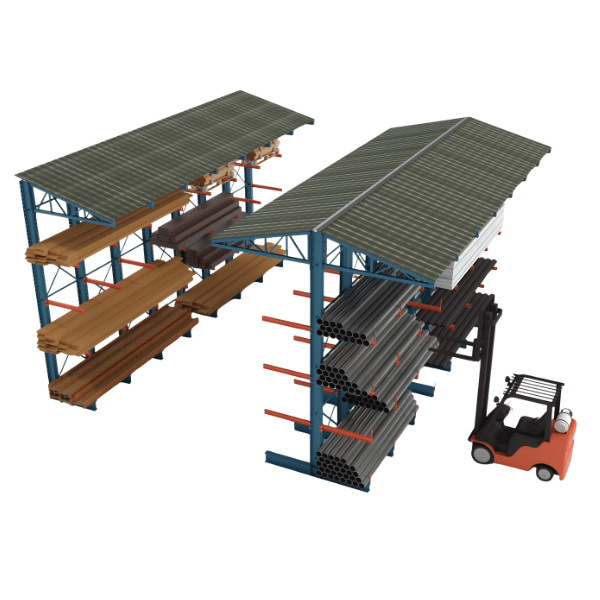

Roofing panels, roofing hardware, and roofing installation are not included. Roof support structures are supplied to accommodate customer-installed roofing systems including metal roofing, PVC panels, or tarp-based coverings.
Customers are responsible for final roofing selection, installation, and local building code compliance.
Request an Outdoor Cantilever Rack Quote
Speak with a warehouse storage specialist to determine the correct outdoor cantilever rack configuration based on your material dimensions, loading equipment, slab conditions, and weather exposure requirements.
