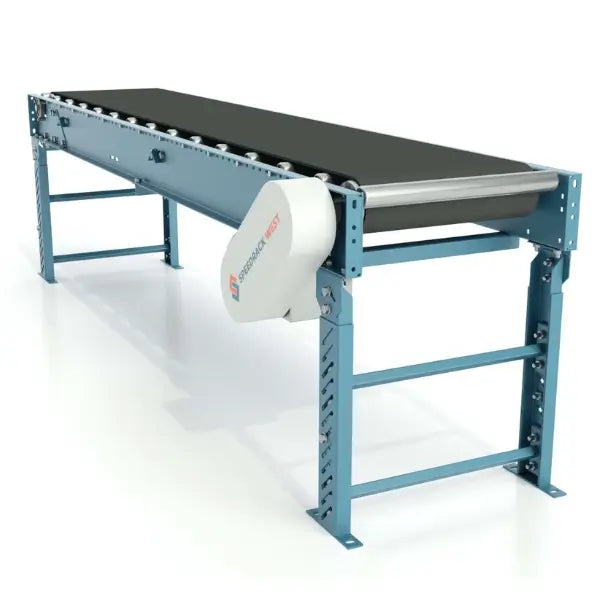

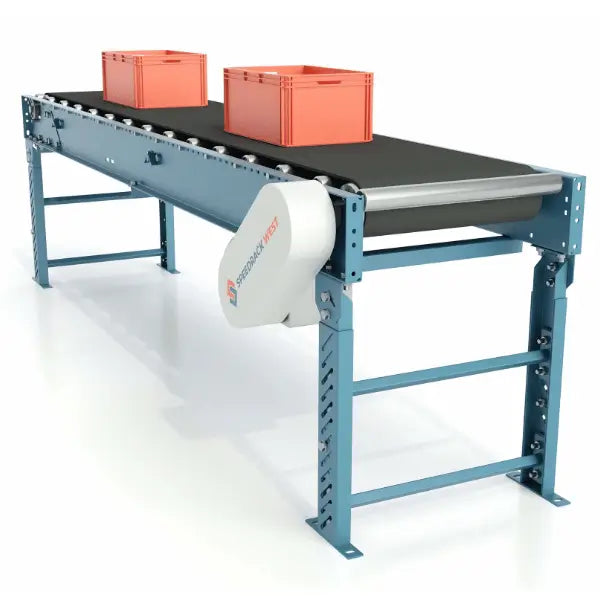

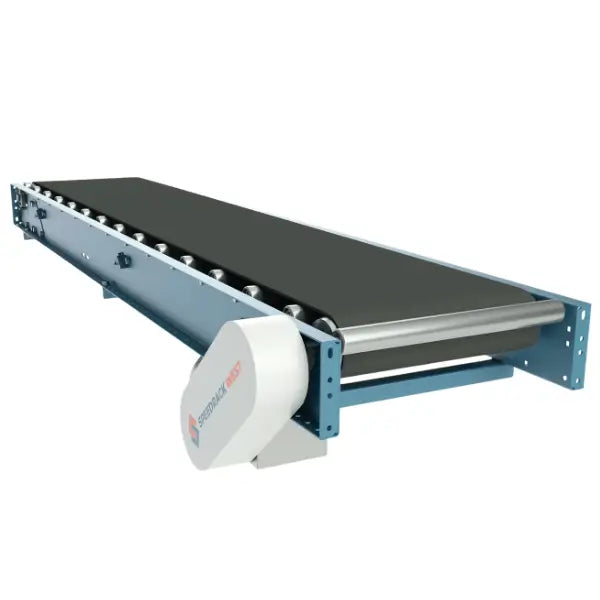

Medium Duty 20ft Slider Bed Belt Conveyor

Speedrack West | SKU: CV-700SB-18-20

$13,203.51

Shipping calculated at checkout.

Belt Width

18" 24" 36"

Handling & Use Requirements

Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.

Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.

Delivery & Freight Shipping

All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.

You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.

Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.

Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.

Add a stand out message for your customers

Need Help Specifying This Equipment?

Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.

Description

Medium Duty 20ft Slider Bed Belt Conveyor for Unit Handling

The Medium Duty 20ft Slider Bed Belt Conveyor is designed for transporting cartons, packages, totes, and assembly-line materials in warehouse and industrial environments. Common applications include packing lines, inspection stations, fulfillment operations, and general material handling workflows. The solid slider bed design supports stable product movement for medium duty handling applications. This conveyor is not designed for pallet transport, bulk aggregate handling, or high-impact loading environments.

Common Applications

Packing and shipping conveyor lines
Warehouse carton transport
Inspection and testing stations
Assembly line operations
Fulfillment and distribution centers
General industrial material handling

Key Features

Economical medium duty conveyor solution
Smooth slider bed supports stable product movement
Suitable for cartons, packages, and unit handling
Heavy-duty pulley bearings with cast iron housings
Custom conveyor sizes and configurations available
Optional reversible center drive configuration available
Optional electrical controls available
Optional conveyor supports sold separately

Not Designed For

Pallet handling applications
Bulk aggregate material transport
High-impact loading environments
Abrasive material handling
Washdown or corrosive environments
High-temperature product transport

Operational Considerations

Confirm product dimensions before selecting belt width
Verify throughput requirements before selecting drive configuration
Conveyor supports must match conveyor between-frame width
Reversible applications require optional center drive configuration
Electrical controls are optional and sold separately
Facility power requirements should be verified before ordering

Specifications

Belting	PVC-120 black
Drive Pulley	4″ dia. with 1-3/16″ dia. shaft or 8″ dia. with 1-7/16″ dia. shaft, both crowned and fully lagged
Tail Pulley	4″ dia., crowned, with 1-3/16″ dia. shaft
End Drive	Allows one-direction operation; optional center drive available for reversible applications
Take-Up	Screw type unit at tail pulley provides 12″ belt take-up
Bearings	Precision heavy-duty lubricated ball bearing units with cast iron housings
Return Rollers	1.9″ dia. x 16 ga. steel, model 196S, adjustable
Belt Speed	60 FPM constant
Bed	7″ x 12 ga. channel frame with 14 ga. slider bed for 9″–27″ BF; 12 ga. bed for 33″ BF and above with bed pan braces
Floor Supports	Optional and sold separately
Motor Drive	1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor
Roller Chain	Drive pulley powered by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives
Chain Take-Up	Provided on motor base
Safety Pop-Out Rollers	Standard on both ends, 1.9″ dia. x 16 ga. steel roller, model 196S
Electrical Controls	Optional

Available Belt Width Variants

Belt Width	Between Frame	Overall Width	Length
18″	21″	24″	20′
24″	27″	30″	20′
36″	39″	42″	20′

📚 Frequently Asked Questions (FAQs)

What products are best suited for a slider bed belt conveyor?

Slider bed belt conveyors are designed for cartons, totes, packaged goods, and consistent product sizes. Do not use them for pallets, sharp-edged materials, or bulk aggregate handling.

Can this conveyor run in both directions?

Standard end drive models operate in one direction only. Reversible operation requires an optional center drive configuration.

Are conveyor supports included with the conveyor?

Conveyor supports are sold separately. Supports must match the between frame width of the selected conveyor model.

Is this conveyor suitable for heavy-duty warehouse applications?

This conveyor is designed for medium-duty operations involving packaged products and assembly workflows. Heavy pallet transport and impact loading applications require heavier conveyor systems.

Can this conveyor be customized for specific layouts?

Custom conveyor widths, lengths, and drive configurations are available. Final system configuration depends on product type, throughput requirements, and facility layout constraints.
