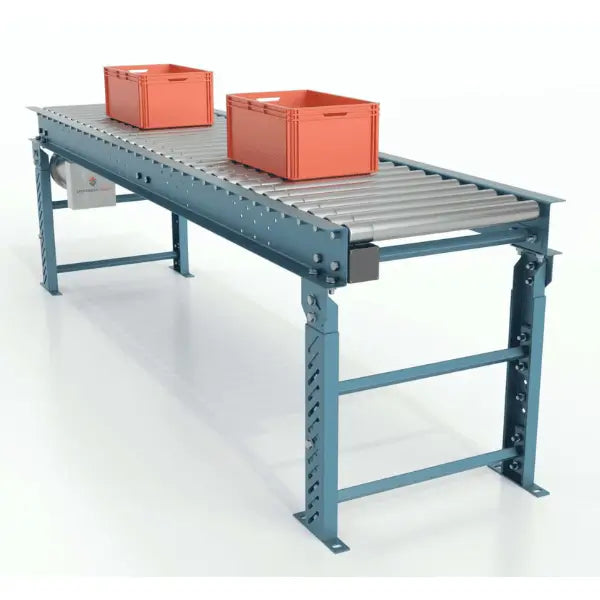

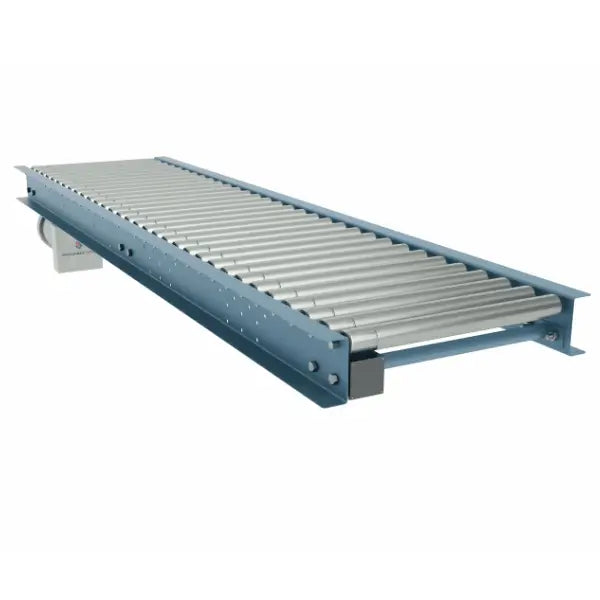

Line Shaft Conveyors for Efficient Carton and Package Handling Systems
Line Shaft Conveyors are powered roller conveyor systems designed for moving cartons, totes, boxes, and other lightweight unit loads throughout warehouses, distribution centers, fulfillment operations, and manufacturing facilities. Their simple mechanical design provides reliable product movement while reducing system complexity, maintenance requirements, and overall operating costs.
Unlike conveyor systems that require multiple motors or complex drive arrangements, line shaft conveyors use a single rotating steel driveshaft positioned beneath the rollers. Power is transferred through tensioned polyurethane drive bands, allowing multiple conveyor sections to operate from a single drive source. This makes line shaft conveyors one of the most economical solutions for package handling applications.
Line Shaft Conveyor Summary
- Conveyor Type: Powered Roller Conveyor
- Best For: Cartons, Totes, Boxes, and Lightweight Packages
- Typical Load Capacity: Up to 110 lbs.
- Speed Range: 25 to 120 FPM
- Drive Method: Steel Line Shaft with Polyurethane Drive Bands
- Primary Industries: Warehousing, Distribution, Ecommerce Fulfillment, Manufacturing
- Layout Flexibility: Modular System Design
What Is a Line Shaft Conveyor?
A line shaft conveyor is a powered roller conveyor that uses a rotating steel shaft running beneath the conveyor rollers. Polyurethane drive bands connect the shaft to individual rollers, transferring power throughout the conveyor system.
This design allows a single motor to power multiple conveyor sections while maintaining efficient product movement. Because the drive bands can slip under excessive resistance, line shaft conveyors provide a safer conveying method compared to some traditional powered roller conveyor designs.
Key Features
- Conveyor speeds available from 25 to 120 feet per minute
- 3/16" polyurethane drive belts with nominal 15 lbs. per roller drive capacity
- 1" C1018 cold rolled steel driveshaft construction

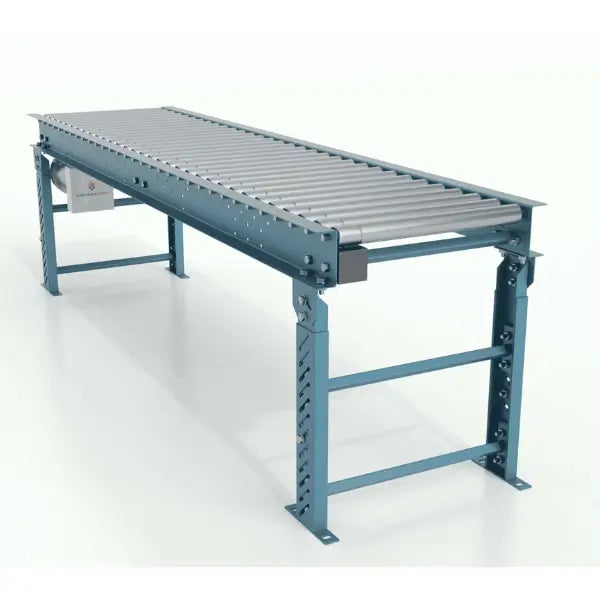

- Optional floor support configurations available
- Couplings can be installed at one end, both ends, or omitted based on system requirements
- Single drive can power multiple conveyor sections
- Modular design supports future expansion and reconfiguration
- Safe slip-drive technology helps reduce pinch-point hazards
- Available with optional controls and accessories for product flow management
Common Applications
- Ecommerce fulfillment centers
- Distribution centers
- Order picking operations
- Packing and shipping stations
- Carton transport systems
- Sortation conveyor systems
- Manufacturing assembly support lines
- Warehouse accumulation systems
- Package handling operations
Operational Benefits
- Reduces motor and control requirements across conveyor layouts
- Allows multiple conveyor sections to operate from a single drive source
- Lowers installation and operating costs compared to multi-motor systems
- Simplifies maintenance through fewer powered components
- Supports modular expansion as facility requirements change
- Provides safer operation through drive-band slip technology
- Improves package flow throughout warehouse and fulfillment operations
- Offers an economical solution for carton handling applications
When to Use a Line Shaft Conveyor
Line shaft conveyors are best suited for facilities handling lightweight cartons, boxes, totes, and packaged products that require continuous movement between operational areas.
- Carton handling systems
- Ecommerce fulfillment operations
- Distribution center transport lines
- Packing and shipping workflows
- Order consolidation systems
- Light-duty accumulation applications
- Facilities seeking a cost-effective powered conveyor solution
When Not to Use a Line Shaft Conveyor
Line shaft conveyors are not designed for heavy industrial products, palletized loads, or applications requiring high-torque conveying.
- Pallet handling systems
- Loads exceeding approximately 110 lbs.
- Heavy manufacturing applications
- High-torque conveyor requirements
- Irregular products lacking stable roller contact
- Steel fabrication and heavy industrial environments
- Applications requiring chain-driven roller systems
Specifications
| Conveyor Speed | 25 to 120 FPM |
| Drive Belt | 3/16" Polyurethane Belts |
| Roller Drive Capacity | Nominal 15 lbs. per Roller Drive |
| Driveshaft | 1" C1018 Cold Rolled Steel Shaft |
| Floor Supports | Optional |
| Couplings | One End, Both Ends, or None |
| Recommended Load Type | Cartons, Totes, Boxes, and Packages |
| Typical Load Weight | Up to 110 lbs. |
Who Typically Buys Line Shaft Conveyors?
- 3PL warehouse operators managing carton flow
- Ecommerce fulfillment centers seeking scalable conveyor layouts
- Distribution centers handling packaged goods
- Manufacturers moving lightweight products between workstations
- Operations managers upgrading manual transport processes
- Facilities seeking economical powered conveyor solutions
Speak With a Conveyor System Specialist
Conveyor selection should be based on product dimensions, load weights, throughput requirements, facility constraints, and future expansion plans. Contact our team to determine whether a line shaft conveyor is the appropriate solution for your operation before requesting a quote.
Frequently Asked Questions
What products are best suited for a line shaft conveyor?
Line shaft conveyors are designed for cartons, totes, boxes, and lightweight packages. Do not use them for pallets or heavy industrial products.
What is the maximum load for a line shaft conveyor?
Line shaft conveyors are typically used for loads up to 110 lbs. Heavier products require chain-driven or heavy-duty powered roller conveyors.
Can a single motor power multiple conveyor sections?
Yes. One drive can power multiple conveyor sections, reducing motor and control requirements throughout the system.
When should a line shaft conveyor not be used?
Do not use line shaft conveyors for palletized loads, high-torque applications, or heavy manufacturing environments. These applications require heavier-duty conveyor systems.
How does a line shaft conveyor compare to a chain-driven roller conveyor?
Line shaft conveyors are optimized for lightweight package handling. Chain-driven roller conveyors are designed for heavier products and palletized loads.
