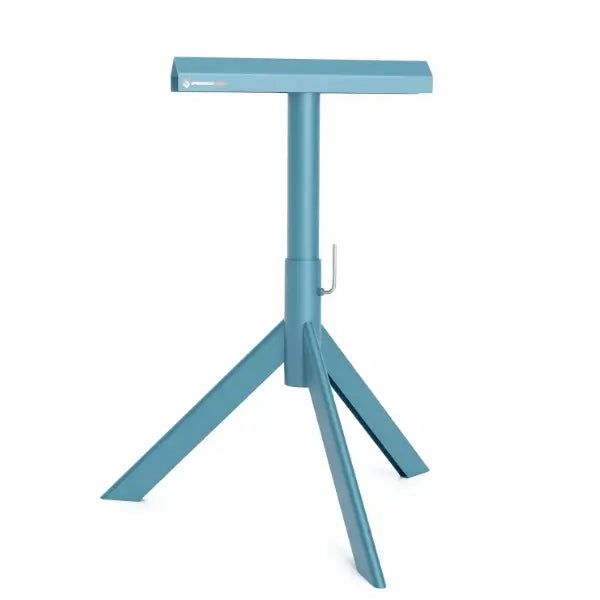

Light Duty 21-1/4" to 37-1/4" Tripod Supports

Speedrack West | SKU: CV-T-12-40

$200.31

Shipping calculated at checkout.

Width Options

12" 18" 24"

Handling & Use Requirements

Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.

Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.

Delivery & Freight Shipping

All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.

You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.

Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.

Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.

Add a stand out message for your customers

Need Help Specifying This Equipment?

Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.

Description

Portable Conveyor Support Stands for Temporary and Flexible Conveyor Setups

Light Duty Tripod Supports are designed to provide stable, adjustable support for wheel conveyors and 138 gravity roller conveyors in temporary, portable, or frequently reconfigured material handling applications. With an adjustable height range of 21-1/4" to 37-1/4" and a 400 lb. capacity, these supports allow warehouses, distribution centers, shipping departments, and manufacturing facilities to quickly set up conveyor lines without permanent floor-mounted supports.

Constructed from durable 12-gauge steel, each support features a 1-9/16" x 15/16" top channel welded to a 1" inside diameter pipe for dependable performance in light-duty conveyor applications. The tripod design provides stability while allowing fast installation, adjustment, and relocation as operational requirements change.

Key Features

Adjustable height range from 21-1/4" to 37-1/4"
Supports loads up to 400 lbs.
Designed for wheel conveyors and 138 gravity roller conveyors
Fast setup for temporary or portable conveyor installations
Durable 12-gauge steel tripod construction
1-9/16" x 15/16" top channel for secure conveyor support
Welded to a 1" inside diameter pipe for added strength
Lightweight design allows easy relocation and reconfiguration

Available Variants

SKU	Conveyor Width	Adjustable Height Range
CV-T-12-40	12"	21-1/4" to 37-1/4"
CV-T-18-40	18"	21-1/4" to 37-1/4"
CV-T-24-40	24"	21-1/4" to 37-1/4"

Specifications

Product Type	Light Duty Tripod Support
Capacity	400 lbs.
Adjustable Height Range	21-1/4" to 37-1/4"
Top Channel Size	1-9/16" x 15/16"
Top Channel Thickness	12 Gauge
Pipe Diameter	1" Inside Diameter
Base Construction	12 Gauge Steel
Support Style	Tripod
Adjustability	Adjustable Height
Compatible Conveyor Types	Wheel Conveyors, 138 Gravity Series Roller Conveyors
Installation Type	Temporary or Portable Applications

Common Applications

Warehouse packing and shipping areas
Temporary conveyor lines
Distribution center sorting operations
Manufacturing assembly and packaging stations
Seasonal material handling operations
Portable conveyor systems
Short-term production line expansions
Conveyor layouts that require frequent repositioning

When to Use These Tripod Supports

Choose these supports when your operation requires adjustable conveyor elevations, temporary conveyor installations, or portable conveyor systems that must be relocated or reconfigured regularly.

Their lightweight design and adjustable height range make them suitable for gravity conveyor applications where flexibility and fast setup are important.

When Not to Use These Tripod Supports

These supports are not intended for heavy-duty conveyor systems, permanent conveyor installations, or applications requiring support capacities greater than 400 lbs.

Operations with continuous heavy loads or fixed conveyor layouts should consider permanent conveyor support systems designed for higher capacities and long-term installation.

📚 Frequently Asked Questions (FAQs)

Can these tripod supports be used for permanent conveyor installations?

No. These supports are designed primarily for temporary and portable conveyor setups. Permanent installations typically require fixed conveyor supports.

What conveyor types are compatible with these tripod supports?

These supports are designed for wheel conveyors and 138 gravity series roller conveyors. Do not use them with unsupported conveyor styles or systems exceeding the rated capacity.

What is the maximum load capacity of these tripod supports?

Each support is rated for up to 400 lbs. Do not exceed the stated capacity, as doing so may compromise conveyor stability and safety.

Are these supports suitable for heavy-duty conveyor applications?

No. These are light-duty supports intended for lighter conveyor loads. Heavy-duty applications require supports engineered for higher capacities.

When should adjustable tripod supports be selected instead of fixed supports?

Choose tripod supports when conveyor layouts change frequently or temporary installations are required. Fixed supports are better suited for permanent conveyor systems.
