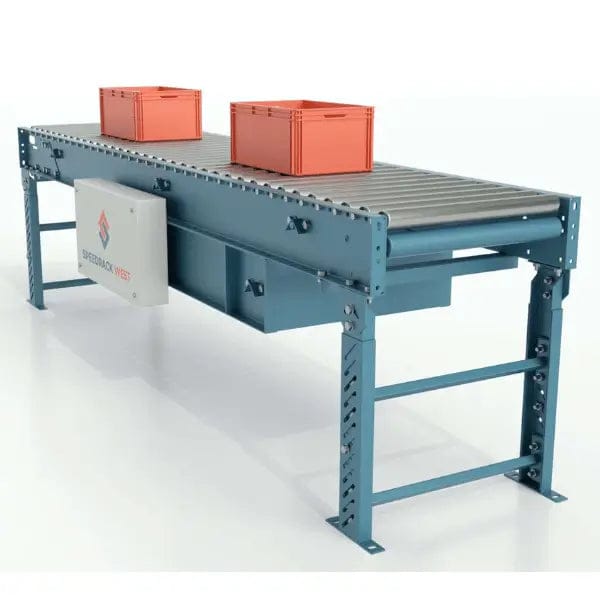

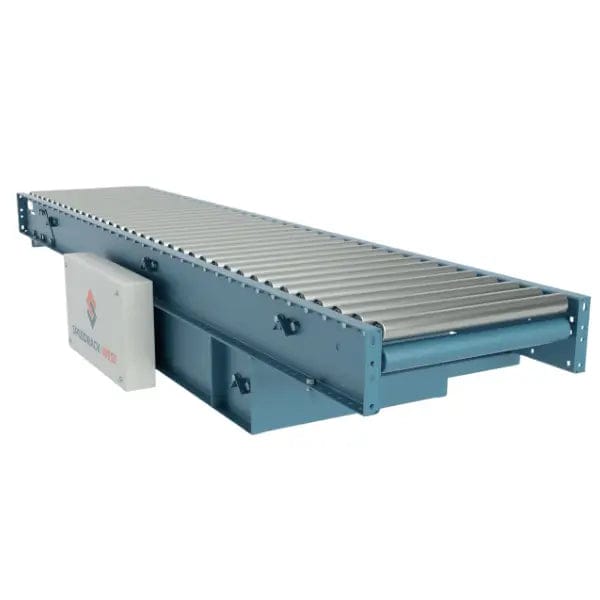

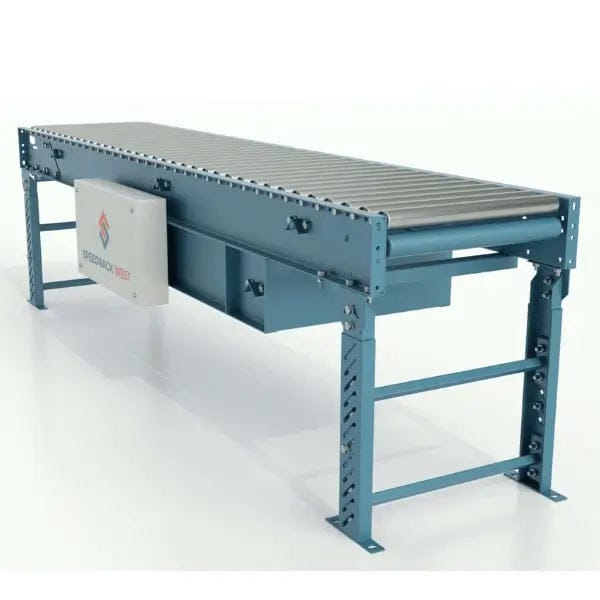

Heavy Duty Zero Pressure Accumulation Conveyors

Speedrack West | SKU: CV-SZ251ZPA-39-4-13

$43,019.07

Shipping calculated at checkout.

Length Variants

13ft. 23ft. 43ft.

Handling & Use Requirements

Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.

Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.

Delivery & Freight Shipping

All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.

You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.

Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.

Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.

Add a stand out message for your customers

Need Help Specifying This Equipment?

Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.

Description

Heavy-Duty Accumulation Conveyor Systems for Safe Product Separation

Heavy Duty Zero Pressure Accumulation Conveyors are designed to accumulate heavy products without product-to-product contact. They are used in manufacturing facilities, distribution centers, 3PL warehouses, pallet handling operations, and industrial processing environments where controlled material flow is required.

Unlike conventional accumulation conveyors that allow products to touch during accumulation, zero pressure accumulation technology creates independent zones that stop and release products individually. This helps reduce product damage, improve flow control, and increase throughput in demanding material handling applications.

Key Features

Space-saving accumulation design
Wide functionality across industrial applications
Increased throughput and controlled material flow
Zero product-to-product contact during accumulation
Independent accumulation zone control
Photoelectric sensor technology
Suitable for castings, drums, containers, and heavy pallet loads
Heavy-duty chain-driven conveyor design
Easy installation and simplified maintenance

Typical Applications

Manufacturing facilities
Distribution centers
Third-party logistics warehouses
End-of-line packaging operations
Pallet transport applications
Drum and container conveying systems
Production staging and buffering areas

How Zero Pressure Accumulation Works

Zero pressure accumulation conveyors divide the conveying surface into independently controlled zones. Each zone monitors product presence using photoelectric sensors. When a downstream zone is occupied, upstream products stop before making contact.

Specifications

Specification	Details
Conveyor Type	Heavy Duty Zero Pressure Accumulation Conveyor
Accumulation Method	Zero Pressure Accumulation
Drive Type	Roll-to-Roll Chain Driven
Zone Control	Independent Zone Operation
Zone Length	5 ft Zones
Sensor Type	Photoelectric Sensors
Product Contact During Accumulation	None
Product Release	Individual Product Singulation
Orientation	Horizontal Conveyor Configuration
Suitable Load Types	Castings, Drums, Containers, Heavy Pallet Loads
Installation	Easy Installation Design
Maintenance	Simplified Maintenance Requirements

When to Use Heavy Duty Zero Pressure Accumulation Conveyors

Products must remain separated during accumulation
Product damage from contact must be eliminated
Heavy palletized loads are being conveyed
Throughput and flow control are operational priorities
Automated product release is required
Material handling systems require accumulation without back pressure

When This Conveyor May Not Be the Best Choice

Product-to-product contact is acceptable
A simple gravity conveyor can achieve the required flow
Budget is the primary purchasing consideration
Accumulation functionality is not required
Lightweight package handling is the primary application
Continuous non-accumulating transportation is the only requirement

📚 Frequently Asked Questions (FAQs)

What is the advantage of a zero pressure accumulation conveyor?

Zero pressure accumulation prevents products from touching during accumulation. Use it when product damage, flow control, or load separation is critical.

Can this conveyor handle palletized loads?

Yes. Heavy Duty Zero Pressure Accumulation Conveyors are designed to safely accumulate heavy pallet loads, drums, containers, and industrial products.

Why are photoelectric sensors used instead of sensor rollers?

Photoelectric sensors eliminate many detection issues associated with wooden pallets. They provide more reliable zone control in heavy-duty applications.

When should I choose a zero pressure conveyor instead of a minimum pressure conveyor?

Choose zero pressure accumulation when products cannot contact each other. Minimum pressure systems allow controlled back pressure between accumulated products.
