Description
Description
Lightweight Package Conveying for Fulfillment, Packing, and Shipping Operations
Gravity Wheel Conveyor Systems are designed for lightweight package movement in warehouses, packing stations, shipping lanes, assembly areas, and fulfillment operations where powered conveyor systems are unnecessary or cost-prohibitive.
These systems use free-spinning skate wheels to move cartons and totes using gravity or manual push. They are best suited for flat-bottom cartons, lightweight packages, and temporary or flexible conveyor layouts.
Unlike gravity roller conveyors, gravity wheel systems are optimized for smaller, lighter loads and tighter conveyor curves. They should not be used for pallets, unstable loads, soft-bottom packaging, or products with uneven weight distribution.
Why Warehouses Use Gravity Wheel Conveyor Systems
- Low-cost carton flow without powered systems
- Fast installation and layout flexibility
- Lightweight package movement between stations
- Temporary conveyor lines during peak season
- Curved conveyor routing in shipping or packing areas
- Portable conveyor sections for flexible workflows
When to Use Gravity Wheel Conveyors
- Corrugated cartons with rigid bottoms
- Plastic totes and bins
- Lightweight packaged products
- Small parcel movement
- Manual picking and packing operations
- Short-to-medium conveyor runs
When Not to Use Gravity Wheel Conveyors
- Pallet movement
- Soft-bottom bags or poly mailers
- Irregularly shaped products
- Heavy industrial components
- Products with unstable weight distribution
- High-impact loading applications
Packages with soft or flexible bottoms will sag between wheels and lose flow consistency. Heavy loads may damage wheel assemblies or reduce conveyor performance over time.
Straight vs Curved Gravity Wheel Conveyors

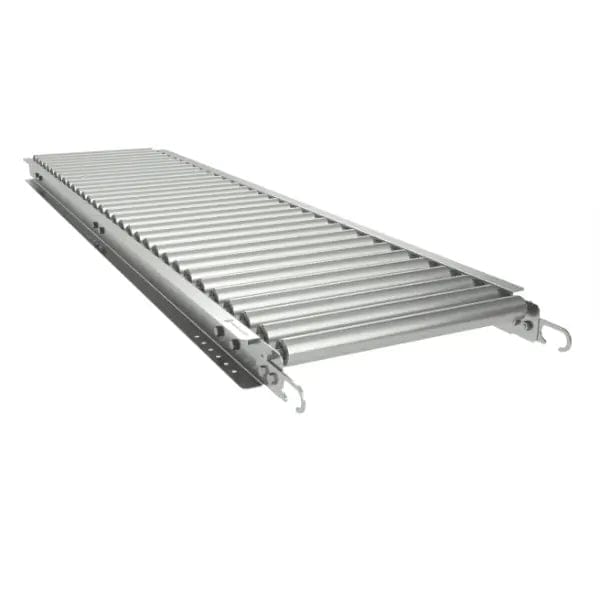

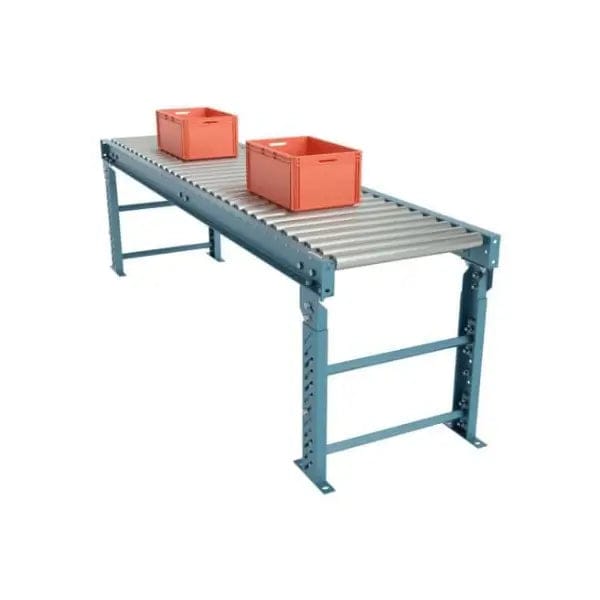

Straight Sections
Straight gravity wheel conveyor sections are used for packing lines, shipping lanes, carton transfer, pick module flow, and workstation movement.

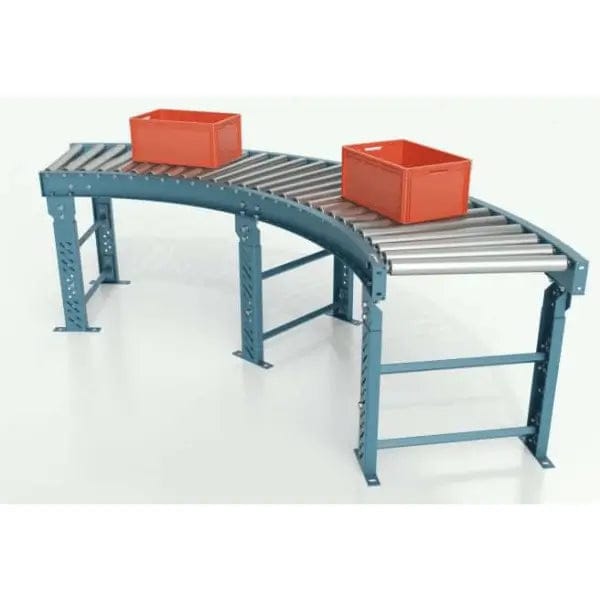

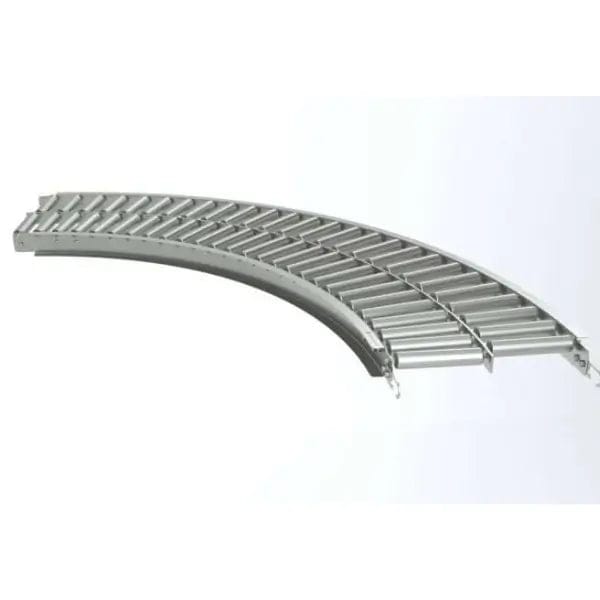

Curved Sections
Curved gravity wheel conveyors route cartons around packing stations, structural columns, shipping areas, sortation zones, and congested warehouse layouts.
Curves require stable cartons with consistent bottoms. Irregular packages often drift or jam in curved sections.
Operational Requirements
- Flat and rigid product bottoms
- Even weight distribution
- Sufficient wheel contact
- Stable packaging geometry
- Consistent carton dimensions
Gravity Wheel Conveyor Advantages
- No motors or electrical power required
- Lower acquisition cost than powered systems
- Simple installation and expansion
- Lightweight and portable configurations available
- Flexible layout capability
- Minimal maintenance requirements
Gravity Wheel Conveyor Limitations
- Not designed for automated fulfillment systems
- Not suitable for heavy-duty industrial transport
- Not ideal for high-speed accumulation
- Not intended for precise product indexing
- Not recommended for extreme incline applications
- Not ideal for dirty or debris-heavy environments
Gravity Wheel Conveyor Specifications
| Specification | Details |
|---|---|
| Conveyor Type | Gravity Skate Wheel Conveyor |
| Load Type | Cartons, totes, lightweight packages |
| Wheel Material | Steel or galvanized steel |
| Frame Material | Steel |
| Configuration | Straight and curved sections |
| Available Width | 30 in. |
| Power Requirement | None |
| Installation Type | Floor-supported or portable |
| Expansion Capability | Modular system design |
Important System Selection Considerations
Gravity wheel conveyors are often selected incorrectly because they appear visually similar to gravity roller conveyors. However, wheel conveyors are designed specifically for lightweight carton flow and will fail in heavy-load applications.
Operations handling pallets, heavy cartons, drums, unstable packaging, or non-rigid products should typically use gravity roller or powered conveyor systems instead.
Selecting the wrong conveyor architecture can create product jams, unstable flow, wheel damage, reduced throughput, and higher labor intervention.
