Galvanized Roller Gravity Conveyor – 90 Degree Curved Sections

Speedrack West | SKU: CV-196GC-15-H-90

$1,529.22

Shipping calculated at checkout.

Handling & Use Requirements

Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.

Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.

Delivery & Freight Shipping

All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.

You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.

Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.

Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.

Add a stand out message for your customers

Need Help Specifying This Equipment?

Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.

Description

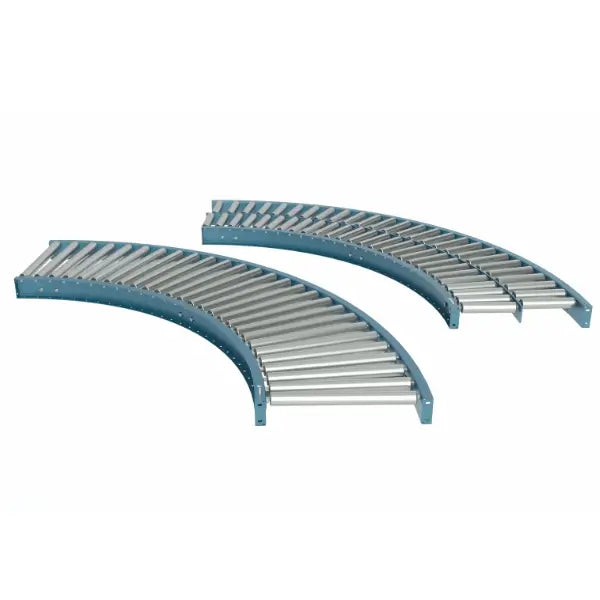

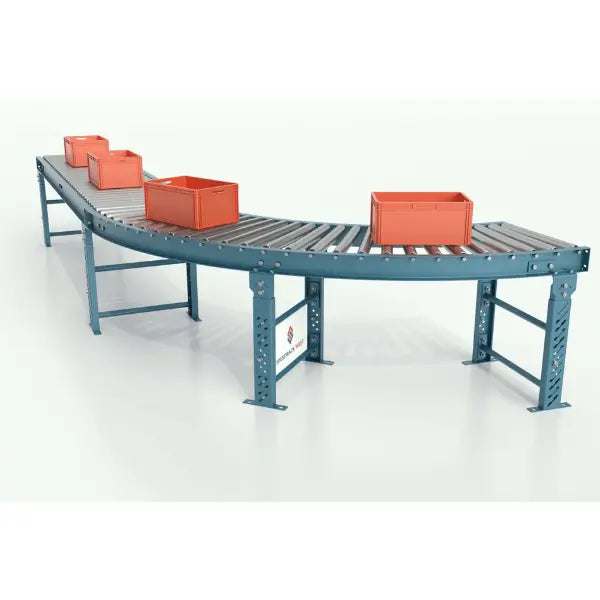

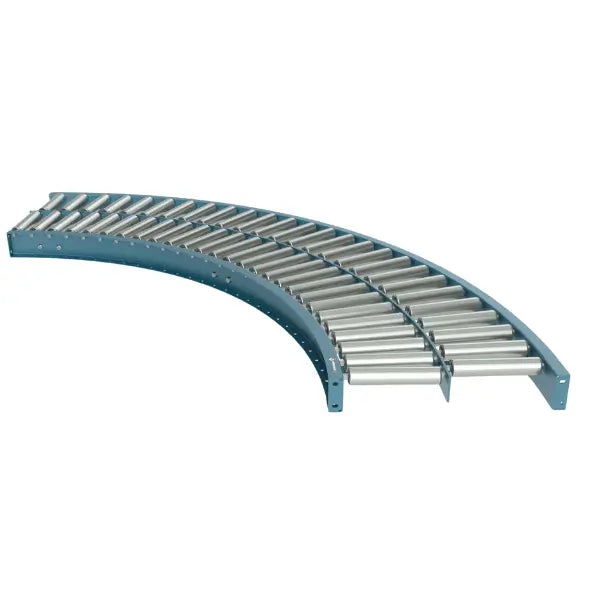

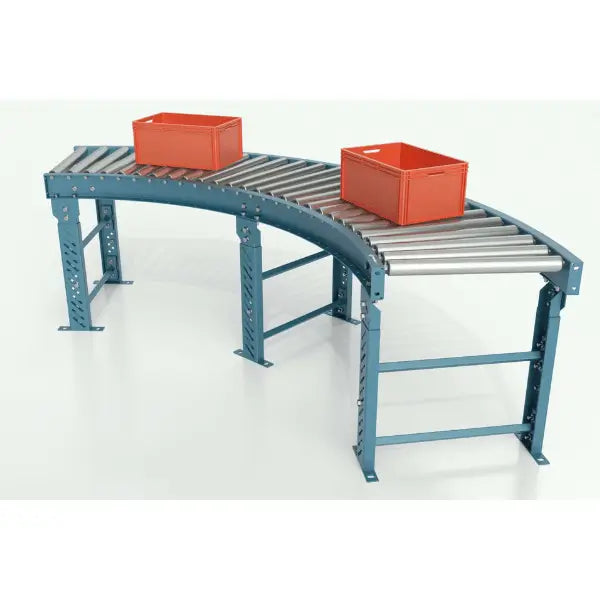

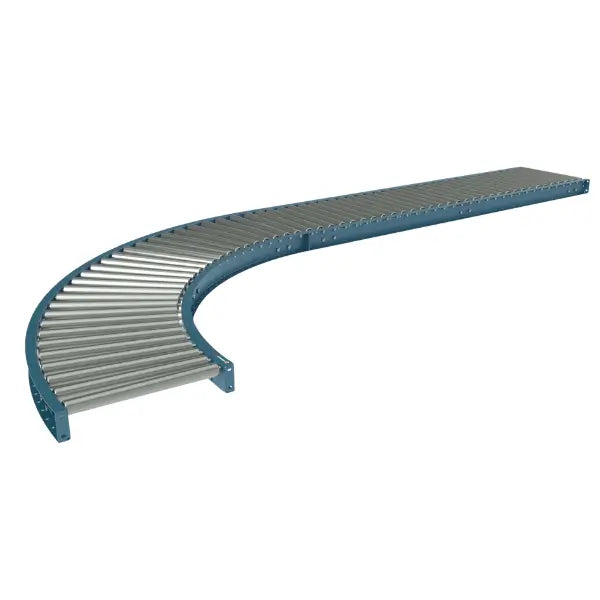

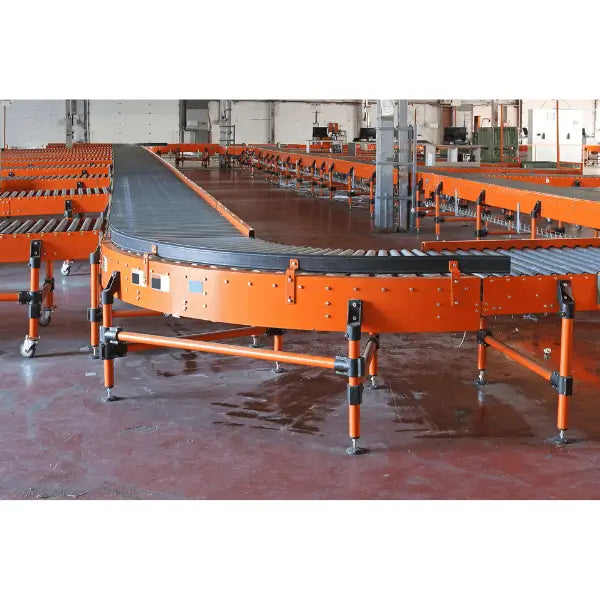

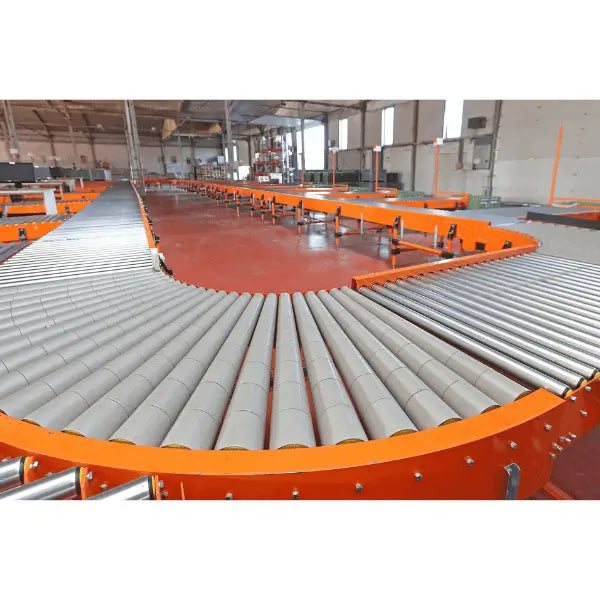

Galvanized Roller Gravity Conveyor 90 Degree Curved Sections

Galvanized Roller Gravity Conveyor – 90 Degree Curved Sections are designed for medium-duty material handling applications requiring smooth directional product flow without powered conveyor systems. These conveyor curves are commonly used in warehouses, fulfillment operations, packaging lines, and distribution centers for cartons, totes, and packaged products. Galvanized rollers provide improved corrosion resistance, while multiple Between Frame (BF) widths support flexible conveyor layouts and operational compatibility.

Key Features

Galvanized steel rollers for improved corrosion resistance
Designed for medium-duty gravity conveyor applications
90 degree curved conveyor configuration
Available Between Frame widths: 15", 21", 27", 33", and 51"
Available in 45° and 90° curve configurations
Spring-loaded axle design for simplified roller maintenance
Compatible with straight gravity conveyor sections

Best Fit Applications

Warehouse conveyor flow lines
Ecommerce fulfillment operations
Shipping and packing stations
Carton and tote transfer applications
Distribution center conveyor routing
Manufacturing material handling areas

Not Recommended For

Pallet handling applications
Unstable or irregularly shaped loads
Products with uneven bottom surfaces
High-speed automated conveyor systems
Fully wet, chemical, or washdown-intensive environments
Powered conveyor applications requiring speed control

How It Works

Gravity conveyor curves use free-spinning rollers mounted within a curved frame to redirect product flow through a 90 degree conveyor path. Products move by manual push force or gravity-assisted movement depending on conveyor elevation and system layout.

Specifications

Rollers: 1.9" diameter x 16 gauge galvanized steel tubing, model 196G, with smooth swaged ends.
Axles: 7/16" hex shaft, spring loaded.
Frames: Formed steel painted channel: 3-1/2" x 1-1/2" x 10 gauge set high; 4-1/2" x 1-1/2" x 10 gauge set low.
Couplings: Butt type.
Bearings: Integral plain ball bearings, zinc plated, grease packed.
Frame Capacity: 250 lbs. per roller, or 1300 lbs. maximum distributed live load per 10' section with supports at 10' centers; 3200 lbs. at 5' centers.
Optional Frame: 4" @ 5.4 lbs. structural steel channel frame. Rollers 3/16" high; dimensions may vary due to structural tolerances.

Operational Considerations

Proper conveyor curve selection depends on product dimensions, load stability, weight distribution, and system layout. Between Frame width should be selected to provide adequate clearance while maintaining stable product tracking through the curve.

📚 Frequently Asked Questions (FAQs)

What products work best on galvanized gravity conveyor curves?

These conveyor curves are designed for cartons, totes, cases, and packaged products with stable, flat bottom surfaces. Do not use for unstable or irregularly shaped loads.

Are galvanized gravity conveyor curves suitable for wet environments?

Galvanized rollers provide improved corrosion resistance compared to painted rollers. They are not intended for fully wet, chemical, or washdown-intensive environments.

Can these conveyor curves be used in powered conveyor systems?

These conveyor sections are designed for non-powered gravity conveyor applications. Do not use where controlled powered movement or automated speed control is required.

How do I choose the correct Between Frame width?

Between Frame width should exceed the product width while maintaining stable product tracking through the curve. Undersized conveyor widths can create product jams and unstable flow.
