Galvanized Roller Gravity Conveyor – 45 Degree Curved Sections

Speedrack West | SKU: CV-196GC-15-H-45

$817.71

Shipping calculated at checkout.

Handling & Use Requirements

Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.

Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.

Delivery & Freight Shipping

All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.

You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.

Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.

Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.

Add a stand out message for your customers

Need Help Specifying This Equipment?

Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.

Description

Medium-Duty Gravity Conveyor Curves for Carton and Tote Flow

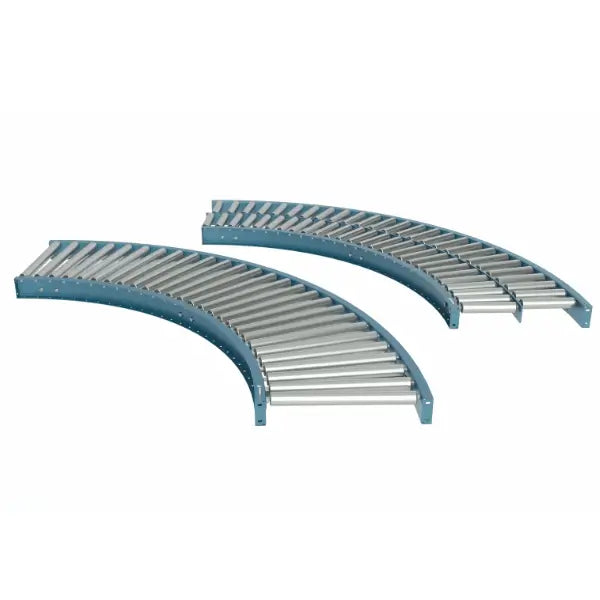

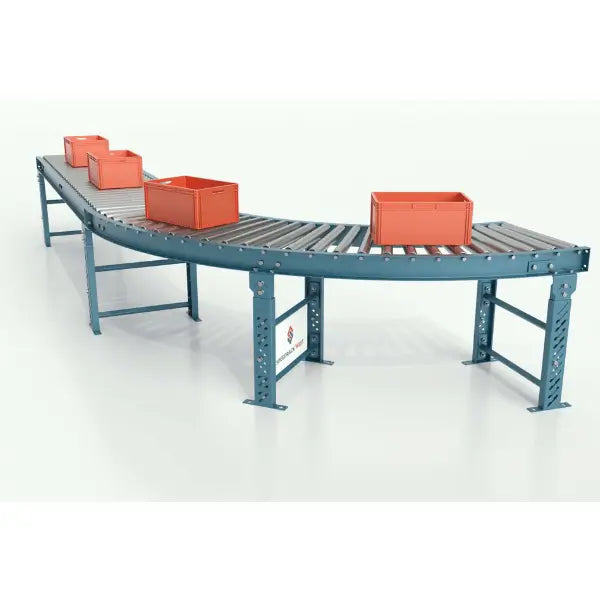

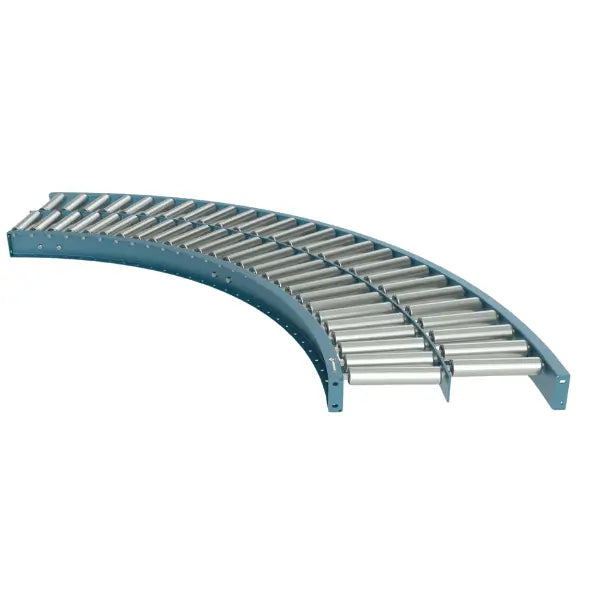

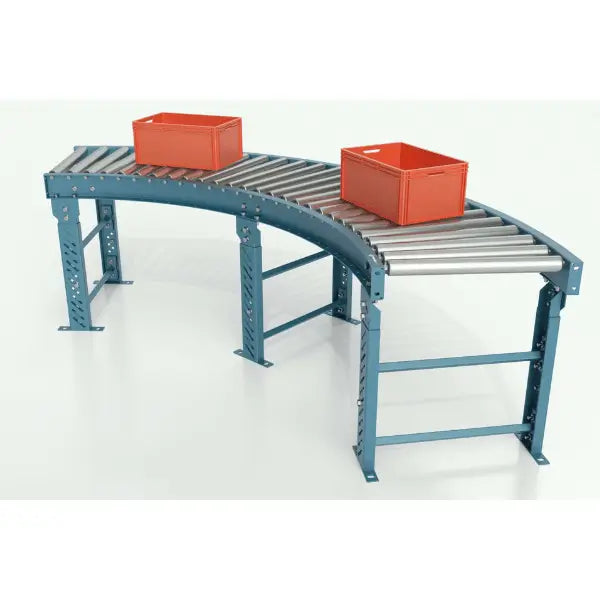

Galvanized Roller Gravity Conveyor 45 degree curved sections are designed for medium-duty carton, tote, and package handling where warehouse conveyor layouts require directional flow changes without powered equipment.

These curved gravity conveyor sections are commonly used in ecommerce fulfillment centers, shipping stations, packaging lines, warehouse pick modules, and distribution operations handling stable-bottom cartons and cases.

Note: Do not use these conveyor curves for pallet movement, impact loading zones, powered accumulation, or irregular products that cannot maintain stable roller contact.

Key Features

Galvanized steel rollers for improved corrosion resistance
Medium-duty gravity conveyor design for carton and tote handling
Available in 15", 21", 27", 33", and 51" between frame widths
45 degree curved sections for directional conveyor routing

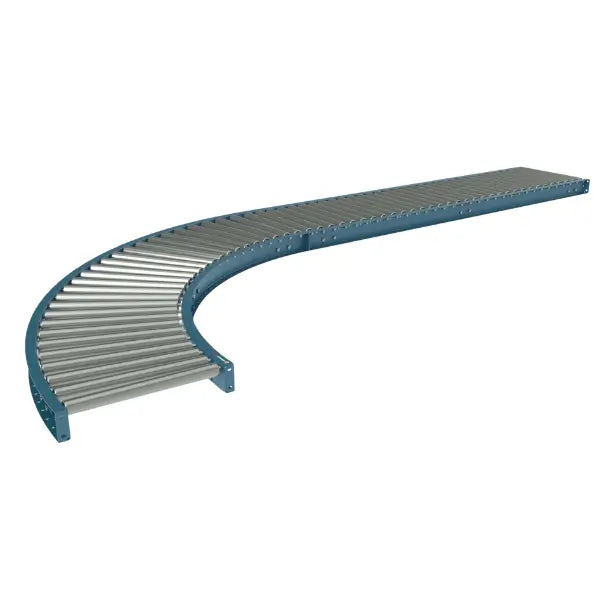

Compatible with straight gravity conveyor sections
Spring-loaded axle design for simplified maintenance
Grease-packed ball bearings for smooth roller operation
Available in set high and set low frame configurations
Optional structural steel channel frame available
Also available in 90 degree curve configurations

Common Warehouse Applications

These gravity conveyor curved sections are commonly used in:

Ecommerce fulfillment centers
Carton flow conveyor lanes
Shipping and packing stations
Warehouse pick modules
Distribution center routing lanes
Manual sortation support areas
Tote handling systems
Assembly support operations
Packaging workstations
Manufacturing support conveyor lines

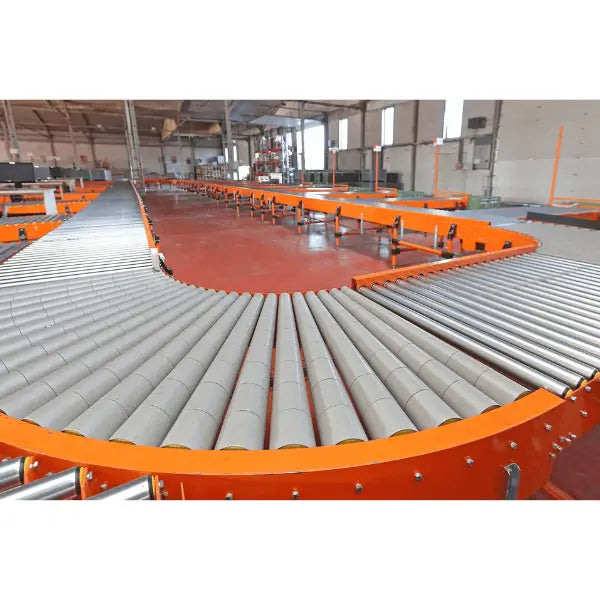

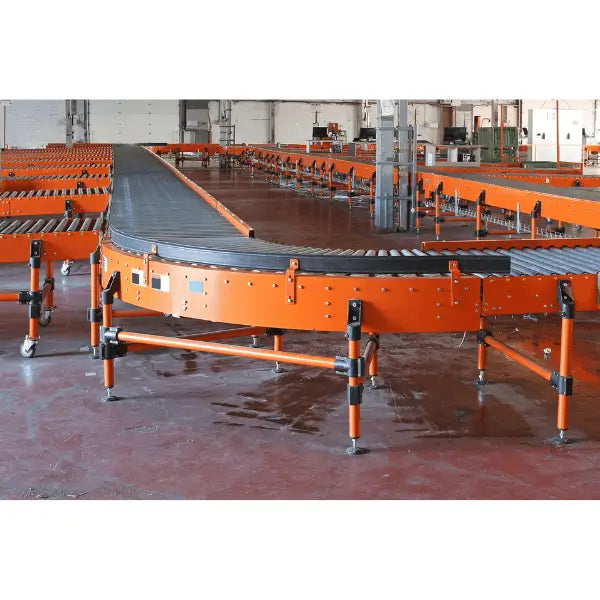

Curved conveyor sections are frequently used to route products around workstations, packing stations, structural columns, and directional warehouse flow changes without requiring powered conveyor equipment.

Compatible Conveyor Layouts

These curved conveyor sections are commonly integrated with:

Straight gravity conveyor sections
Manual packing lanes
Carton flow workstations
Warehouse conveyor spur lines
Shipping conveyor lanes
Pick and pack stations
Inspection stations
Distribution staging lanes

Correct conveyor integration depends on product dimensions, conveyor elevation, support spacing, and overall warehouse flow design.

Conveyor Selection Considerations

Correct gravity conveyor curve selection depends on:

Product bottom stability
Carton dimensions
Product weight distribution
Conveyor elevation
Directional flow requirements
Support spacing
Throughput requirements
Available floor space
Conveyor integration points

Products with uneven, flexible, open-bottom, or unstable bases may not travel consistently through curved gravity conveyor sections.

Best For

Cartons
Totes
Packaged products
Medium-duty warehouse flow
Manual fulfillment operations
Distribution conveyor routing
Shipping station conveyor lines
Pick module support lanes
Moisture-prone warehouse environments

Not Recommended For

Pallet handling
Forklift loading zones
Powered accumulation systems
High-impact loading areas
Extremely heavy loads
Loose products without stable bottoms
Continuous washdown environments
Products requiring controlled powered movement

Stainless steel conveyor systems are recommended for aggressive sanitation or continuous washdown applications.

Technical Specifications

Component	Specification
Rollers	1.9" diameter x 16 ga. galvanized steel tubing, model 196G, smooth swaged ends
Axles	7/16" hex shaft, spring loaded
Frames	Formed steel painted channel 3-1/2" x 1-1/2" x 10 ga. set high; 4-1/2" x 1-1/2" x 10 ga. set low
Couplings	Butt type
Bearings	Integral plain ball bearings, zinc plated, grease packed
Frame Capacity	250 lbs. per roller or 1300 lbs. maximum distributed live load per 10' section with supports at 10' centers; 3200 lbs. at 5' centers
Optional Frame	4" @ 5.4 lbs. structural steel channel frame, rollers 3/16" high; dimensions may vary due to structural tolerances
Available Curve Degrees	45° and 90°
Available Between Frame Widths	15", 21", 27", 33", and 51"

Available Between Frame Widths

This conveyor is available in the following between frame (BF) widths:

Between frame width selection should be based on carton width, product overhang requirements, conveyor integration layout, and operational throughput goals.

📚 Frequently Asked Questions (FAQs)

Can these gravity conveyor curves handle pallets?

No. Pallet loads will damage rollers and frames. Use pallet conveyor systems for unitized pallet handling.

Are these conveyor curves designed for powered conveyor systems?

No. These are non-powered gravity conveyor sections designed for manual or gravity-assisted product movement only.

What products move best on gravity roller conveyor curves?

Stable-bottom cartons, totes, and packaged products perform best. Irregular or flexible-bottom products will not track consistently through curves.

Can these conveyor sections be used in wet environments?

The galvanized rollers provide improved corrosion resistance, but these conveyors are not designed for continuous washdown environments. Use stainless steel conveyor systems for aggressive sanitation conditions.

When should a 45 degree curve be used instead of a 90 degree curve?

45 degree curves are used for gradual directional flow changes and flexible conveyor routing layouts. Tight directional changes typically require 90 degree curves.
