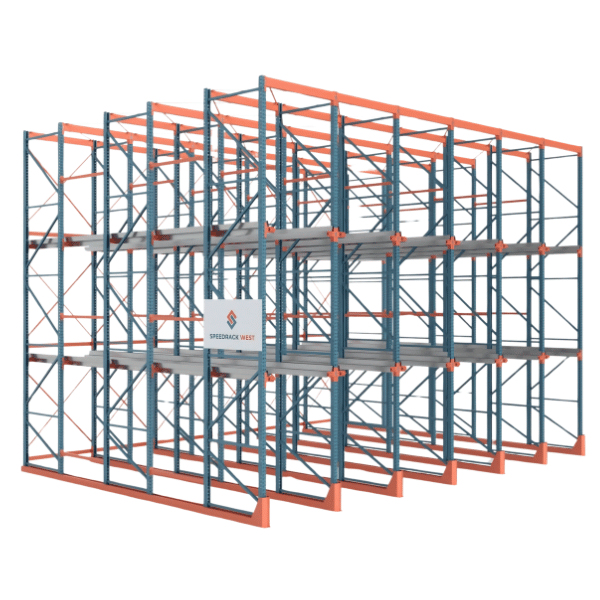

Drive-In Rack Pallet System

High-Density Pallet Storage for LIFO and FIFO Warehouse Operations

Drive-In Rack Pallet Systems provide high-density storage by allowing forklifts to enter rack lanes, reducing aisle space and maximizing warehouse capacity compared to selective racking.

They are commonly used in cold storage, food and beverage, manufacturing, and bulk storage applications with similar SKUs. These systems typically follow a LIFO inventory method, while drive-thru versions allow FIFO rotation.

Each system is custom-designed based on pallet size, load weight, forklift type, and facility requirements, and should be reviewed for compliance with local codes and operating conditions.

When to Use Drive-In Rack Systems

Drive-in pallet racking performs best in warehouses storing large volumes of similar palletized products with lower SKU variety and predictable inventory movement. The system is commonly selected when storage density is prioritized over immediate pallet accessibility.

• Cold storage and freezer warehouses
• Food and beverage distribution
• Bulk pallet storage operations
• Manufacturing inventory storage
• High-volume SKU storage
• LIFO inventory environments
• Temperature-controlled facilities with expensive cubic space
• 3PL operations handling consistent pallet profiles

When NOT to Use Drive-In Pallet Racking

Drive-in racking is not designed for operations requiring direct access to many individual SKUs or rapid pallet selectivity. Forklifts must enter storage lanes during loading and unloading, which reduces selectivity compared to selective pallet rack systems.

• High-SKU warehouses requiring immediate pallet access
• Fast-pick distribution operations
• Facilities with inconsistent pallet dimensions
• Operations with damaged or unstable pallets
• Warehouses prioritizing high selectivity over density
• Applications without trained forklift operators

Drive-In vs Drive-Thru Rack Configurations

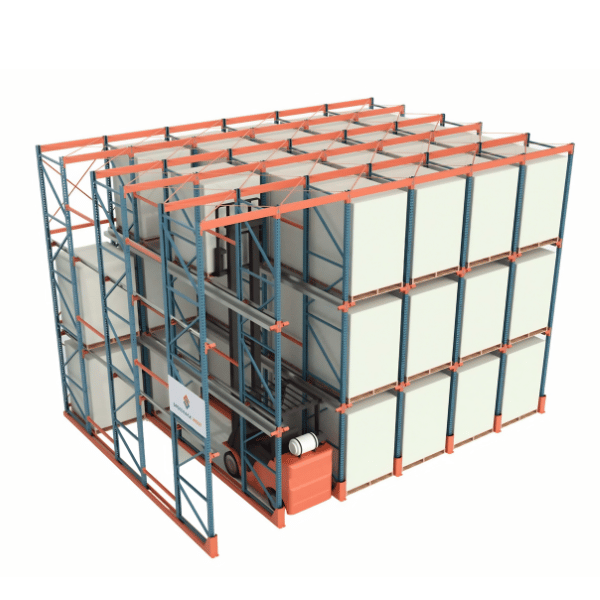

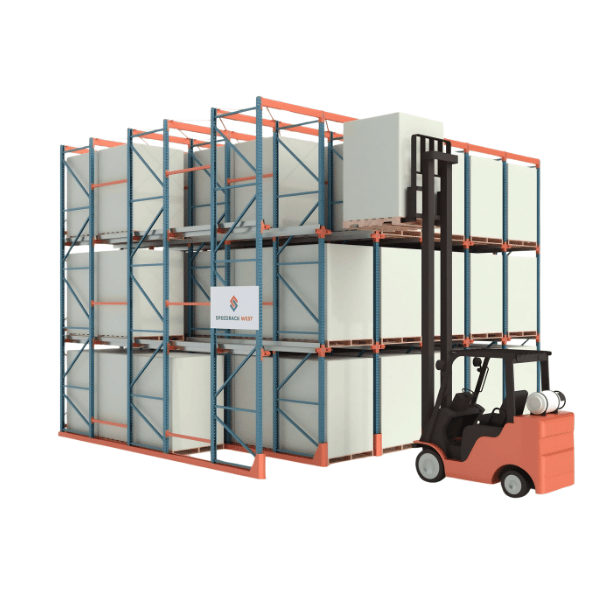

Drive-In Rack System (LIFO)

Drive-in pallet racking uses a single entry and exit point. Forklifts enter the same side of the rack lane for pallet loading and retrieval. This configuration operates on a Last-In, First-Out inventory flow and is commonly used for bulk inventory storage with lower stock rotation requirements.

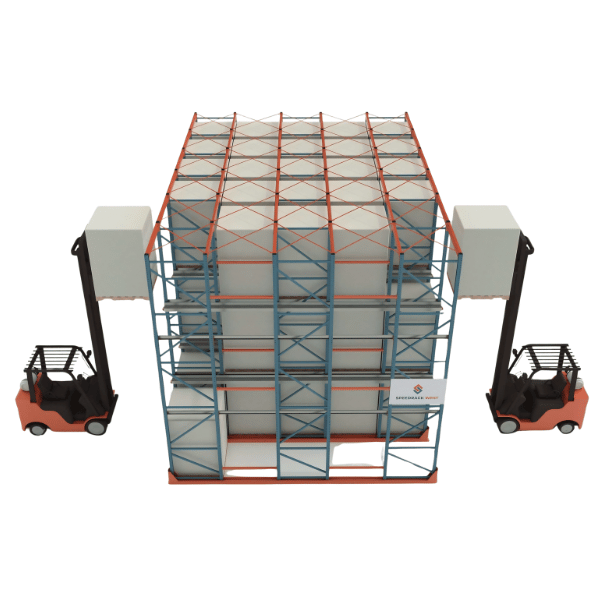

Drive-Thru Rack System (FIFO)

Drive-thru pallet racking provides access from both sides of the rack structure. Pallets are loaded from one side and retrieved from the opposite side, supporting First-In, First-Out inventory rotation. This configuration is frequently used in food storage, beverage distribution, and pharmaceutical operations.

Operational Considerations

Drive-in pallet rack systems require disciplined forklift operation because lift trucks enter storage lanes during normal operation. Pallet consistency, lane alignment, and operator training directly impact system performance and rack longevity.

• Consistent pallet dimensions are required
• Forklift operators must be trained for lane-entry operation
• Damaged pallets increase operational risk
• Lane depth affects retrieval speed and accessibility
• Guide rails are recommended in high-traffic environments
• Regular rack inspections are required in impact-prone facilities

Drive-In Rack Safety Features

Several optional and standard safety features are commonly integrated into drive-in rack systems to reduce impact risk and improve operational control.

• Entry and exit guides
• Floor-mounted guide rails
• Pallet backstops
• Rack protection components
• Load capacity signage
• Structural bracing systems
• Heavy-duty anchoring systems

Cold storage environments and high-density warehouse applications typically require additional attention to forklift clearances, floor conditions, and impact protection strategies.

Drive-In Rack System Components

• Vertical Uprights: Structural upright frames form the vertical support structure of the pallet rack system and transfer pallet loads to the warehouse floor.
• Horizontal Beams: Horizontal structural beams stabilize the rack structure and support system rigidity throughout the storage lanes.
• Support Rails: Steel support rails run the depth of the storage lanes and support pallet placement during loading and unloading.
• Entry Guides: Entry guides assist forklift alignment when entering rack lanes and help reduce rack impact damage.
• Bracing: Horizontal and diagonal bracing components maintain rack stability and structural rigidity.
• Base Plates and Anchors: Floor anchoring systems secure the rack structure and improve overall operational safety.
• Optional Guide Rails: Guide rails installed along storage lanes help control forklift positioning and reduce upright damage in high-cycle operations.
• Optional Backstops: Backstops prevent pallets from being pushed beyond intended storage positions inside rack lanes.

Key Features

• High-density pallet storage configuration
• LIFO or FIFO inventory flow options
• Drive-in and drive-thru configurations available
• Reduced aisle requirements
• Multiple pallets deep per storage lane
• Custom-engineered layouts
• Cold storage compatible
• Suitable for bulk inventory storage

Typical System Specifications

• Storage Method: LIFO (Drive-In) or FIFO (Drive-Thru)
• Storage Depth: Typically 2 to 10+ pallets deep
• Forklift Access: Direct lane entry
• Pallet Type: Uniform pallet dimensions recommended
• Configuration Options: Single-entry or double-entry
• Warehouse Environment: Ambient or cold storage
• System Design: Custom-engineered per application
• Installation Type: Anchored structural rack system

Industries Commonly Using Drive-In Rack Systems

• Food and beverage distribution
• Cold storage warehouses
• Manufacturing facilities
• Industrial distribution centers
• Bulk inventory storage operations
• Third-party logistics (3PL)
• Packaging and raw material storage

Request a Drive-In Rack System Quote

Drive-in pallet rack systems should be configured according to pallet dimensions, load weights, forklift specifications, inventory flow requirements, and warehouse layout constraints. Contact KG Warehouse Equipment to discuss lane depth, FIFO vs LIFO configuration, cold storage compatibility, and layout planning requirements for your facility.
