Conveyor Support 24-1/4" to 36-1/4" Medium Duty

Speedrack West | SKU: CV-SM-6-15

$228.48

Shipping calculated at checkout.

Handling & Use Requirements

Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.

Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.

Delivery & Freight Shipping

All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.

You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.

Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.

Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.

Add a stand out message for your customers

Need Help Specifying This Equipment?

Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.

Description

1,500 lb. Medium Duty Conveyor Support for Industrial Conveyor Lines

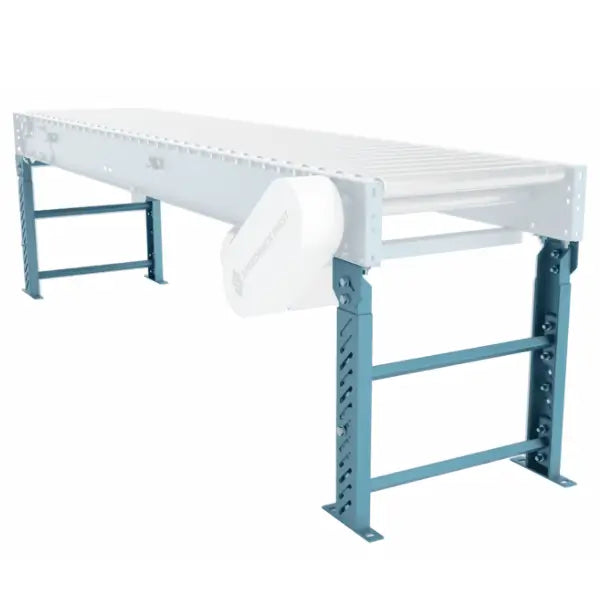

Medium Duty Conveyor Supports provide stable floor support for conveyor systems with frame sizes ranging from 24-1/4" to 36-1/4". Built for material handling, manufacturing, warehousing, distribution, and logistics operations, these supports help maintain conveyor alignment during daily production and fulfillment activity.

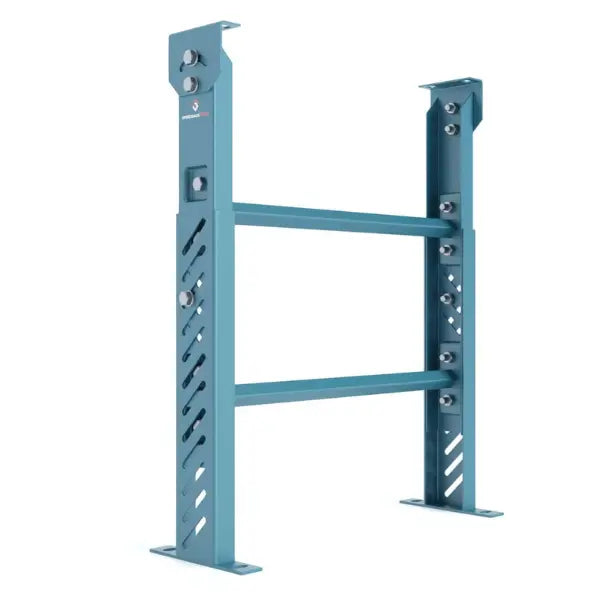

Each support is built with 12-gauge inside and outside channel assemblies, 10-gauge C-3 plates, and 10-gauge cross braces for structural rigidity. With a 1,500 lb. capacity, this support is suitable for gravity conveyors, roller conveyors, and other medium-duty conveyor systems requiring dependable floor-mounted support.

Key Features

1,500 lb. load capacity
Designed for conveyor frame sizes from 24-1/4" to 36-1/4"
12-gauge inside and outside channel assemblies
10-gauge C-3 plates
10-gauge cross braces for added stability
Durable steel construction for industrial environments
Suitable for medium-duty conveyor applications
Available in multiple conveyor width configurations

Specifications

Specification	Details
Product Type	Medium Duty Conveyor Support
Duty Rating	Medium Duty
Capacity	1,500 lbs.
Between Frame Sizes	24-1/4" to 36-1/4"
Inside & Outside Channel Assemblies	12 Gauge Steel
C-3 Plates	10 Gauge Steel
Cross Braces	10 Gauge Steel
Construction Material	Steel
Application	Conveyor Support Systems
Installation Type	Floor-Mounted Support

When to Use Medium Duty Conveyor Supports

Use medium duty conveyor supports when conveyor systems need stable floor support for moderate product loads in warehouses, manufacturing facilities, distribution centers, packaging operations, and fulfillment environments. These supports are appropriate when load requirements remain within the 1,500 lb. capacity rating.

When Not to Use Medium Duty Conveyor Supports

Do not use these supports in conveyor applications that exceed the 1,500 lb. load capacity rating. Heavy pallet handling systems, high-impact loading environments, or engineered conveyor structures requiring higher load capacity should use heavy-duty supports.

Common Applications

Warehouse conveyor systems
Distribution center conveyor lines
Manufacturing production conveyors
Packaging and assembly operations
Fulfillment and sortation systems
Material handling transfer lines
Shipping and receiving conveyor systems
Logistics facilities

Why Proper Conveyor Support Selection Matters

Proper conveyor support selection helps maintain conveyor alignment, reduce unwanted movement, and improve system stability. Match the support to the conveyor frame size, conveyor width, and load requirements to reduce structural stress and support consistent conveyor performance.

📚 Frequently Asked Questions (FAQs)

What conveyor frame sizes are these supports designed for?

These supports are designed for conveyor frame sizes between 24-1/4" and 36-1/4". Do not use them on conveyor frames outside this size range.

What is the load capacity of these medium duty conveyor supports?

These supports are rated for loads up to 1,500 lbs. Exceeding the rated capacity can reduce stability and increase structural stress.

When should I choose a medium duty conveyor support instead of a heavy duty support?

Choose a medium duty support when system loads remain within the 1,500 lb. capacity rating. Heavy-duty conveyor applications require supports designed for higher load requirements.

What happens if a conveyor support is undersized for the application?

An undersized support can reduce conveyor stability and increase structural stress. Always match the support to the conveyor width and load requirements.

Are these supports suitable for warehouse and distribution center conveyor systems?

Yes. These supports are commonly used in warehouse, manufacturing, distribution, packaging, and fulfillment conveyor applications handling medium-duty loads.
