Conveyor Support 20-1/4" to 26-1/4" Medium Duty

Speedrack West | SKU: CV-SM-5-15

$207.21

Shipping calculated at checkout.

Handling & Use Requirements

Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.

Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.

Delivery & Freight Shipping

All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.

You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.

Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.

Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.

Add a stand out message for your customers

Need Help Specifying This Equipment?

Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.

Description

Reliable Support for Medium Duty Conveyor Systems

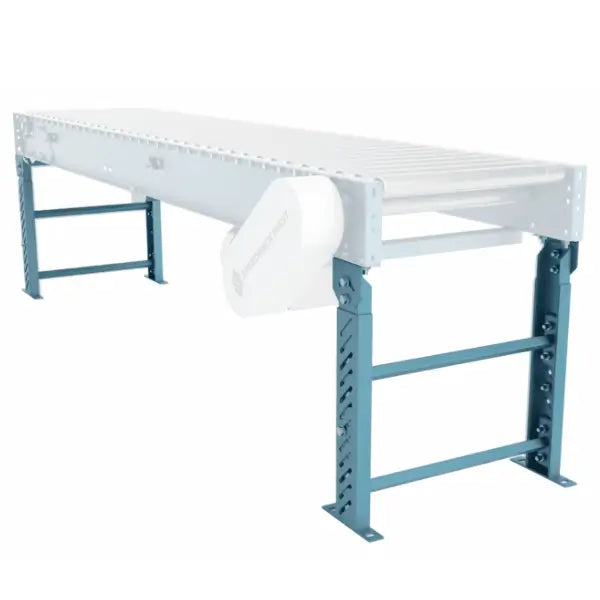

Medium Duty Conveyor Supports provide adjustable floor support for conveyor systems with capacities up to 1,500 lbs. Commonly used in warehouses, manufacturing facilities, distribution centers, and packaging operations, these supports help maintain proper conveyor elevation, alignment, and operational stability. The adjustable design accommodates varying conveyor heights while durable steel construction delivers dependable performance in demanding industrial environments.

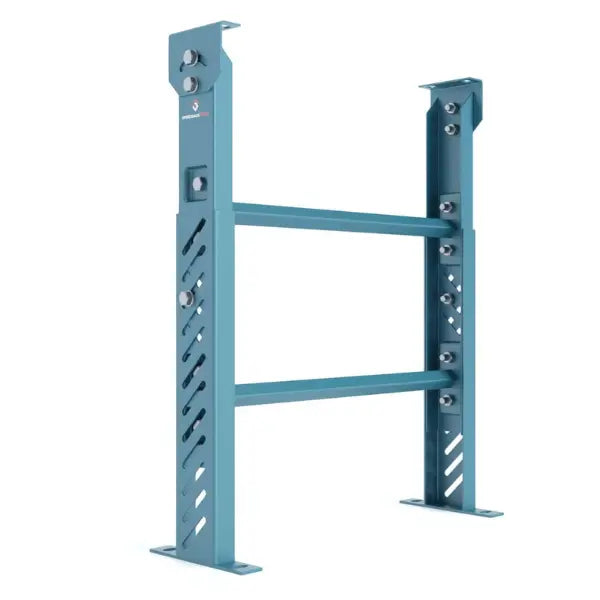

Designed for medium-duty material handling applications, these conveyor supports feature 12-gauge inside and outside channel assemblies, 10-gauge C-3 mounting plates, and 10-gauge cross braces for added structural strength. Multiple BF size options are available to match a wide range of conveyor widths and system layouts.

Best For

Gravity conveyor systems
Powered roller conveyors
Warehouse conveyor lines
Manufacturing facilities
Packaging operations
Distribution centers
Material handling systems requiring adjustable support heights

Not Recommended For

Conveyor systems exceeding 1,500 lbs. support capacity
Structural building support applications
Heavy-duty conveyor systems requiring higher load-rated supports
Applications outside manufacturer load and installation recommendations

How to Select the Correct Conveyor Support

Choose the BF size that matches your conveyor frame width. All supports within this series provide the same adjustable height range of 20-1/4" to 26-1/4" and a maximum capacity of 1,500 lbs. The primary selection factor is compatibility with the conveyor width being supported.

Key Features

Supports loads up to 1,500 lbs.
Adjustable height range from 20-1/4" to 26-1/4"
12-gauge inside and outside channel assemblies
10-gauge C-3 mounting plates
10-gauge cross braces for enhanced rigidity
Designed for medium-duty conveyor applications
Durable steel construction for industrial environments
Available in multiple BF sizes to match conveyor widths
Suitable for warehouse, manufacturing, and distribution operations

Common Applications

Warehouse Conveyor Systems: Provides stable support for conveyor sections used in receiving, storage, picking, packing, and shipping operations.
Manufacturing Material Flow: Supports conveyor systems used to transport products, components, and materials between workstations and production areas.
Packaging Operations: Helps maintain proper conveyor alignment in packing, sorting, and order fulfillment applications.
Distribution Centers: Supports conveyor lines used for product movement, accumulation, and material handling throughout distribution facilities.

Technical Specifications

Specification	Details
Product Type	Medium Duty Conveyor Support
Capacity	1,500 lbs.
Adjustable Height Range	20-1/4" to 26-1/4"
Channel Assemblies	12 Gauge Steel
C-3 Plates	10 Gauge Steel
Cross Braces	10 Gauge Steel
Construction	Steel
Mounting Style	Floor Mounted
Application	Medium Duty Conveyor Systems
Use Environment	Warehouses, Manufacturing Facilities, Distribution Centers
BF Size Options	15" to 51"

📚 Frequently Asked Questions (FAQs)

What happens if I choose the wrong BF size?

Using the wrong BF size will prevent proper conveyor mounting and alignment. Match the BF size to the conveyor frame width before ordering.

Can these supports be used for heavy-duty conveyor systems?

No. These supports are rated for a maximum capacity of 1,500 lbs. Heavy-duty conveyor systems require higher-capacity supports.

Are all variants adjustable to the same height range?

Yes. Every variant in this series adjusts from 20-1/4" to 26-1/4". BF size changes width compatibility, not height range.

Can these conveyor supports be used as structural building supports?

No. These supports are designed only for conveyor applications. They should not be used to support building structures or non-conveyor equipment.

When should I choose a medium-duty conveyor support?

Choose a medium-duty conveyor support when your conveyor system falls within the 1,500 lb. capacity rating. Do not use this support when application loads exceed the rated capacity.
