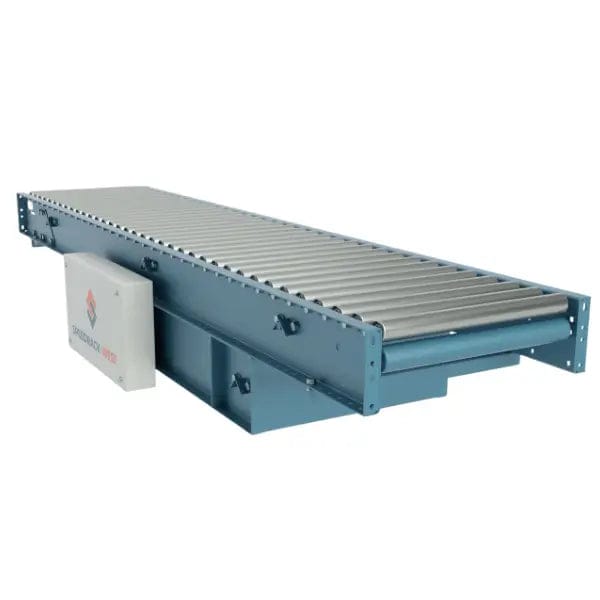

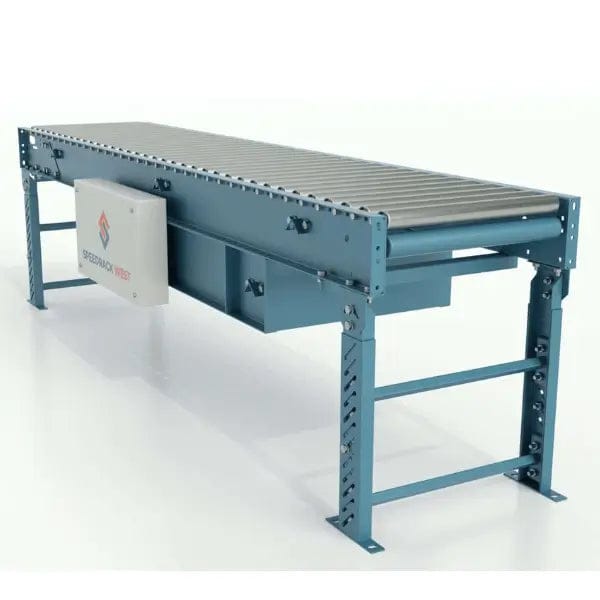

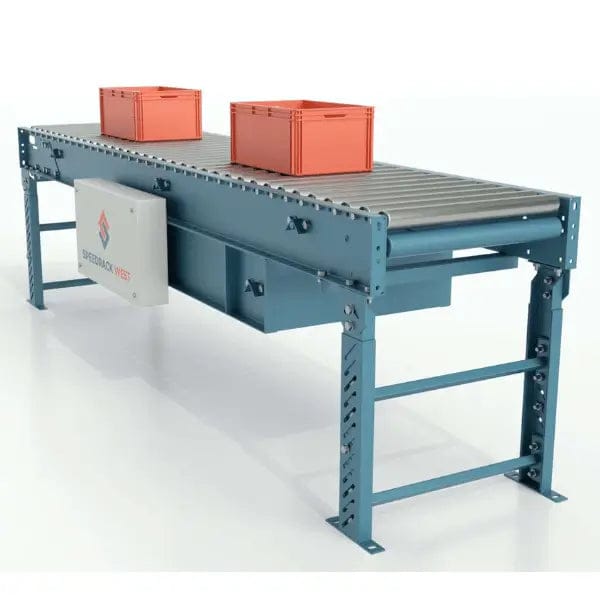

Chain Driven Accumulation Conveyors CV-SZA251CDA-15-4-10

Heavy Duty Zero Pressure Accumulation Conveyors for Pallet and Industrial Load Handling

Heavy Duty Zero Pressure Accumulation Conveyors are designed for warehouses, manufacturing facilities, distribution centers, and 3PL operations that need to accumulate heavy products without product-to-product contact. These chain-driven accumulation systems use independently controlled zones and photoelectric sensors to safely convey pallets, drums, containers, castings, and other heavy industrial loads while maintaining controlled product flow.

This configuration features a 15-inch conveyor width, 10-foot overall length, and 4-inch roller centers, making it suitable for heavy-duty accumulation where controlled spacing and product separation are required.

Unlike minimum-pressure accumulation systems, zero pressure accumulation keeps loads separated in individual zones. This helps reduce product damage, improves flow control, and supports safer handling of heavy or palletized materials.

Key Features

• Space-saving accumulation design for industrial conveyor layouts
• Zero-pressure operation prevents product-to-product contact
• 15-inch conveyor width
• 10-foot overall conveyor length
• 4-inch roller centers
• Roll-to-roll chain-driven construction for heavy-duty applications
• Photoelectric sensors for precise zone control
• Individual load singulation for controlled product release
• Designed for pallets, drums, containers, castings, and heavy loads
• Supports increased throughput in accumulation and staging areas

Best Applications

• Pallet handling systems
• Manufacturing facilities
• Distribution centers
• 3PL warehouse operations
• End-of-line accumulation
• Heavy container handling
• Drum and casting transport
• Warehouse buffering and staging areas

Operational Benefits

• Improved Product Protection: Products remain separated during accumulation, reducing impact, pressure, and load-to-load contact.
• Controlled Throughput: Independently controlled zones help regulate product flow and prevent uncontrolled buildup on the conveyor line.
• Reliable Pallet Handling: Photoelectric sensors eliminate many of the issues associated with traditional sensor rollers when handling wooden pallets and heavy loads.
• Reduced Maintenance Complexity: The sensor-based zone control design supports simpler long-term maintenance compared with systems that rely on sensor rollers.

Accumulation Method Comparison

• Zero Pressure Accumulation: Zero pressure accumulation keeps products fully separated in individual zones. This is the preferred approach when product protection, spacing, and controlled release are required.
• Minimum Pressure Accumulation: Minimum-pressure accumulation allows light product contact and typically applies approximately 2% to 3% line pressure. It is best suited for similar-sized products where limited back pressure is acceptable.
• Important Consideration: Minimum-pressure systems may cause wider products to rotate around smaller products in mixed-size applications. Use zero pressure accumulation when product separation and controlled singulation are required.

Specifications

When Not to Use This Conveyor

• Do not use this conveyor when accumulation is not required.
• Do not use this conveyor for lightweight parcel handling if a lighter-duty conveyor is more appropriate.
• Do not use this conveyor when continuous product flow is preferred over zoned accumulation.
• Do not use this conveyor if the product base is unstable on roller conveyor surfaces.
• Do not use this conveyor when a belt conveyor provides better product support or orientation control.
