Cantilever Rack Arms – 60" Length x 4"Height
Cantilever Rack Arms – 60" Length x 4"Height is backordered and will ship as soon as it is back in stock.
Handling & Use Requirements
Handling & Use Requirements
Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.
Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.
Delivery & Freight Shipping
Delivery & Freight Shipping
All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.
You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.
Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.
Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.
Cantilever Rack Arms – 60" Length x 4"Height
Cantilever Rack Arms – 60" Length x 4"Height is backordered and will ship as soon as it is back in stock.
Need Help Specifying This Equipment?
Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.
Description
Description

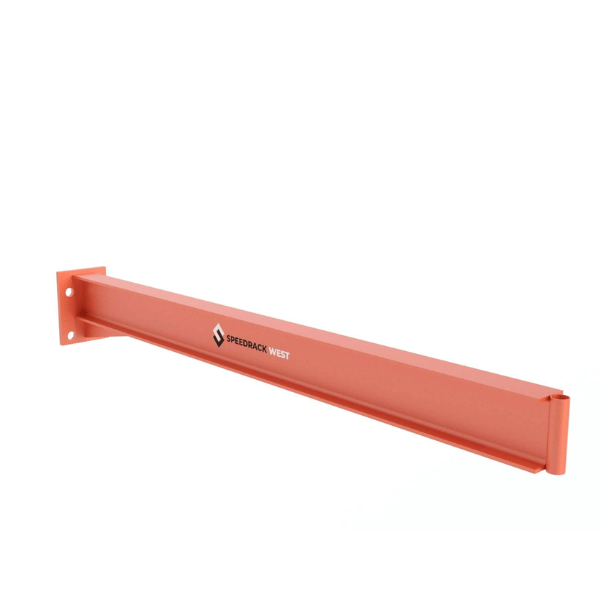

Heavy-Duty Cantilever Rack Arms for Lumber, Pipe, and Long Material Storage
These 60" cantilever rack arms are designed for storing long, oversized, or irregular materials that cannot be efficiently stored on standard pallet racking systems. The structural steel arm design supports industrial storage applications handling lumber, pipe, tubing, bar stock, extrusions, and other long products requiring open-front access.
The 60" arm length provides extended load support for longer inventory profiles while maintaining forklift accessibility in cantilever rack systems. These arms are commonly used in manufacturing facilities, lumber yards, steel warehouses, pipe storage operations, and industrial distribution environments.
Do not use cantilever rack arms for unsupported palletized loads, unstable loose inventory, or applications exceeding engineered rack system capacities.
Forklift-Compatible Open-Front Storage
Cantilever rack systems are commonly used in warehouse environments where front-column obstruction from standard pallet rack systems would interfere with loading efficiency. The open-front design allows forklifts to place and retrieve long inventory without navigating around front uprights.

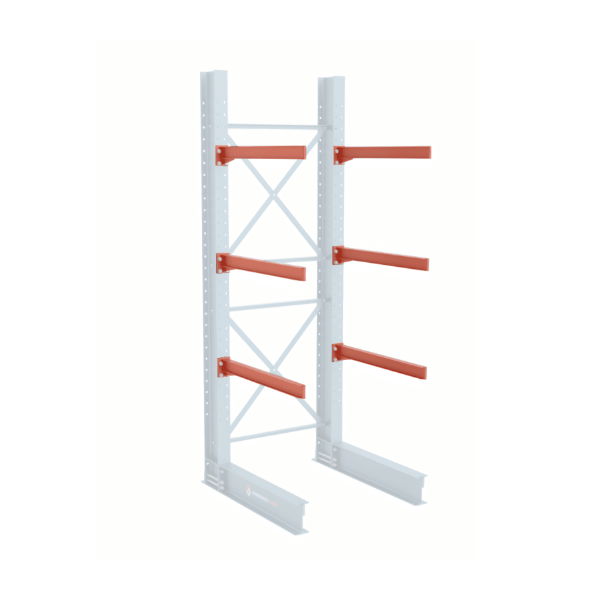

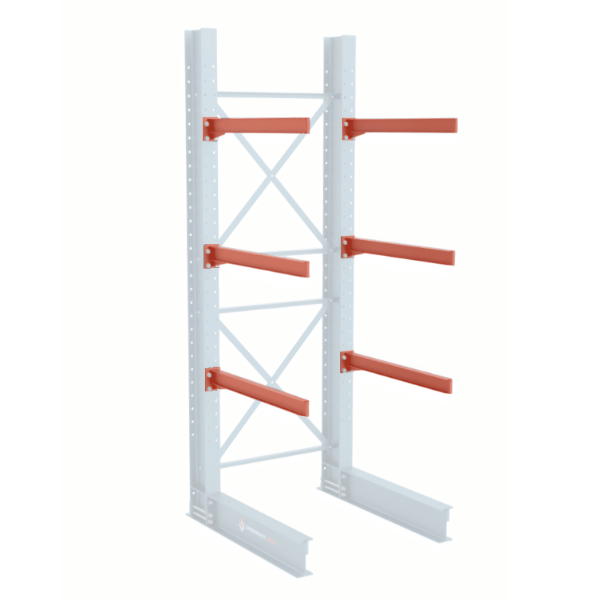

- Single-sided cantilever rack systems

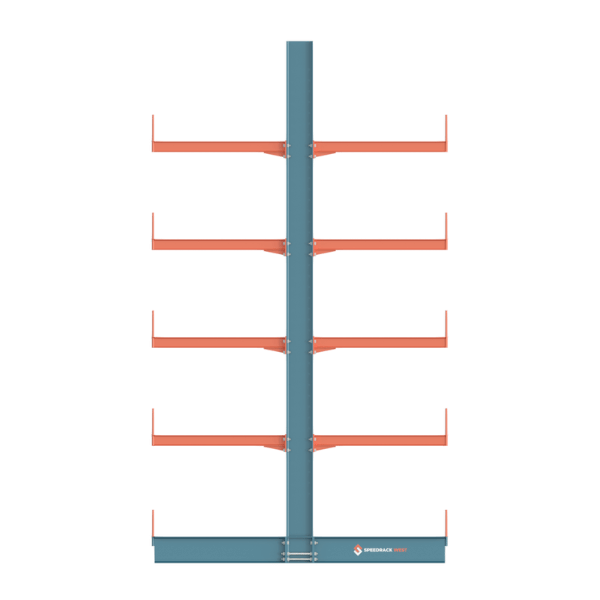

- Double-sided cantilever rack systems
- Freestanding layouts
- Wall-mounted configurations
Rack pins can be added to the arm ends to help prevent materials from shifting or falling from the storage surface.
Built for Industrial Warehouse Applications
The heavy-duty structural steel construction supports industrial storage environments requiring durable long-material storage systems with repeat forklift interaction. These arms are commonly integrated into warehouse layouts handling lumber, steel stock, pipe, tubing, extrusions, bar stock, building materials, and long fabricated components.
Cantilever rack systems should be configured according to total system load requirements, inventory dimensions, forklift specifications, and facility layout constraints.
Key Features
- 60" cantilever arm length
- 4" arm height profile
- Heavy-duty structural steel construction
- Hardware included
- Adjustable cantilever system configuration
- Compatible with forklift-served storage layouts
- Open-front access for long material handling
- Designed for lumber, pipe, and oversized inventory storage
- Rack pin compatible
- Bolted upright attachment design
Specifications
| Specification | Value |
|---|---|
| Product Type | Cantilever Rack Arm |
| Arm Length | 60" |
| Arm Height | 4" |
| Construction Material | Heavy-Duty Structural Steel |
| Capacity Range | 2,000–4,000 lbs |
| Mounting Style | Bolted Connection |
| Hardware Included | Yes |
| Vertical Hole Spacing | 4" |
| Horizontal Hole Spacing | 2.75" Center-to-Center |
| Compatible Storage Type | Cantilever Rack Systems |
| Forklift Compatible | Yes |
| Rack Pin Compatible | Yes |
Ideal Applications
- Lumber yards
- Pipe storage facilities
- Steel warehouses
- Manufacturing plants
- Industrial distribution centers
- Building material storage
- Long-material warehouse systems
- Forklift-served storage environments
The 60" arm depth is best suited for inventory requiring increased support surface area and open-front loading access.
When Not to Use Cantilever Rack Arms
Do not use cantilever rack arms for:
- Standard pallet storage applications
- Unstable loose materials without retention
- Unsupported point-load storage
- Inventory exceeding engineered system capacities
- Damaged or improperly anchored cantilever systems
- Storage applications requiring enclosed pallet support surfaces
Cantilever systems must be configured using compatible uprights, bases, bracing, and engineered load distribution requirements..
📚 Frequently Asked Questions (FAQs)
What are cantilever rack arms used for?
Can cantilever rack arms be adjusted?
Are cantilever rack arms compatible with forklifts?
Are mounting hardware and connections included?
Can cantilever rack arms support palletized inventory?
