Box Style 20ft Slider Bed Belt Conveyor
Box Style 20ft Slider Bed Belt Conveyor - 18" is backordered and will ship as soon as it is back in stock.
Handling & Use Requirements
Handling & Use Requirements
Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.
Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.
Delivery & Freight Shipping
Delivery & Freight Shipping
All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.
You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.
Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.
Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.
Box Style 20ft Slider Bed Belt Conveyor
Box Style 20ft Slider Bed Belt Conveyor - 18" is backordered and will ship as soon as it is back in stock.
Need Help Specifying This Equipment?
Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.
Description
Description
Medium-Duty Slider Bed Conveyor for Packing, Inspection & Assembly Operations

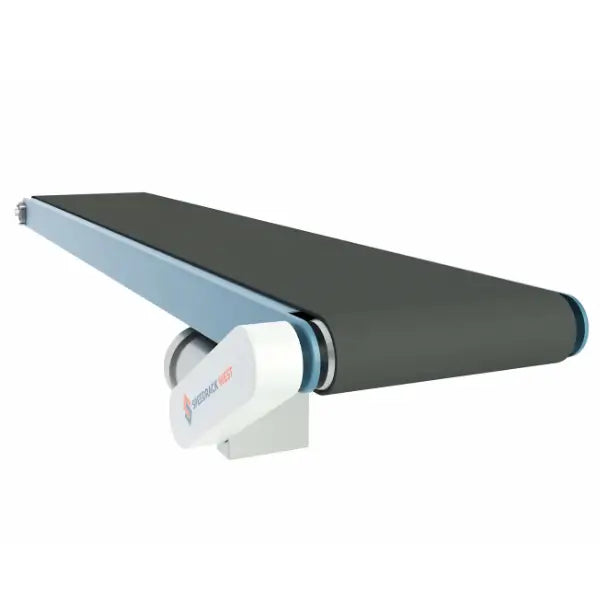

The Model 450BOS Box Style 20ft Slider Bed Belt Conveyor is designed for medium-duty material handling applications including packing, testing, assembly, inspection, and warehouse transport operations. Its box style slider bed design allows operators to work efficiently alongside the conveyor while supporting smooth product movement across distribution, manufacturing, and fulfillment environments. Custom sizes, belt options, and conveyor configurations are available to match operational throughput and layout requirements.
Best For
- Packing stations
- Inspection lines
- Assembly operations
- Warehouse product transport
- Fulfillment centers
- Manufacturing facilities
- Medium-duty carton handling
- Continuous product flow applications
Not Recommended For
- Heavy pallet transport
- High-impact bulk material handling
- Inclined applications without high-grip belting
- Extremely abrasive product environments
- Washdown environments unless upgraded belting is specified
Key Features
- Versatile Medium-Duty Conveyor Platform: Supports packing, testing, inspection, assembly, and general product transport applications.
- Box Style Slider Bed Design: Allows operators to work alongside the conveyor during assembly, packing, or inspection processes.
- Custom Conveyor Configurations Available: Available in multiple widths, belt types, and layout configurations to support varying operational requirements.
- Precision Heavy-Duty Bearings: Pulley bearings use lubricated ball bearing units with cast iron housings for reliable continuous operation.
- Fully Lagged Crowned Drive Pulley: Improves belt tracking and conveyor performance during continuous material handling operations.
- Optional Conveyor Supports & Controls: Optional floor supports and electrical controls allow system customization based on facility layout and workflow requirements.
Available Variants
| Conveyor Width | Belt Width | Overall Width | Length |
|---|---|---|---|
| 18" Wide | 19" | 22" | 20 ft |
| 24" Wide | 25" | 28" | 20 ft |
| 36" Wide | 37" | 40" | 20 ft |
Available Belt Options
- Black PVC Conveyor Belt
- Rough Top Conveyor Belt
- Food Grade Conveyor Belt
- Oil Resistant Conveyor Belt
- High Grip Incline Conveyor Belt
- Cleated Conveyor Belt
- Static Dissipative Conveyor Belt
- Heavy-Duty Rubber Conveyor Belt
Specifications
| Belting | PVC-120 black |
|---|---|
| Drive Pulley | 4" dia. with 1-3/16" shaft or 8" dia. with 1-7/16" shaft; crowned and fully lagged |
| Tail Pulley | 4" dia., crowned, with 1-3/16" shaft |
| Drive Type | End drive; optional center drive for reversible operation |
| Take-Up | Screw type unit at tail pulley provides 12" belt take-up |
| Bearings | Precision heavy-duty lubricated ball bearings with cast iron housings |
| Return Rollers | 1.9" dia. x 16 ga. steel, model 196S, adjustable |
| Belt Speed | 60 FPM constant |
| Bed Construction | 4-1/2" x 12 ga. channel frame with slider bed |
| Slider Bed Thickness | 14 ga. bed for 9"-27" BF; 12 ga. bed for 33" BF and above with bed pan braces |

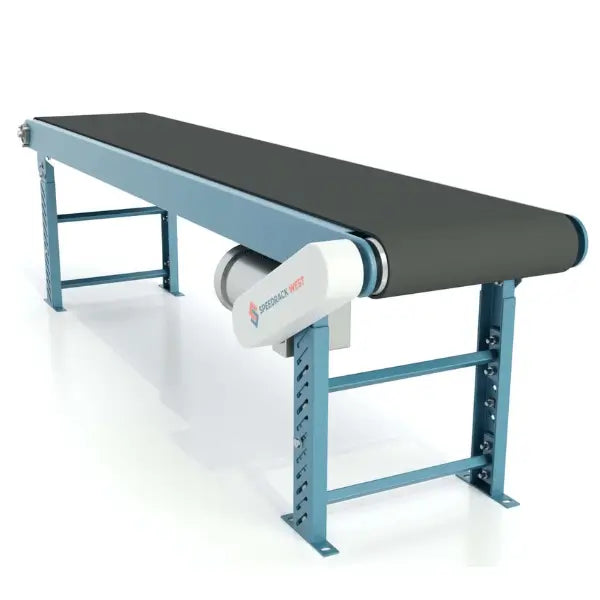

| Floor Supports | Optional; shown in image but not included in price |
| Motor Drive | 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor |
| Roller Chain | Drive pulley driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives; chain take-up provided on motor base |
| Safety Pop-Out Rollers | Mounts into slot on bracket for safety design; connector bracket helps reduce dangerous pinch points |
| Electrical Controls | Optional |
Â
📚 Frequently Asked Questions (FAQs)
What applications is the Model 450BOS conveyor designed for?
Can this conveyor handle pallets?
Are conveyor supports included?
Can this conveyor run in both directions?
Is this conveyor designed for bulk material handling?
