Description
Description
Medium-Duty Slider Bed Belt Conveyor for Packing, Inspection, and Assembly Operations

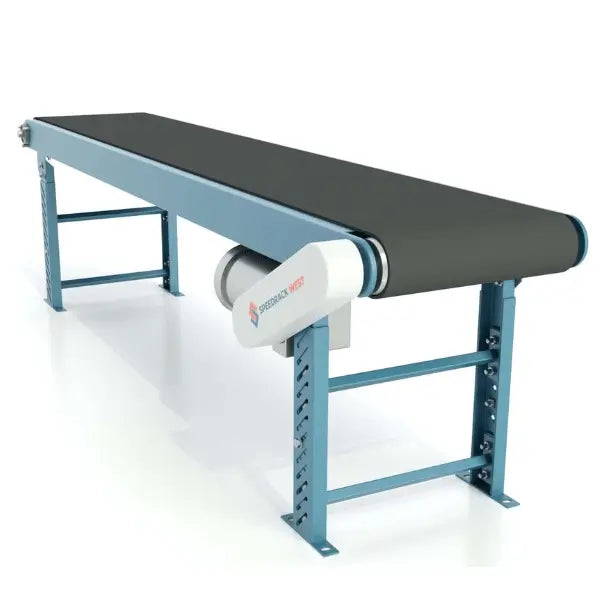

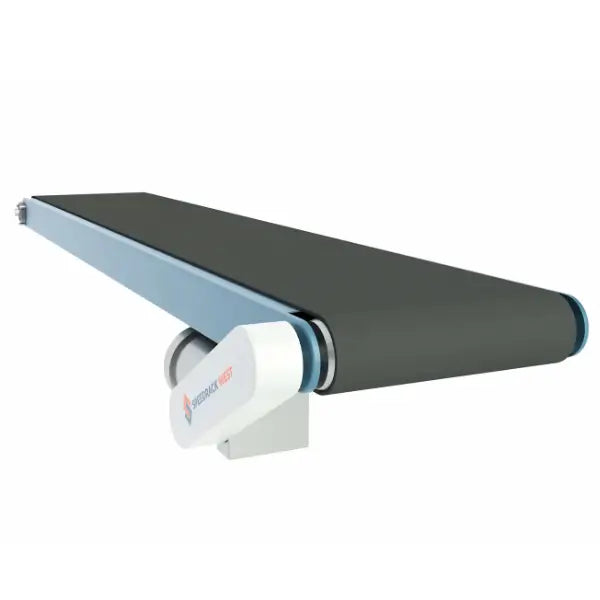

The Model 450BOS Box Style 10ft Slider Bed Belt Conveyor is designed for medium-duty carton, tote, and unit handling applications in warehouse, manufacturing, packaging, and assembly environments. Its box-style slider bed allows operators to work directly alongside the conveyor, making it well suited for packing stations, testing lines, inspection areas, and assembly workflows requiring consistent product movement and operator accessibility.
This conveyor is commonly used in distribution centers, fulfillment operations, production facilities, and workstation-based material handling systems where controlled belt transport is required. It is not intended for loaded pallet transport, heavy-impact loading, bulk loose material handling, or high-abuse conveying environments.
Key Features
- Box style slider bed construction: Supports operator access alongside the conveyor for packing, inspection, testing, and assembly applications.
- Medium-duty unit handling: Designed for cartons, totes, packaged products, and lightweight industrial materials.
- Custom configurations available: Conveyor widths, layouts, and options can be configured around facility requirements.
- Fully lagged crowned drive pulley: Supports belt tracking and consistent operation.
- Precision heavy-duty bearings: Pulley bearings use lubricated ball bearing units with cast iron housings.
- Optional supports and controls: Floor supports and electrical controls are sold separately.
Typical Applications
- Packing stations
- Assembly line operations
- Inspection systems
- Testing lines
- Distribution centers
- Ecommerce fulfillment operations
- Manufacturing facilities
- Medium-duty material handling systems
Best For
- Cartons and boxed products
- Tote handling
- Workstation-based conveying
- Assembly operations
- Inspection and testing lines
- Consistent medium-duty product flow
Not Recommended For
- Loaded pallet handling
- Bulk loose material conveying
- Heavy-impact loading
- Abrasive material transport
- Steep incline conveying
- High-speed accumulation systems
Specifications
| Specification | Details |
|---|---|
| Model | 450BOS |
| Conveyor Type | Box Style Slider Bed Belt Conveyor |
| Conveyor Length | 10 ft |
| Belt Type | PVC-120 Black |
| Drive Pulley | 4" dia. with 1-3/16" dia. shaft or 8" dia. with 1-7/16" dia. shaft, crowned and fully lagged |
| Tail Pulley | 4" dia., crowned, with 1-3/16" dia. shaft |
| Conveyor Drive | End drive for one-direction operation |
| Optional Drive Configuration | Optional center drive for reversible applications |
| Belt Take-Up | Screw type unit at tail pulley with 12" belt take-up |
| Bearings | Precision heavy-duty lubricated ball bearing units with cast iron housings |
| Return Rollers | 1.9" dia. x 16 ga. steel, model 196S, adjustable |
| Belt Speed | 60 FPM constant |
| Bed Construction | 4-1/2" x 12 ga. channel frame with slider bed |
| Bed Material | 14 ga. slider bed for 9"–27" BF; 12 ga. bed for 33" BF and above |
| Bed Reinforcement | Bed pan braces included on larger widths |
| Motor Drive | 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor |
| Roller Chain | No. 50 chain for 1-1/2 HP or less; No. 60 chain on larger drives |
| Chain Take-Up | Included on motor base |
| Safety Rollers | Optional safety pop-out rollers available |
| Conveyor Supports | Optional, sold separately |
| Electrical Controls | Optional |
Available Variants
| Belt Width | Between Frame Width | Overall Width | Conveyor Length |
|---|---|---|---|
| 18" Belt Width | 19" BF | 22" OAW | 10 ft |
| 24" Belt Width | 25" BF | 28" OAW | 10 ft |
| 36" Belt Width | 37" BF | 40" OAW | 10 ft |
Conveyor Support Compatibility
Conveyor supports are sold separately. Select support sets that match the between frame width of the conveyor configuration being ordered.
