Beam Safety Drop Pins for Secure Pallet Rack Beam Retention

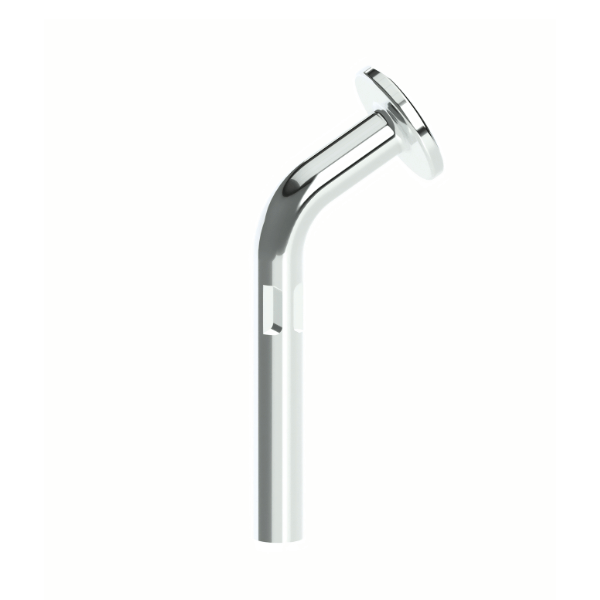

Beam Safety Drop Pins help secure compatible teardrop pallet rack beams to upright frames and reduce the risk of accidental beam disengagement during warehouse operations. These pallet rack safety pins install through the beam endplate connection and frame punch to help retain beams when forklifts, pallets, or material handling equipment create upward force on the beam connection.

In busy warehouse environments, forklift operators can unintentionally raise pallets or forks into the underside of pallet rack beams during loading and unloading. Without a beam retention device, upward movement can potentially disengage the beam connector from the upright frame, creating a serious pallet rack safety hazard.

Beam Safety Drop Pins provide an additional mechanical locking point that helps keep compatible pallet rack beams seated in place during normal warehouse activity.

These pallet rack beam safety pins are commonly used in selective pallet racking systems throughout distribution centers, 3PL facilities, manufacturing plants, industrial storage operations, and ecommerce fulfillment warehouses.

Key Features

• Helps reduce accidental beam disengagement during forklift operations
• Secures compatible pallet rack beams to upright frames
• Simple drop-in installation through beam endplate connection
• Designed for teardrop pallet rack beam systems
• Supports safer warehouse pallet storage operations

How Beam Safety Drop Pins Work

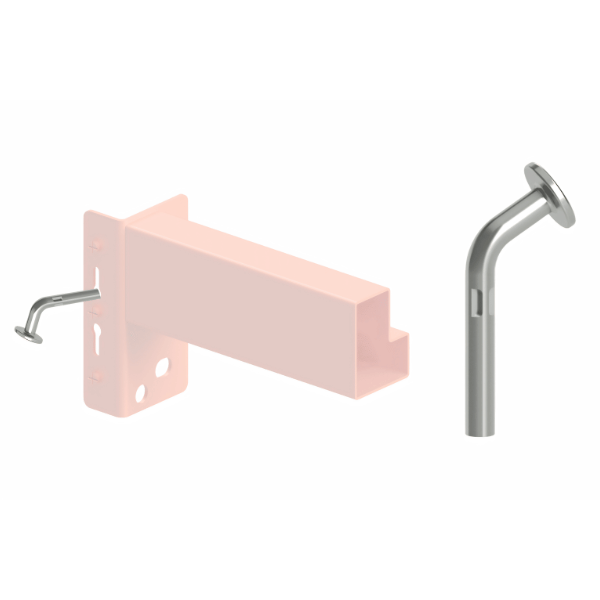

Beam Safety Drop Pins install through the side opening of compatible beam connector endplates after the beam is seated into the upright frame. Once inserted, the pin passes through the upright frame punch and helps prevent unintended upward beam movement.

This added retention point helps reduce the likelihood of beam disengagement caused by forklift contact, pallet uplift, or operational impact during daily warehouse activity.

Beam Safety Drop Pins are especially important in high-traffic pallet rack aisles where forklifts frequently load and unload palletized inventory.

Common Applications

• Selective pallet rack systems
• Warehouse pallet storage systems
• 3PL warehouse operations
• Distribution centers
• Manufacturing storage facilities
• Ecommerce fulfillment warehouses
• Industrial pallet racking systems

Compatibility Information

Beam Safety Drop Pins are intended for compatible teardrop pallet rack beam connections that include side punch access for beam locking hardware installation.

Compatibility varies by pallet rack manufacturer, beam connector style, and upright frame configuration. Do not assume universal compatibility across all pallet rack systems.

Verify beam connector geometry, frame punch location, and rack manufacturer specifications before ordering.

Important Operational and Safety Considerations

Beam Safety Drop Pins help reduce accidental beam disengagement risk but do not replace proper forklift operation, pallet rack inspections, engineered rack design, or warehouse safety procedures.

Do not use Beam Safety Drop Pins as a substitute for damaged rack repair, overloaded pallet rack correction, or improperly installed pallet rack systems.

Forklift impact damage, compromised uprights, damaged beam connectors, missing anchors, or overloaded pallet rack levels can still create structural safety risks even when safety pins are installed.

Facilities operating in seismic zones or under local engineering requirements should verify compliance with qualified rack professionals or licensed engineers.

Additional Pallet Rack Safety Products

Many warehouse facilities use Beam Safety Drop Pins together with additional pallet rack protection systems such as:

• Pallet rack safety clips
• Column guards
• Rack protection barriers
• Guard rails
• End-of-aisle protection systems

Rack protection products help reduce structural damage caused by forklift impact in active warehouse environments.

Specifications

When to Use Beam Safety Drop Pins

Use Beam Safety Drop Pins in warehouse pallet rack systems where forklift activity, pallet handling, or operational traffic increases the risk of accidental beam uplift or beam disengagement.

These safety pins are commonly used in facilities with high pallet movement frequency, active replenishment operations, and multi-shift warehouse activity.

When Not to Use Beam Safety Drop Pins

Do not use Beam Safety Drop Pins on incompatible structural pallet rack systems or beam connectors that are not designed for safety pin installation.

Beam Safety Drop Pins are not seismic anchoring devices and will not prevent pallet rack collapse caused by overloaded systems, structural damage, missing anchors, or severe forklift impact.

Do not install safety pins into damaged beam connectors or compromised upright frames.
