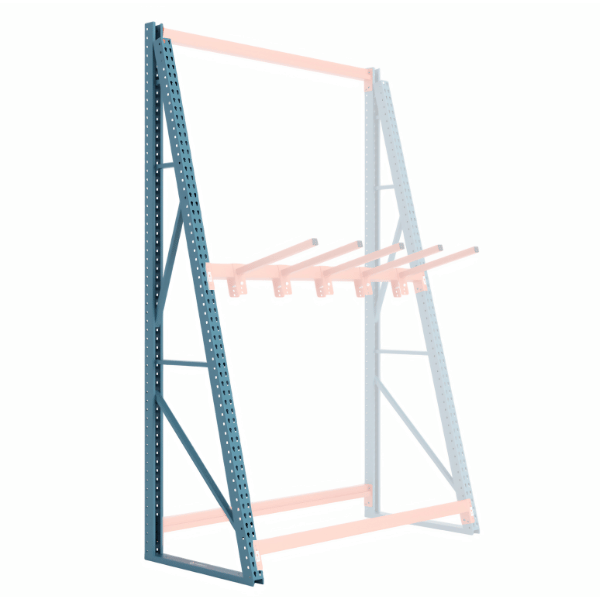

A-Frame Uprights 36" Width x 36" Channel Base

Speedrack West | SKU: AF36096314GRNI

$245.31

Shipping calculated at checkout.

Height

96" 120"

Handling & Use Requirements

Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.

Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.

Delivery & Freight Shipping

All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.

You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.

Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.

Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.

Add a stand out message for your customers

Need Help Specifying This Equipment?

Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.

Description

Heavy-Duty A-Frame Uprights for Vertical Material & Cable Reel Storage

A-Frame Uprights provide an open-access vertical storage solution for warehouses, manufacturing facilities, fabrication shops, electrical supply operations, and industrial distribution environments handling long materials, cable reels, rods, tubing, slabs, and oversized inventory. This configuration features a 36" frame width with a 36" channel base designed to provide additional stability for taller storage applications and heavier material loads.

These uprights are commonly paired with pallet rack beams and reel brackets to create custom cable reel storage systems, reel dispensing racks, or vertical material storage bays. The open A-frame structure improves forklift accessibility while simplifying organization and retrieval of long or irregular materials that are difficult to store on traditional shelving or pallet rack decking.

Common Applications

Cable reel storage systems
Wire and electrical spool storage
Pipe and tubing organization
Rod and bar stock storage
Vertical slab and panel storage
Industrial material staging
Warehouse overflow storage
Custom reel rack systems

Key Features

Compatible with Pallet Rack Components — Pair with pallet rack beams and reel brackets to build custom reel storage or vertical material handling systems.
All-Welded Steel Frame — Heavy-duty welded construction improves frame rigidity and long-term durability in industrial environments.
36" Channel Base Configuration — Wider base profile improves stability for taller storage applications and oversized materials.
Open A-Frame Design — Allows easier forklift access and improved handling of long or irregular inventory.
Configurable Storage Layouts — Supports beam-level adjustments and multiple storage configurations depending on material type and operational requirements.
Industrial Warehouse Use — Designed for manufacturing, warehousing, fabrication, contractor supply, and distribution applications.

Available Heights

96"
120"

Product Specifications

Specification	Details
Product Type	A-Frame Upright
Frame Width	36"
Base Depth	36" Channel Base
Available Heights	96", 120"
Frame Construction	All-Welded Steel
Compatible Components	Pallet Rack Beams, Reel Brackets
Primary Applications	Vertical Storage, Reel Storage, Pipe Storage
Installation Type	Freestanding Industrial Storage System
Material Handling Access	Manual or Forklift Accessible

Compatible Storage Configurations

A-Frame Uprights are commonly integrated into configurable industrial storage systems using standard pallet rack beams and reel brackets. This allows facilities to create flexible storage layouts without dedicated enclosed shelving systems.

Multi-level cable reel storage systems
Beam-supported vertical storage bays
Pipe and tubing storage racks
Rod and bar stock organization systems
Industrial staging and overflow storage areas

When to Use A-Frame Uprights

A-Frame Uprights are best suited for facilities storing long, oversized, irregular, or reel-based inventory that cannot be efficiently organized using standard pallet rack decking or boltless shelving systems. They are commonly selected when operators require open access, flexible configurations, and easier handling of long materials.

When Not to Use A-Frame Uprights

Do not use A-Frame Uprights for standard palletized inventory, carton picking operations, or high-density SKU storage. Facilities requiring FIFO inventory flow, enclosed shelving, or selective pallet access should use dedicated pallet racking or shelving systems instead.

Operational & Configuration Considerations

Reel rods, pallet rack beams, and reel brackets are sold separately unless otherwise specified.
System configuration should be matched to reel diameter, material dimensions, and loading requirements.
Floor conditions and anchoring requirements should be reviewed before installation.
Improper beam spacing or oversized unsupported materials can reduce storage stability.
Final system suitability should be reviewed for heavy industrial or high-capacity applications.

📚 Frequently Asked Questions (FAQs)

What are A-Frame Uprights used for?

A-Frame Uprights are used for vertical storage of pipes, rods, slabs, tubing, and cable reels. They are commonly used in industrial warehouses and manufacturing facilities handling long materials.

Can A-Frame Uprights be used for cable reel storage?

Yes. These uprights are commonly paired with pallet rack beams and reel brackets to create reel storage and dispensing systems.

Are pallet rack beams included with these uprights?

No. Pallet rack beams, reel brackets, and reel rods are sold separately unless otherwise specified.

Should A-Frame Uprights be used for pallet storage?

No. These systems are designed for vertical and reel-based storage applications, not standard palletized inventory storage.

What materials are commonly stored on A-Frame systems?

A-Frame systems are commonly used for storing pipes, tubing, rods, wire reels, slabs, panels, and long industrial materials.

Do A-Frame Uprights require anchoring?

Floor anchoring requirements depend on system configuration, material weight, and facility conditions. Review anchoring requirements before installation in heavy-duty applications.
