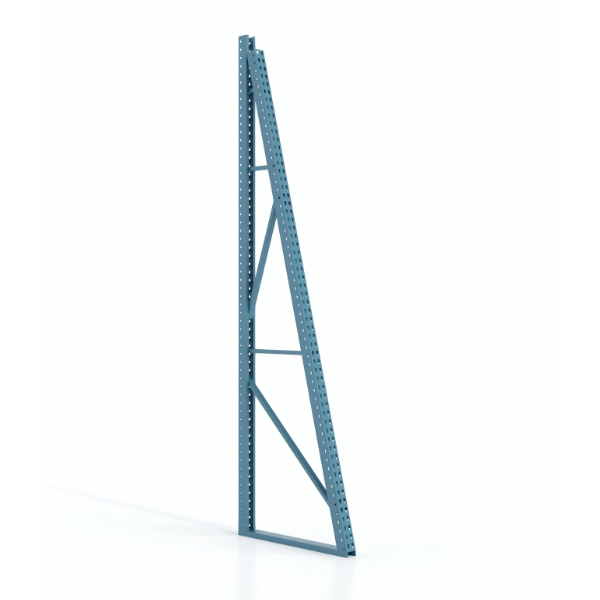

A-Frame Uprights – 24" Width x 24" Channel Base

Industrial A-Frame Uprights for Reel Storage and Vertical Material Organization

A-Frame Uprights are engineered for industrial storage applications involving long materials, cable reels, tubing, rods, bars, slabs, and vertically stored inventory that cannot be efficiently handled with standard pallet racking. Built with an all-welded steel frame and channel base construction, these uprights provide a stable foundation for custom reel rack systems, vertical storage layouts, and material separation in warehouse and manufacturing environments.

These industrial A-frame storage uprights are commonly used in electrical supply warehouses, metal fabrication facilities, pipe distributors, industrial manufacturing plants, and reel storage operations where inventory requires direct visibility, organized access, and flexible beam configurations.

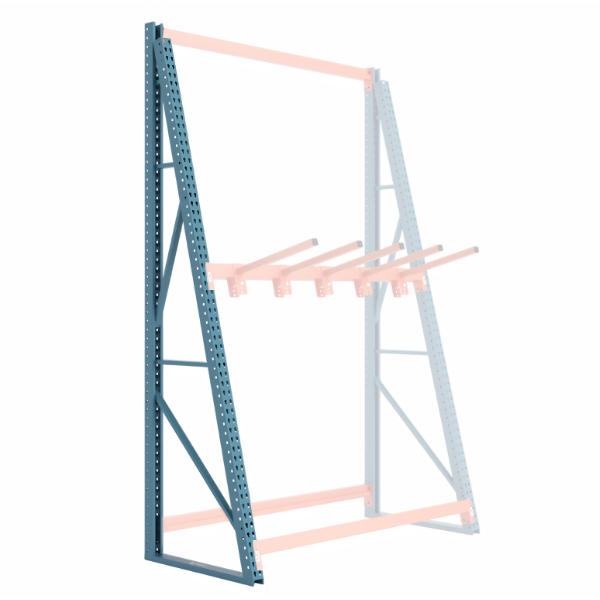

Pair these uprights with compatible pallet rack beams and reel rack brackets to build a modular cable reel rack system for wire, hose, rope, chain, or spool-based inventory. They can also be configured for vertical pipe storage, rod storage, extrusion handling, and long material organization where traditional shelving or pallet rack systems are inefficient.

Key Features

• Designed for industrial reel storage and vertical material organization
• Compatible with pallet rack beams and reel rack brackets
• Supports custom cable reel rack system configurations
• All-welded steel frame construction for industrial durability
• Open-frame layout improves material visibility and access
• Suitable for vertical pipe, rod, tubing, and extrusion storage
• Available in 96", 120", and 144" heights
• Available in 24" and 36" depth configurations
• Expandable for multi-bay reel storage systems

Common Applications for A-Frame Storage Systems

A-frame rack systems are commonly used where facilities need organized storage for long, oversized, cylindrical, or awkward materials that do not fit efficiently within standard pallet rack shelving systems.

• Cable reel storage systems
• Industrial wire and hose storage
• Vertical pipe storage
• Rod and bar stock storage
• Extrusion and trim storage
• Warehouse reel storage systems
• Tubing and conduit storage
• Manufacturing material staging areas
• Electrical supply warehouse storage
• Industrial fabrication environments

Why Use A-Frame Storage Instead of Standard Pallet Racking?

Standard pallet racking is designed for palletized inventory and horizontal load storage. A-frame storage systems are better suited for reels, rods, pipe, tubing, and vertically organized materials that require open access, material separation, and specialized handling configurations.

Facilities storing long materials or reel-based inventory use A-frame systems to improve organization, reduce floor congestion, and simplify access to oversized or irregular products that are difficult to manage using traditional pallet rack shelving.

Compatible Components and System Configuration

These A-frame uprights are designed to integrate with compatible pallet rack beams and reel rack brackets to create modular industrial storage systems.

• Compatible with industrial pallet rack beams
• Compatible with reel rack brackets
• Supports custom reel rod configurations
• Expandable into multi-bay storage systems
• Can be configured for standalone or continuous storage rows

Final system capacity depends on beam selection, reel size, load distribution, anchoring method, floor conditions, and overall storage layout.

Operational Environments

These industrial A-frame uprights are commonly deployed in operations that require organized storage for reels, long materials, and vertically staged inventory.

• 3PL warehouse overflow storage
• Electrical supply distribution centers
• Industrial manufacturing facilities
• Steel and metal service centers
• Pipe and tubing distributors
• Industrial fabrication shops
• Maintenance and utility operations
• Warehouse material staging zones

When A-Frame Uprights Are Not the Right Solution

Do not use A-frame storage systems for standard palletized inventory, selective pallet access applications, or high-density pallet storage. These systems are designed specifically for vertical material storage, reel storage systems, and long material organization.

A-frame uprights are not intended to replace engineered pallet rack systems for conventional warehouse pallet storage. Improper use, unsupported beam configurations, or uneven loading can reduce system stability and create unsafe storage conditions.

Engineering and Capacity Notice

Final load capacity depends on beam configuration, reel size, load distribution, anchoring method, material type, and floor conditions. Final system suitability should be reviewed for the intended operational environment and application requirements.

Facilities operating heavy reel systems, oversized material storage, or high-capacity industrial applications should verify system configuration before installation.
