Description
Description

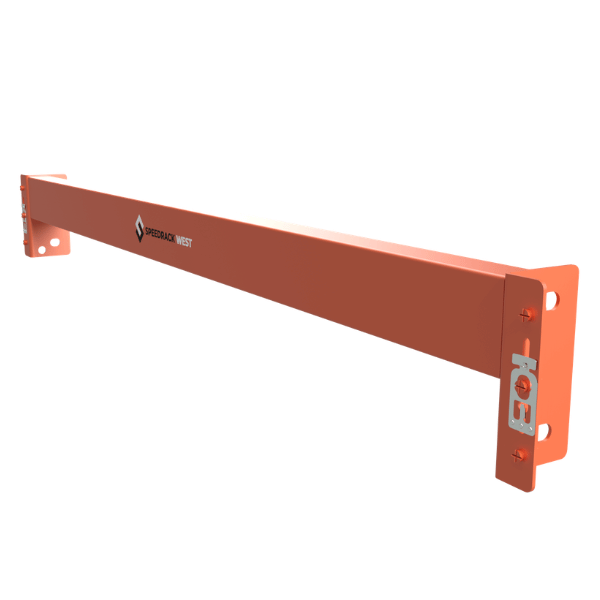

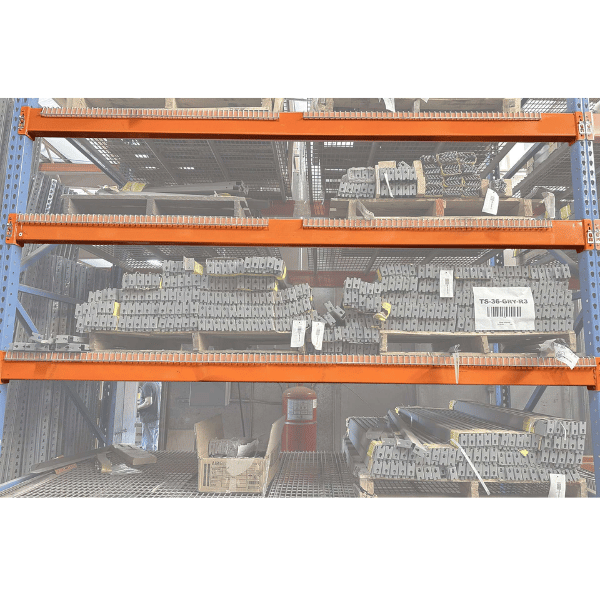

96" Teardrop Pallet Rack Beams for Warehouse Storage Systems

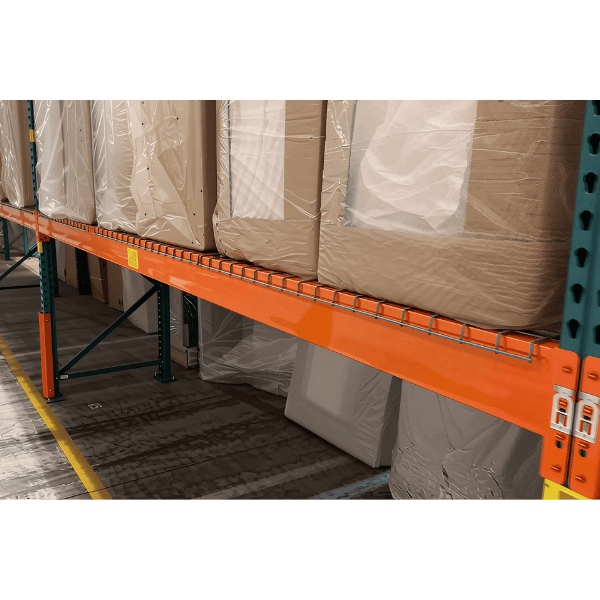

These 96-inch pallet rack beams are designed for teardrop-style pallet racking systems requiring medium-duty pallet support with tool-free adjustability. The 3-inch face profile and standard 1 5/8-inch step design support wire decking, pallet supports, and wood decking applications in warehouse, manufacturing, and distribution environments.

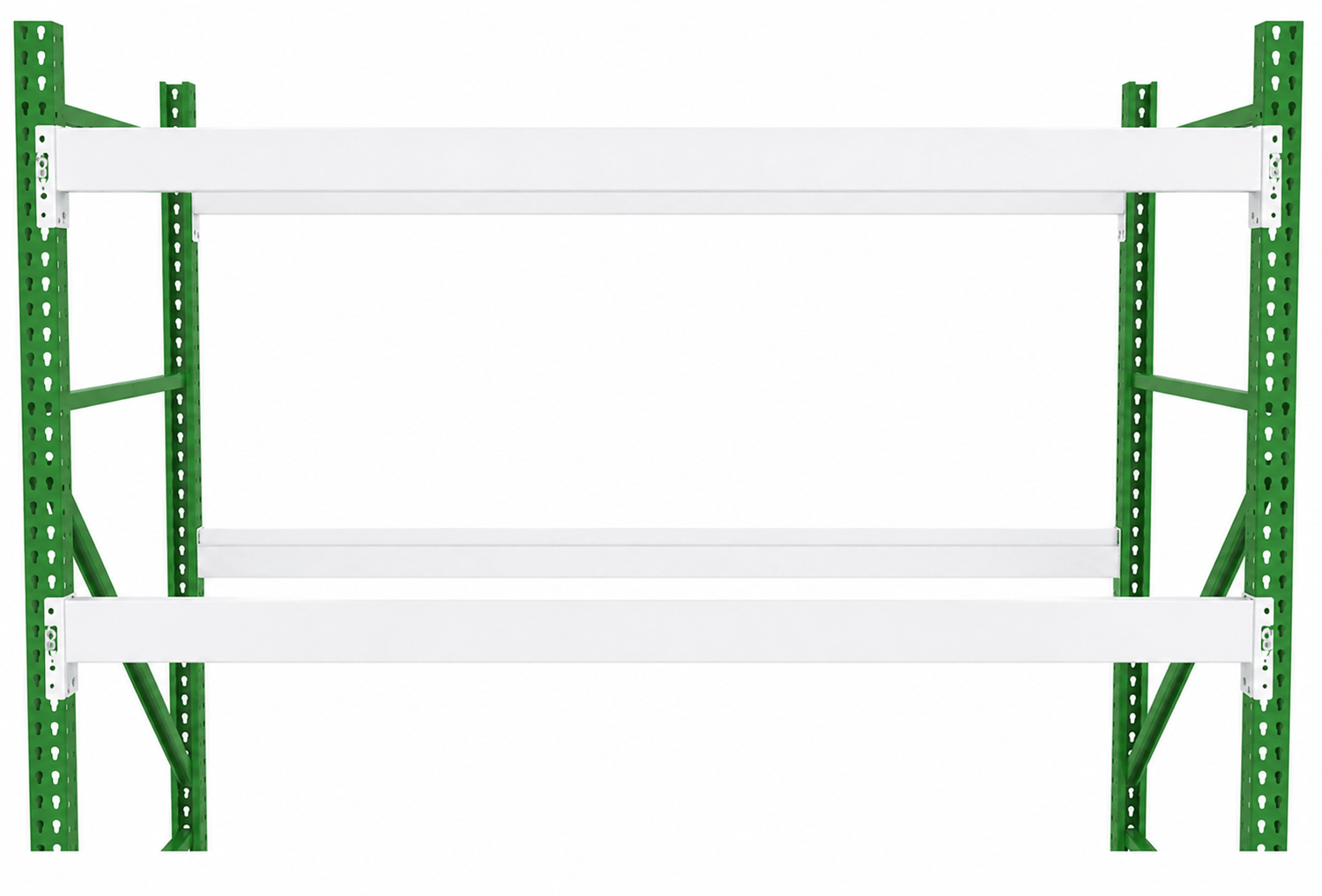

Compatible with standard teardrop pallet rack uprights and Interlake New Style frames, these beams install using a boltless teardrop connection system for fast beam repositioning and layout adjustments. The powder-coated steel finish provides added durability in high-traffic warehouse operations.
Beam capacity is rated at 1,777 lb per pair using uniformly distributed static loads. Two beams are required per pallet rack level. Beams are sold individually.
This beam configuration is intended for standard teardrop pallet rack systems and is not designed for structural pallet rack installations.
Key Features
- Standard 1 5/8" step beam
- Compatible with teardrop pallet rack uprights
- Compatible with Interlake New Style frames
- Tool-free boltless teardrop connection
- Powder-coated steel finish
- Supports wire decking, pallet supports, and wood decking
- Connects to upright frames in pallet rack systems
- Sold individually
- Two beams required per storage level
- Manufactured to Rack Manufacturers Institute standards
Common Applications
- Warehouse pallet storage systems
- Backroom inventory storage
- Light-to-medium duty pallet rack applications
- Distribution centers
- Manufacturing storage areas
- Ecommerce fulfillment operations
Specifications
| Specification | Details |
|---|---|
| Beam Length | 96" |
| Beam Face Height | 3" |
| Capacity | 1,777 lb per pair |

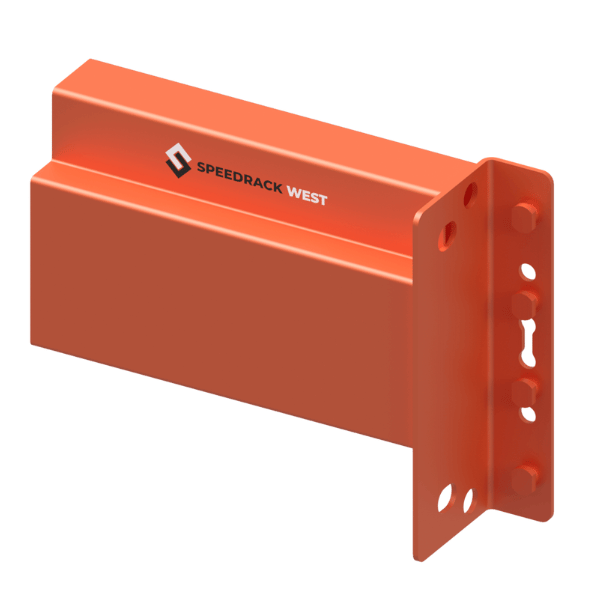

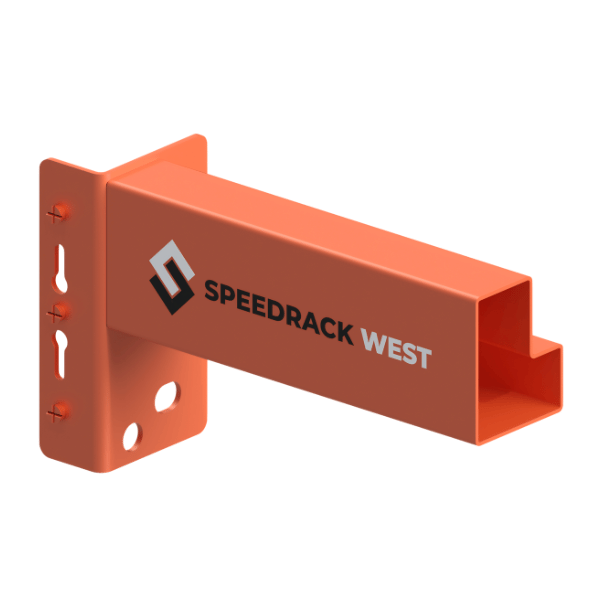

| Beam Step | 1 5/8" |
| Connection Style | Teardrop |
| Compatible Systems | Teardrop and Interlake New Style |
| Finish | Powder coated |
| Material | Steel |
| Beam Sale Unit | Individual beam |
| Quantity Required | 2 beams per level |
Compatibility
These pallet rack beams are compatible with teardrop pallet rack frames, Interlake New Style uprights, standard wire decking, pallet supports, and wood decking systems.
Do not use these beams with structural pallet rack systems, non-compatible upright punch styles, or custom engineered rack layouts without verification.
Capacity & Load Notes
Beam capacities are rated per pair using uniformly distributed static loads. Capacity requirements should be calculated using the heaviest pallet load planned for each beam level.
To determine required beam capacity, identify the heaviest pallet weight, multiply it by the number of pallet positions per level, and select a beam pair with sufficient rated capacity.
Improper beam selection can result in rack instability, beam deflection, or system failure.
Installation Notes

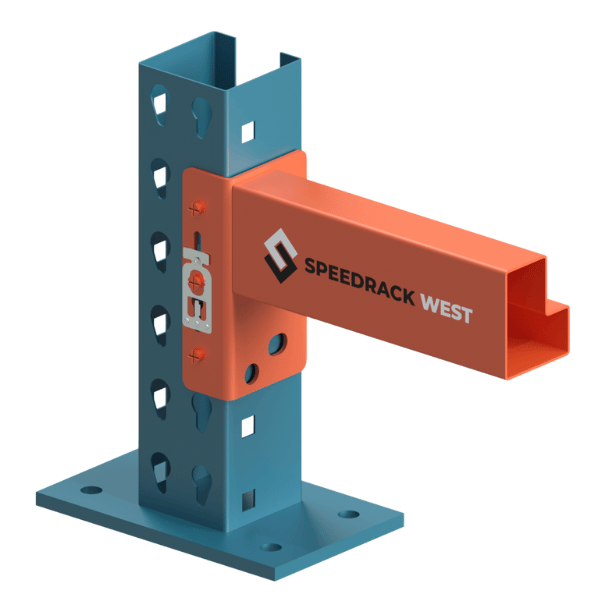

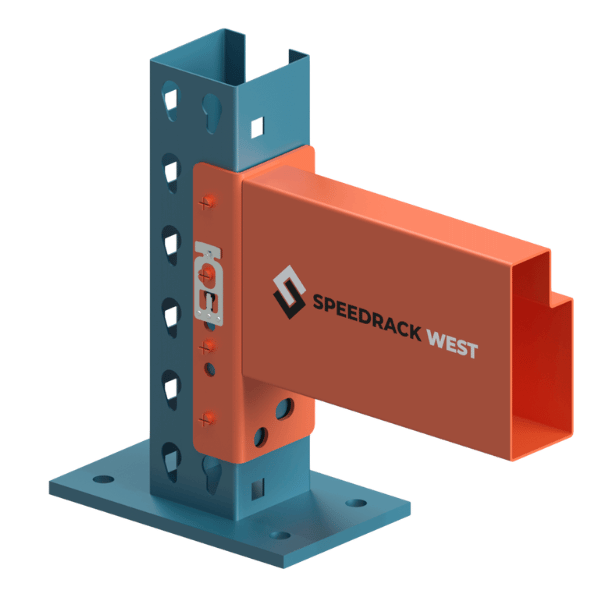

The teardrop connector design allows fast boltless installation without tools. Beam heights can be adjusted using standard teardrop upright perforations.

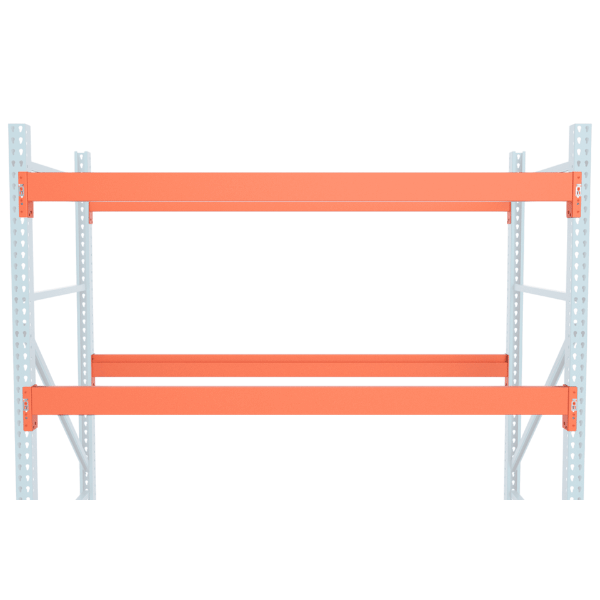

Two beams are required for each pallet rack shelf level.
Seismic & Engineering Notice
Beam capacity depends on rack configuration, pallet distribution, upright spacing, and local code requirements. Facilities located in seismic regions should obtain a rack configuration review before installation.
Final rack design verification should be completed by a qualified rack professional or engineer.
Custom Beam Availability
Custom beam lengths are available for non-standard rack layouts and warehouse configurations. Contact our team for fabrication options and lead times.
