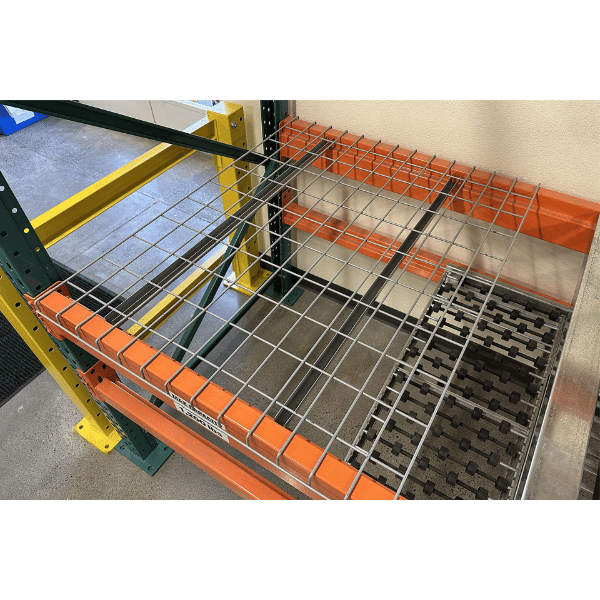

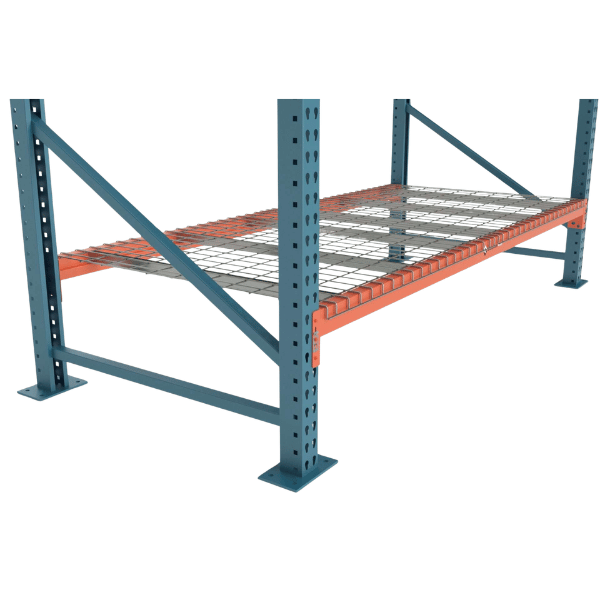

58" Wide Standard Pallet Rack Wire Decking for 10' Beams

Speedrack West | SKU: WMD-3658SM-GRYI

$53.20

Shipping calculated at checkout.

Depth

36" 42" 44" 48"

Handling & Use Requirements

Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.

Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.

Delivery & Freight Shipping

All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.

You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.

Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.

Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.

Add a stand out message for your customers

Need Help Specifying This Equipment?

Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.

Description

58" Wire Decking for Standard 10 Ft Pallet Rack Beams

58" wide standard pallet rack wire decking is designed for use with standard 10 ft pallet rack beam systems using 1-5/8" step beams. These waterfall-style wire decks create a stable storage surface for pallets, cartons, bins, and mixed warehouse inventory while improving rack safety and load support across pallet rack levels.

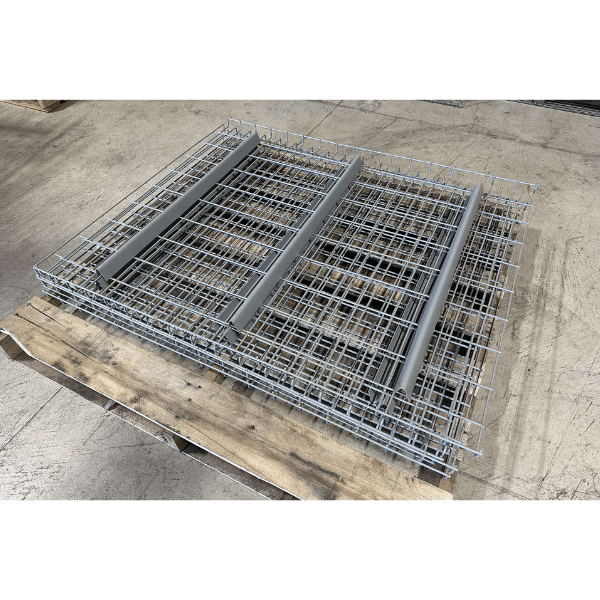

This wire mesh decking uses a 2" x 4" grid pattern with welded steel construction and a durable gray powder coat finish for long-term warehouse use. The waterfall design helps reduce deck movement during loading and unloading compared to loose wood decking or unsupported shelf materials.

Rack depth must match the pallet rack frame depth. This product is intended for uniformly distributed pallet rack loads only and should not be used for concentrated point-load applications or unsupported rack systems.

Key Features

Designed for standard 10 ft pallet rack beam systems
58" overall deck width

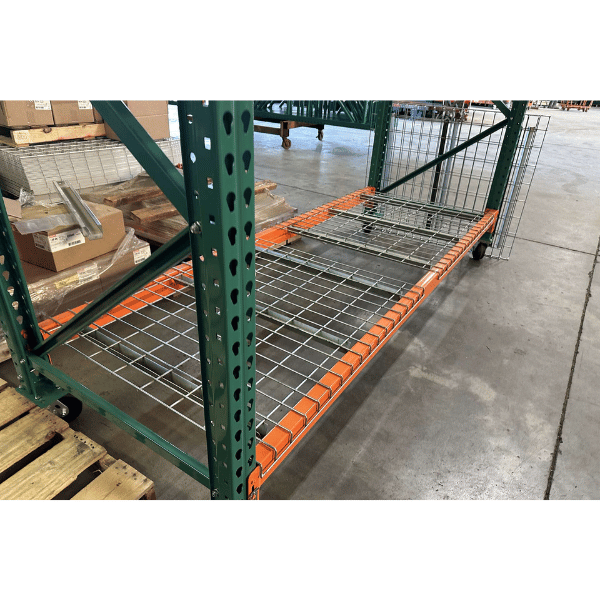

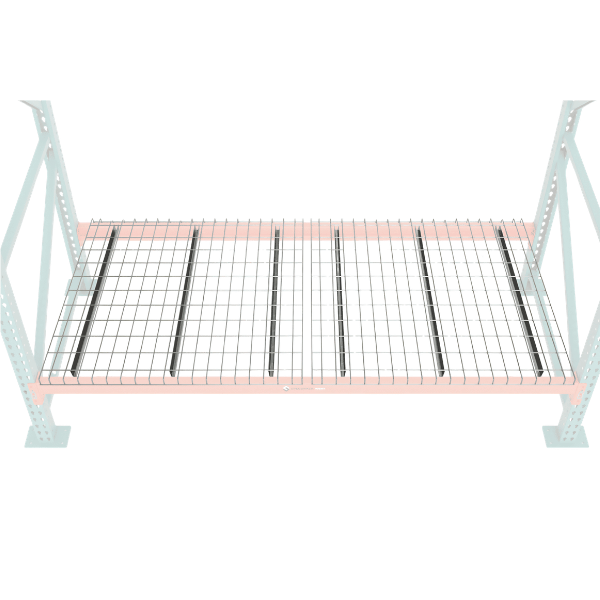

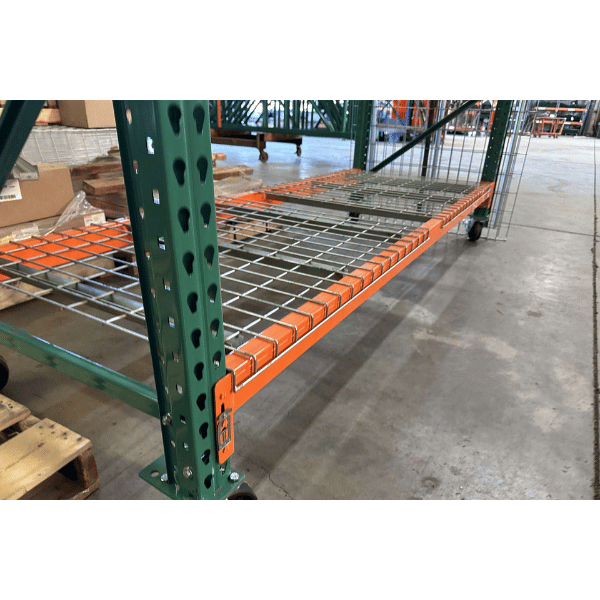

Waterfall-style wire decking rests securely over front and rear beams
2" x 4" wire mesh grid pattern
Durable gray powder coat finish
6 gauge welded wire construction

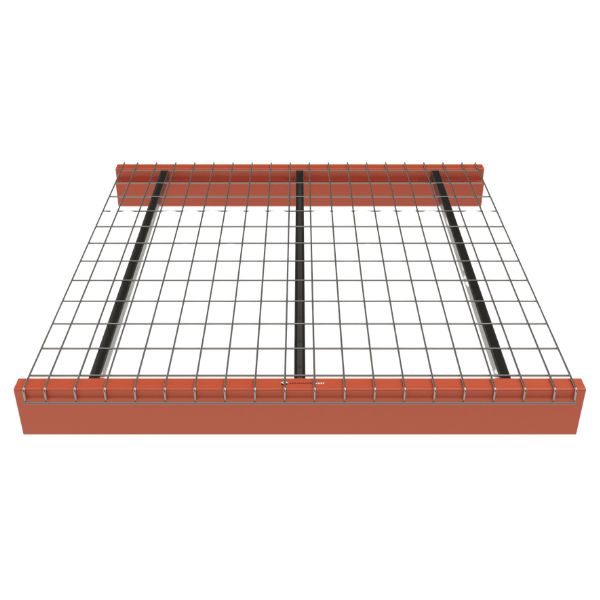

Three U-channel supports for standard 1-5/8" step beams
Supports pallets, cartons, bins, and mixed warehouse inventory
Drop-in installation with no fasteners required
Improves fire sprinkler penetration compared to solid wood decking
Helps reduce accidental shifting common with loose wood decking

Available Rack Depth Variants

Select the wire deck depth that matches your pallet rack frame depth.

Rack Depth	SKU
36" Rack Depth	WMD-3658SM-GRYI
42" Rack Depth	WMD-4258SM-GRYI
44" Rack Depth	WMD-4458SM-GRYI
48" Rack Depth	WMD-4858SM-GRYI

Specifications

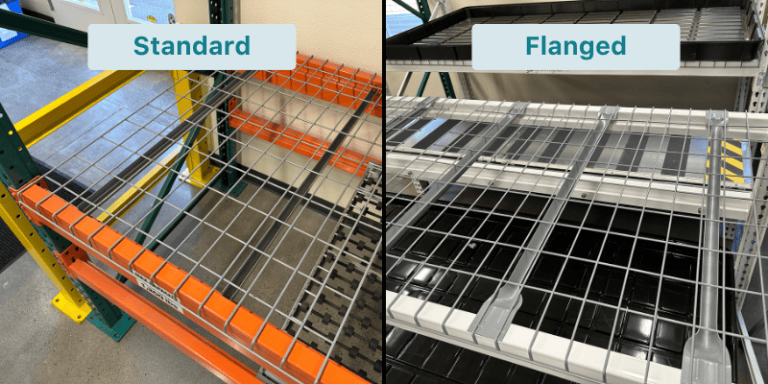

Product Type	Standard waterfall wire mesh decking
Deck Width	58"
Beam Compatibility	Standard 10 ft pallet rack beams
Compatible Beam Type	Standard 1-5/8" step beams
Available Depths	36", 42", 44", 48"
Wire Pattern	2" x 4" grid
Wire Gauge	6 ga.
Finish	Gray powder coat
Support Channels	Three U-channel supports
Installation Type	Drop-in waterfall style
Load Capacity	2,500 lb uniformly distributed load
Intended Use	Pallet rack storage support
Environment	Indoor warehouse applications

Best Fit Applications

Distribution centers
3PL warehouses
Manufacturing storage areas
Ecommerce fulfillment operations
Mixed-SKU pallet rack systems
Carton and bin storage applications

The 58" deck width is specifically configured for standard 10 ft pallet rack beam layouts requiring two decks per beam level.

Not Recommended For

Point-loaded applications
Damaged or overloaded pallet rack systems
Beam profiles incompatible with standard 1-5/8" step beams
Rack depths that do not match the selected deck depth
Outdoor corrosive environments unless additional finish protection is specified
Unsupported shelving applications outside pallet rack systems

Always verify rack compatibility, beam condition, and load requirements before ordering.

Quantity Guidance

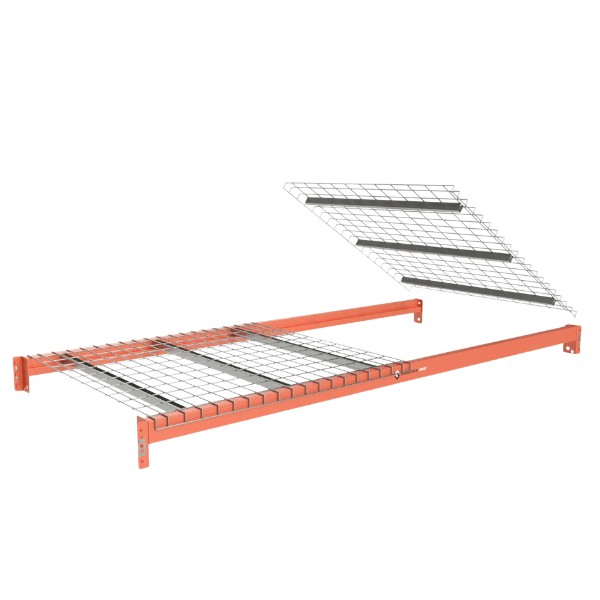

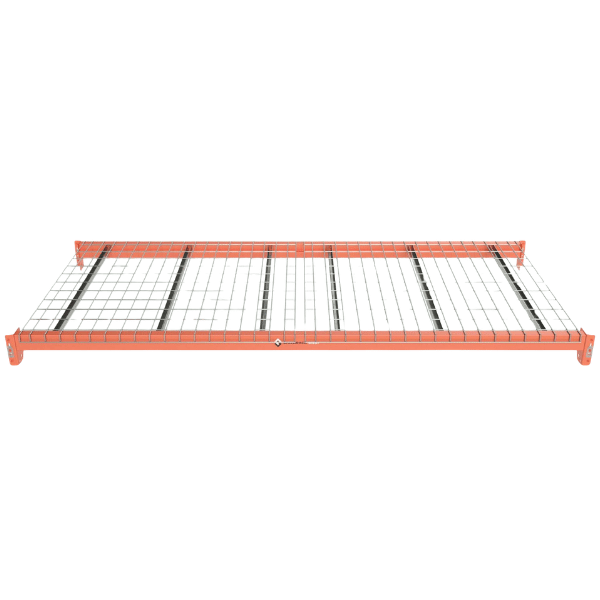

Standard 10 ft pallet rack beam levels typically require two 58" wide wire decks per beam level.

Example: one complete 10 ft beam level requires two 58" wire decks.

Wire Decking vs Wood Decking

Wire mesh decking provides a more stable and safer pallet rack storage surface than loose wood boards or plywood inserts. The welded wire grid allows better sprinkler penetration, reduces accidental deck shifting, and provides manufacturer-rated load capacities for warehouse storage applications.

Wood decking does not provide standardized load ratings and may shift or fail under repeated pallet loading if not properly supported.

Important Compatibility Notes

Deck depth must match rack frame depth
Designed for standard pallet rack beam systems only
Verify beam length before ordering
Verify beam profile compatibility before purchase
Capacity ratings apply only to uniformly distributed loads
Rack system condition impacts overall load performance

📚 Frequently Asked Questions (FAQs)

What size beam is this 58" wire decking designed for?

This decking is designed for standard 10 ft pallet rack beams. Do not use with shorter or longer beam systems unless compatibility has been verified.

How many wire decks do I need for a 10 ft beam level?

Standard 10 ft pallet rack levels require two 58" wire decks per level. Ordering fewer decks will leave unsupported storage gaps.

Does the rack depth need to match the wire deck depth?

Yes. The wire deck depth must match the pallet rack frame depth. Incorrect depth selection can create unstable deck support and unsafe loading conditions.

Can this wire decking be used with any pallet rack brand?

No. This decking is designed for standard 1-5/8" step beams. Beam profile differences between manufacturers may prevent proper fitment.

Is wire decking better than wood decking for pallet racks?

Wire decking provides manufacturer-rated load support and improved sprinkler penetration. Loose wood decking can shift during pallet loading and does not provide standardized load ratings.
