52" Wide Standard Pallet Rack Wire Decking for 9' Beams

Standard 52" Wire Decking for 9' Pallet Rack Beams

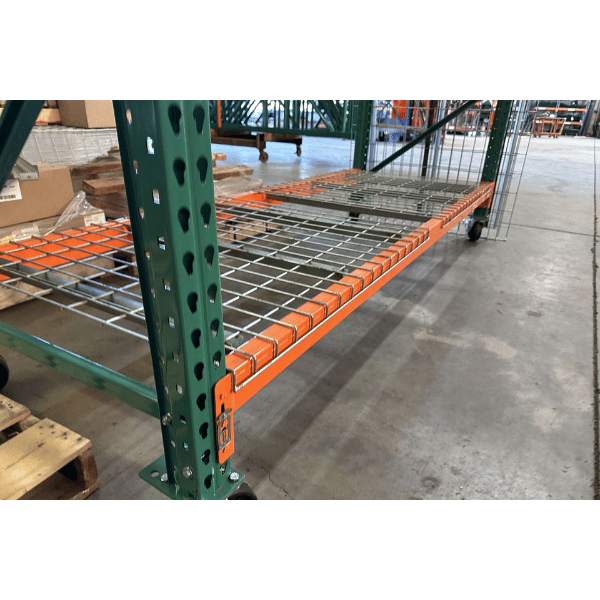

52" wide standard pallet rack wire decking is designed for pallet rack systems using 108" beam levels and standard 1-5/8" step beams. Waterfall wire decking creates a stable storage surface for pallets, cartons, bins, and mixed warehouse inventory while improving rack safety and storage flexibility.

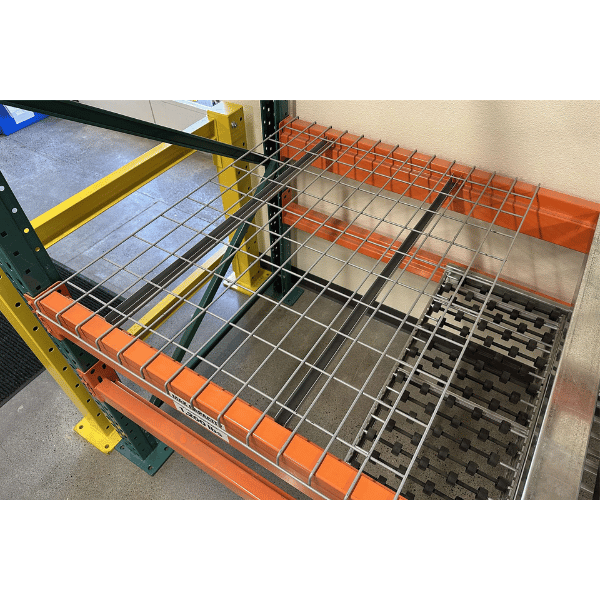

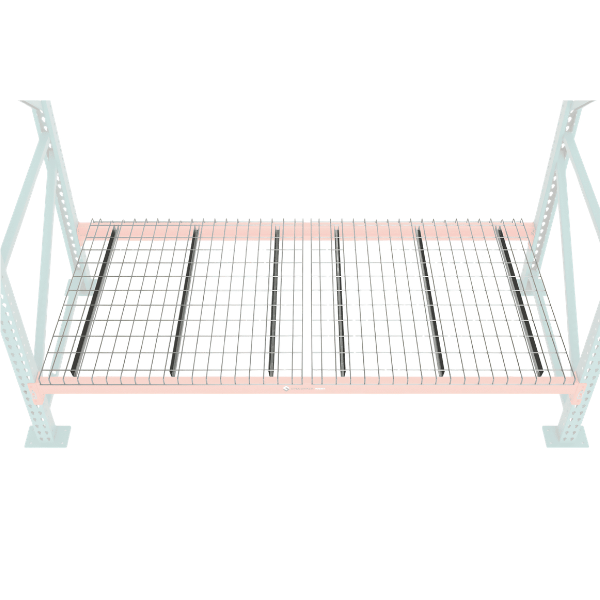

This wire mesh decking uses a waterfall edge design that rests securely over the front and rear beam edges to reduce deck movement during pallet loading and unloading. The 2" x 4" wire grid allows better sprinkler water penetration than solid wood shelving surfaces and helps prevent inventory from falling between beam openings.

Designed for warehouse, manufacturing, distribution, fulfillment, and 3PL storage environments, these wire decks install directly onto standard pallet rack beams without field modification or special mounting hardware.

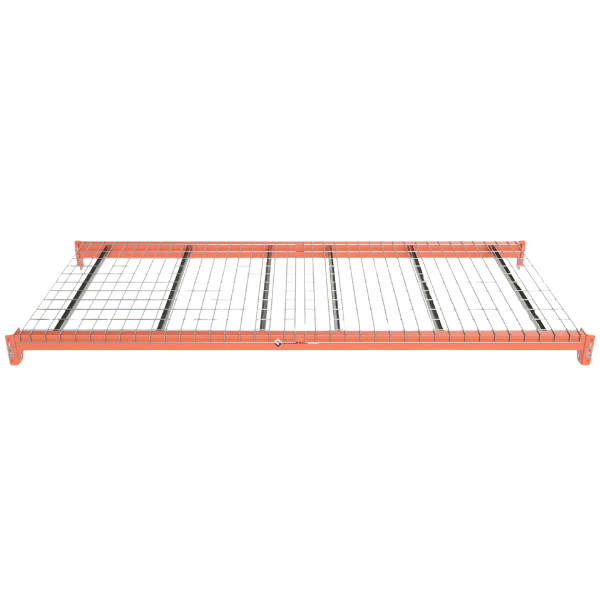

For standard 9' pallet rack beam levels, two 52" wire decks are required per beam level.

Key Features

• Designed for standard 108" pallet rack beam levels
• 52" width configuration for 9' beam systems
• Compatible with standard 1-5/8" step beams
• Waterfall edge design helps reduce shifting
• Supports pallets, bins, cartons, and loose inventory
• 2" x 4" wire mesh grid pattern
• 6 gauge steel wire construction

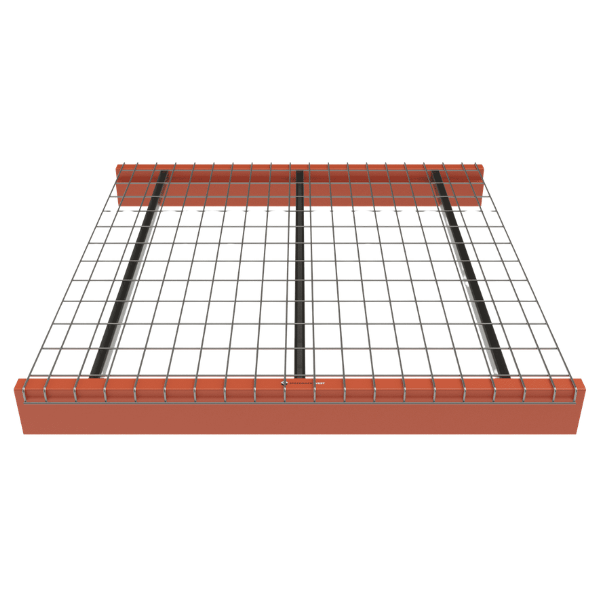

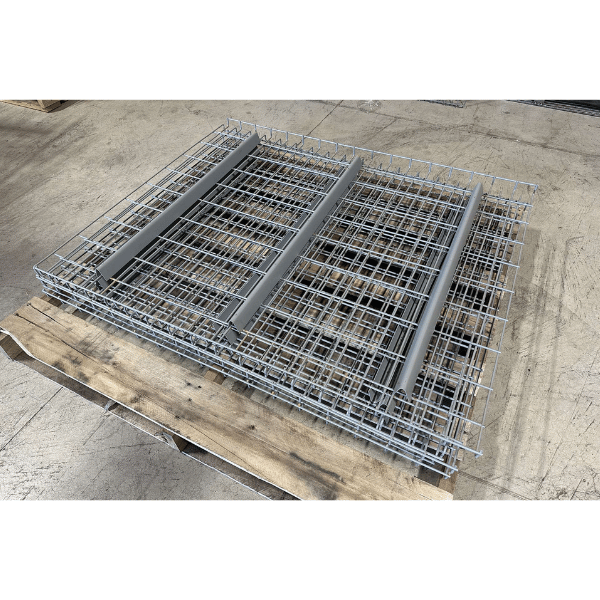

• Three U-channel supports for additional rigidity
• Gray powder-coated finish

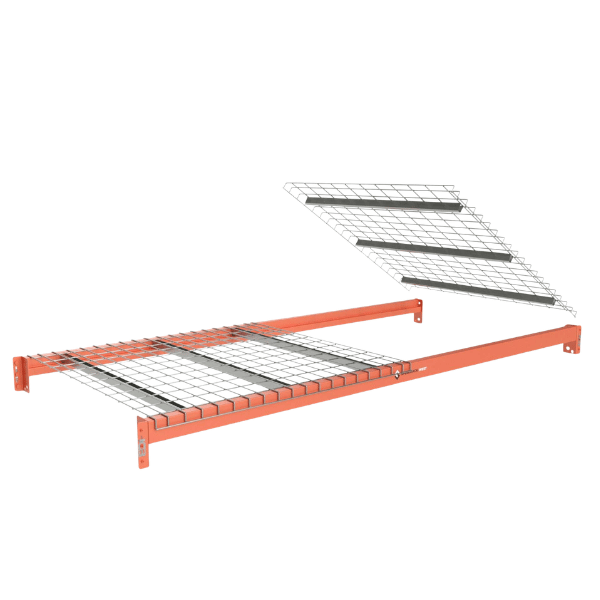

• Drop-in installation
• Manufacturer-rated load support
• Improved sprinkler water penetration compared to wood decking

Technical Specifications

Available Variants

Beam Compatibility

What Beam Size Uses 52" Wire Decking?

52" wide wire decking is designed specifically for 108" pallet rack beam levels, also referred to as standard 9' pallet rack beams.

Do not use 52" wire decks on:

• 96" beam systems
• 120" beam systems
• Non-standard beam lengths

Incorrect deck width can create unsupported loads and unstable storage conditions.

Quantity Requirements

How Many Wire Decks Are Needed Per Beam Level?

Standard 9' pallet rack beam levels require two 52" wire decks per beam level.

Example: one pair of 108" beams requires two 52" wire decks.

Using fewer decks creates unsupported storage gaps between beam spans.

Wire Decking vs Wood Decking

Wire mesh decking provides safer and more consistent pallet rack storage performance than wood decking alternatives.

Improved Inventory Support

The 2" x 4" wire mesh pattern helps support cartons, bins, and smaller inventory that may not safely rest directly on pallet rack beams or open wood supports.

Better Fire Safety Performance

Wire decking allows sprinkler water penetration through rack levels. Solid wood surfaces can obstruct sprinkler coverage and may not meet warehouse fire safety requirements.

Rated Load Capacity

Wire decking includes manufacturer-rated load capacities. Field-cut wood decking does not provide verified load ratings or engineered load distribution.

Reduced Shifting During Loading

The waterfall edge design wraps over both beam edges to help reduce deck movement during pallet handling operations.

Lower Long-Term Maintenance

Wood decking commonly shifts, cracks, warps, or requires field cutting. Wire decking installs directly onto pallet rack beams with minimal ongoing maintenance.

Common Applications

• Distribution centers
• Ecommerce fulfillment operations
• Manufacturing storage
• 3PL pallet storage
• Mixed-SKU warehouses
• Carton and bin storage systems
• Industrial pallet rack systems

Important Compatibility Notes

• Deck depth must match rack frame depth
• Use only with compatible step beams
• Verify rack capacities before loading
• Load ratings assume uniform distributed loads
• Do not exceed rated beam or rack capacities
• Decking does not replace engineered rack system requirements

Need Help Matching Wire Decking to Your Rack System?

Provide your beam length, rack depth, pallet dimensions, and load requirements to verify correct wire decking compatibility before ordering.
