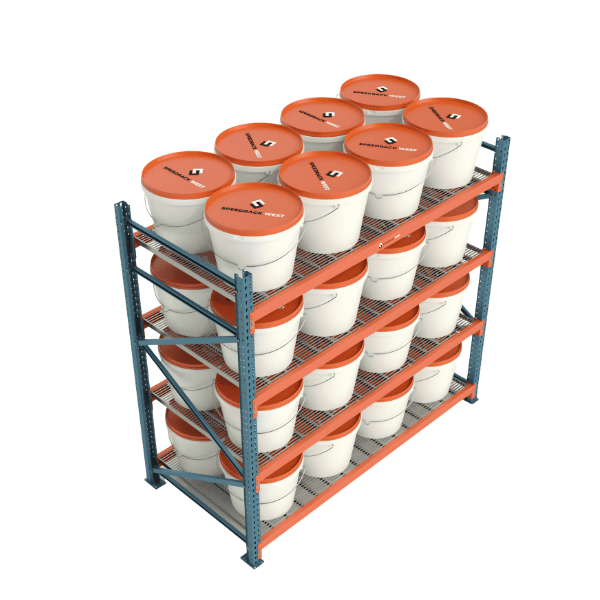

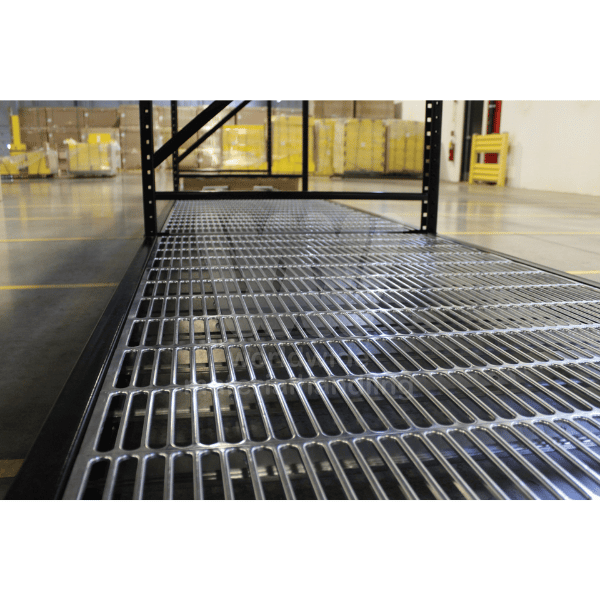

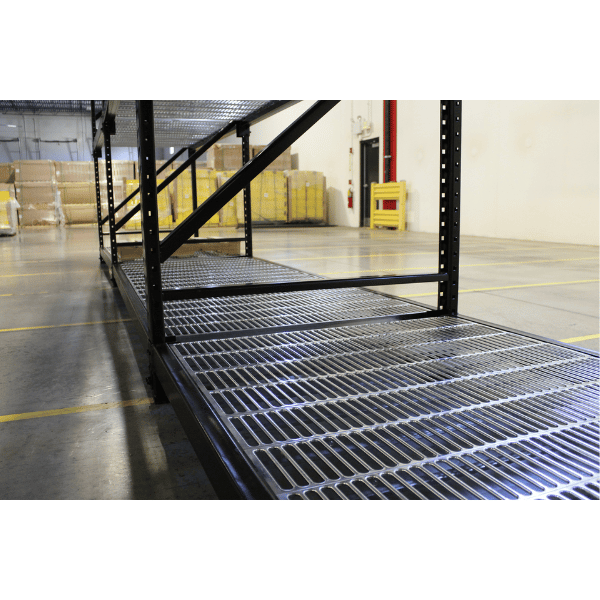

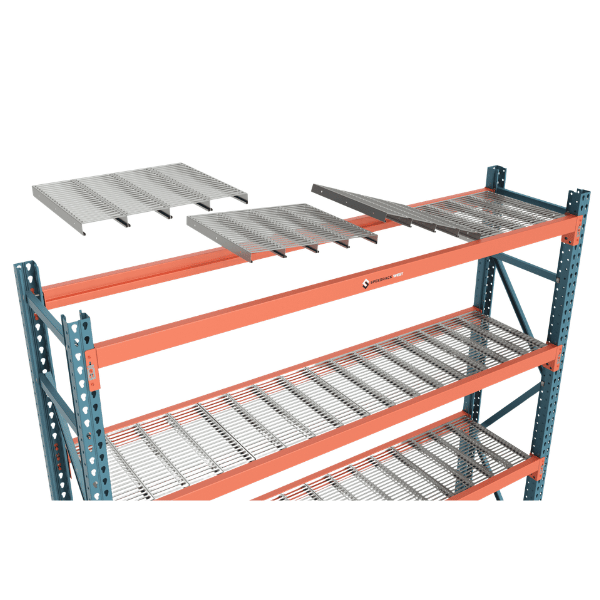

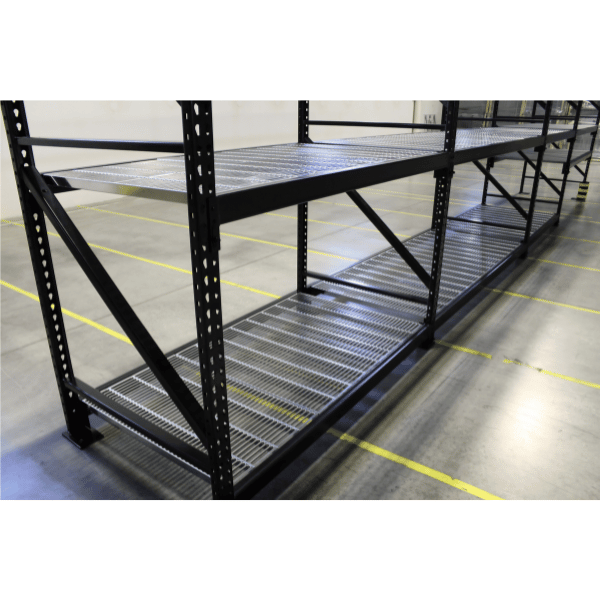

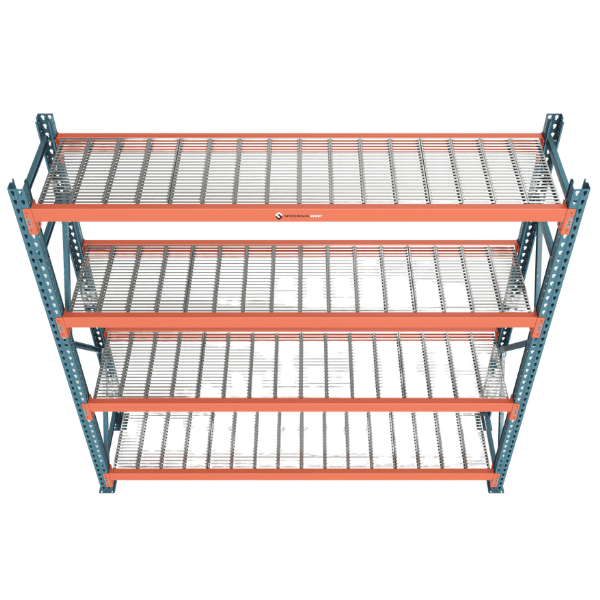

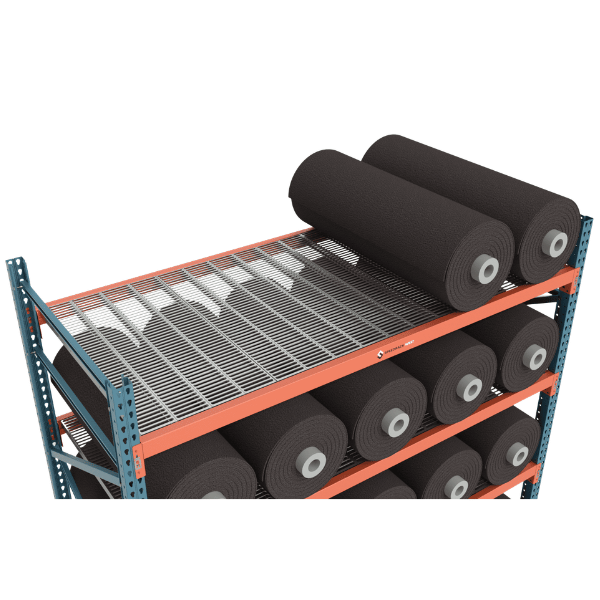

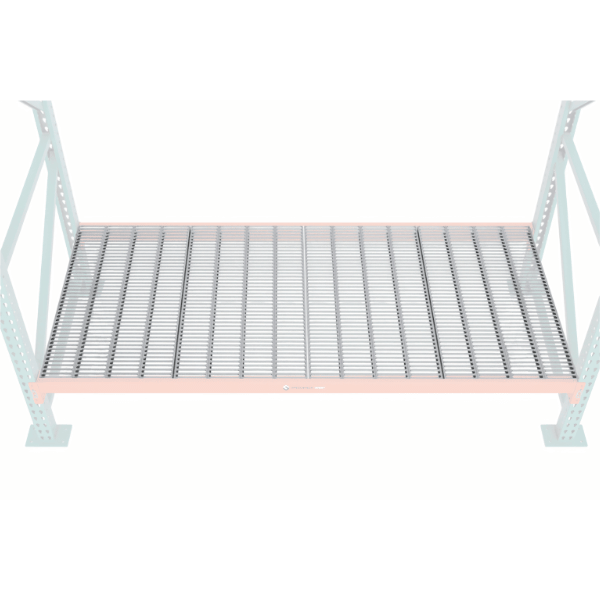

48" x 24" Punched Steel Wire Deck – 1350 lb Capacity

Punched Steel Rack Decking for Airflow and Small-Item Storage

The 48" x 24" punched steel wire deck is designed for pallet rack systems requiring airflow, drainage, small-item retention, and a flat hand-stacking surface. With a 1350 lb uniform distributed load capacity and 50% open surface area, this decking configuration is commonly used in retail storage, records storage, cold storage, medical inventory, and light-to-medium warehouse applications.

Unlike traditional wire mesh decking, punched steel decking provides a smooth, snag-free surface that improves carton stability and helps prevent small products, parts, or packaging from falling through the deck surface. The galvanized steel construction resists corrosion and simplifies cleaning in environments where dust buildup, moisture, or airflow requirements matter.

Why Choose Punched Steel Decking Instead of Wire Mesh?

Traditional wire mesh decking performs well for standard pallet support, but punched steel decking is often selected when product stability, small-item retention, cleanliness, or hand-stacking performance are more important than maximum open spacing.

Recommended Applications

• Retail inventory shelving
• Hand-stacked carton storage
• Distribution shelving
• Cold storage and freezer applications
• Medical supply storage
• Records and archival storage
• Light industrial warehouse storage
• Small-part storage applications
• Boltless shelving systems
• Wide-span shelving systems

Key Features

• 48" wide x 24" deep punched steel rack decking
• 1350 lb uniform distributed load capacity
• Flat snag-free storage surface
• 50% open surface area
• Supports airflow and drainage
• Helps meet NFPA 13 sprinkler requirements
• Galvanized steel construction
• Corrosion-resistant finish
• Helps prevent small item fall-through
• Stronger and more rigid surface than standard wire mesh decking
• Compatible with pallet rack beam systems
• Can be used with boltless and wide-span shelving
• Easier to clean than traditional wire mesh decking

Technical Specifications

Punched Deck Capacity Reference

All standard punched steel decking shown below is manufactured from 20-gauge steel.

Smaller punched deck sizes provide higher pounds-per-square-foot capacity ratings and are generally recommended for dense industrial inventory, tooling, and heavy-duty warehouse storage applications.

Punched Steel Decking vs Wire Mesh Decking

Selecting the Right Punched Deck Size

Punched steel decking selection should be based on both coverage area and load density requirements.

Smaller deck configurations provide higher structural load ratings and are generally used for dense inventory, industrial components, tooling, automotive parts, and heavy warehouse applications.

Larger deck configurations provide wider coverage but lower pounds-per-square-foot ratings and are typically selected for hand-stacked inventory, retail shelving, freezer storage, medical inventory, records storage, and visually exposed shelving systems.

Request a Decking Quote

Need help matching punched steel decking to your pallet rack system, beam spacing, inventory weight, or freezer storage requirements?

Talk to a warehouse equipment specialist before selecting rack decking capacity or deck size.
