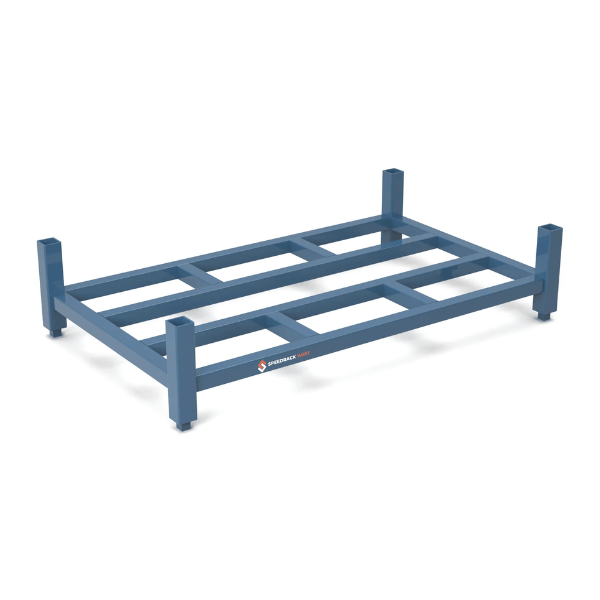

3–5 High Stacking Rack Base Only (No Posts Included)

Portable High-Density Warehouse Storage Without Permanent Racking

Portable stacking rack base designed for modular warehouse storage systems that stack 3–5 levels high. Use with compatible stacking rack posts to create high-density vertical storage without permanent pallet racking, anchors, or floor-mounted systems.

Stacking racks are ideal for warehouses, manufacturing facilities, 3PL operations, tire distributors, and seasonal overflow storage where layouts change frequently or additional vertical capacity is needed quickly. Fully assembled racks can be moved by forklift as a single unit, allowing inventory to be reconfigured without fixed racking installations.

This product includes the stacking rack base only. Compatible stacking rack posts are sold separately.

Best For

• Seasonal overflow inventory
• Portable warehouse storage
• Tire and wheel distribution
• Manufacturing WIP storage
• Mixed pallet storage
• Lumber, tubing, and long material storage
• 3PL and flexible warehouse layouts

Do NOT Use If

• You need permanent seismic-rated pallet racking
• Loads exceed the rack’s rated capacity
• Floor conditions are uneven or unstable
• You require ASRS or automated warehouse compatibility
• You intend to stack racks without compatible posts

Why Warehouses Use Stacking Racks

• Instant Vertical Storage: Stack fully assembled racks 3–5 levels high to maximize warehouse cube utilization without installing permanent racking systems.
• Portable Layout Flexibility: Move loaded racks using a forklift to reconfigure storage layouts, create overflow zones, or support seasonal inventory changes.
• No Installation Required: Posts insert directly into the base sockets with no bolts, anchors, permits, or fixed rack installation required.
• Space-Saving Nesting Design: When empty, bases nest together to reduce floor space consumption during low-inventory periods.
• Cost-Effective Alternative to Pallet Racking: Stack racks provide expandable vertical storage without the cost and permanence of fixed pallet rack systems.

How the Stacking Rack System Works

Each complete stacking rack system consists of:

• One stacking rack base
• Four compatible stacking rack posts

Posts slide directly into the corner sockets of the base without tools or hardware.

Each post includes integrated stacking targets that align with the rack above, while the base includes alignment targets for stable stacking below. Once assembled, racks can safely stack 3–5 levels high depending on load weight, forklift capability, and warehouse operating conditions.

Choosing the Right Base Size

Expert Recommendation

For most standard warehouse pallet applications, the 42" × 48" base is the preferred configuration because it supports standard pallets while minimizing unnecessary floor space.

Base Pattern Options

Standard Configuration

• S-4 balanced grid base pattern

Optional Configurations Available Upon Request

• S-2: Wide beam support for rigid pallets
• S-3: Narrow support spacing for moderate loads
• S-5: Dense grid support for heavy loads or decking applications

What’s Included

Included

• One stacking rack base
• Corner upright sockets
• 6" × 6" stacking targets

Not Included

• Stacking rack posts
• Decking
• Forklift
• Anchoring hardware

Key Features

• Stack 3–5 levels high for high-density warehouse storage
• Portable forklift-accessible storage system
• Modular design with interchangeable bases and posts
• Tool-free assembly with drop-in post installation
• Durable steel construction for industrial warehouse environments
• Standard 2,000 lb capacity per rack
• Optional 4,000 lb heavy-duty configuration available by request
• Nesting base design reduces empty storage footprint
• No anchors or permanent rack installation required

Common Applications

Automotive & Tire Distribution

Used extensively for tires, wheels, engines, transmissions, and heavy automotive components.

Manufacturing & Industrial

Ideal for WIP inventory, raw materials, subassemblies, and components that cannot be floor stacked safely.

Warehouse & 3PL Storage

Supports overflow inventory, mixed pallets, seasonal inventory peaks, and flexible warehouse layouts.

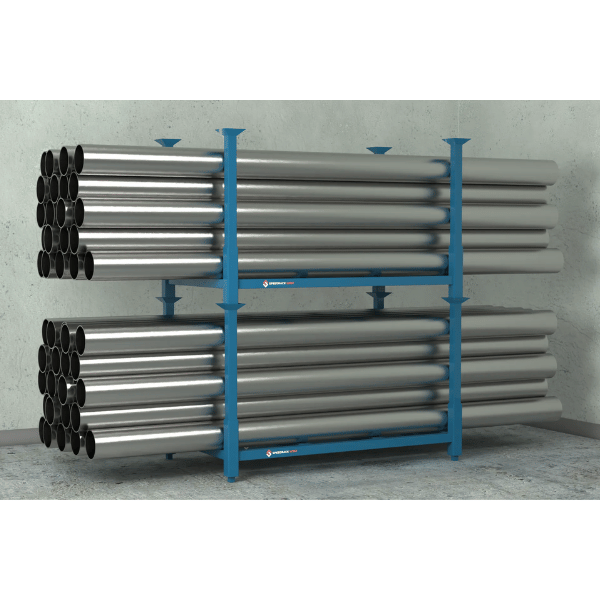

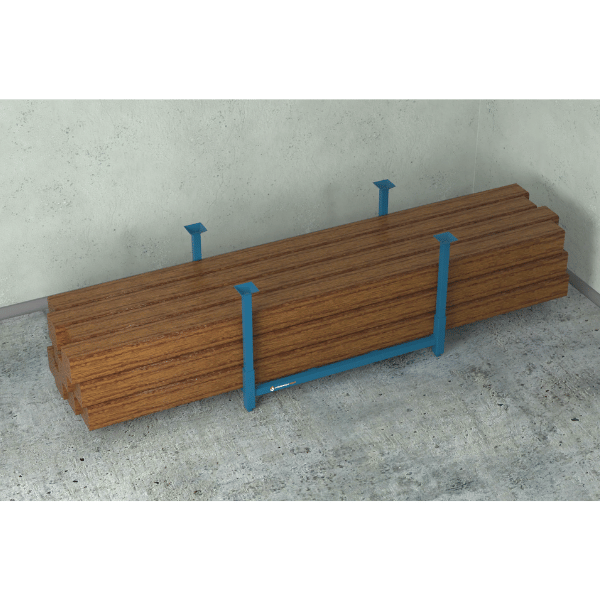

Pipe, Lumber & Long Material Storage

Provides portable storage for tubing, lumber bundles, bar stock, and elongated products without fixed cantilever racking.

Beverage & Food Distribution

Commonly used for kegs, cases, palletized products, and rotating inventory storage.

Specifications

Compatible Components

This product requires four compatible stacking rack posts to create a complete stacking rack system.

Compatible post kits are sold separately.
