46" Width Standard Pallet Rack Wire Decking For 8ft & 12ft Beams
46" Width Standard Pallet Rack Wire Decking For 8ft & 12ft Beams - 36" is backordered and will ship as soon as it is back in stock.
Handling & Use Requirements
Handling & Use Requirements
Equipment must be used within rated load capacities and installed on suitable warehouse flooring. Improper loading, uneven distribution, or use outside intended applications can result in structural failure.
Inspect all shipments upon delivery and note any freight damage before signing. Installation and final configuration should be verified by qualified personnel to ensure safe operation.
Delivery & Freight Shipping
Delivery & Freight Shipping
All equipment ships via LTL or dedicated freight carriers and is delivered curbside or dock-high depending on facility setup. Liftgate service is not included unless specifically requested at the time of quote.
You are responsible for unloading the shipment and must have appropriate equipment (forklift or dock access) available at delivery. Failure to meet delivery requirements may result in re-delivery fees.
Inspect all items upon arrival before signing the Bill of Lading. Any visible damage must be noted at delivery—claims cannot be processed after acceptance without documentation.
Lead times vary based on product type, configuration, and supplier availability. You will receive confirmation of estimated ship dates after order review.
46" Width Standard Pallet Rack Wire Decking For 8ft & 12ft...
46" Width Standard Pallet Rack Wire Decking For 8ft & 12ft Beams - 36" is backordered and will ship as soon as it is back in stock.
Need Help Specifying This Equipment?
Call (888) 620-0190 or email support@kgwarehouseequipment.com. Our team will confirm system fit, capacity, and compatibility before you place an order.
Description
Description

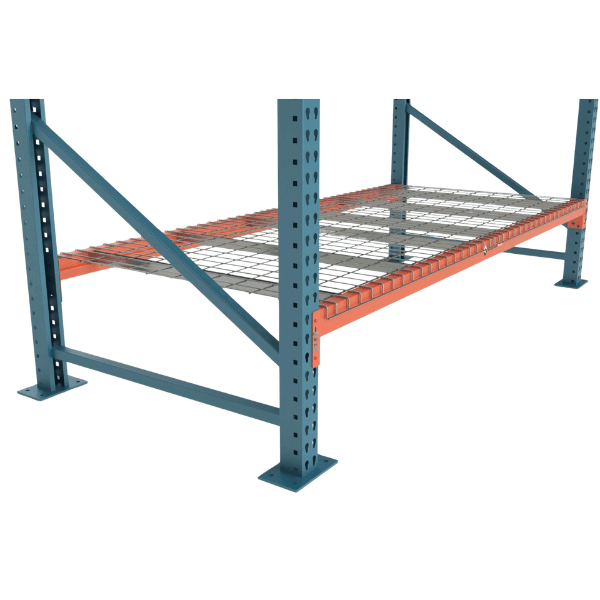

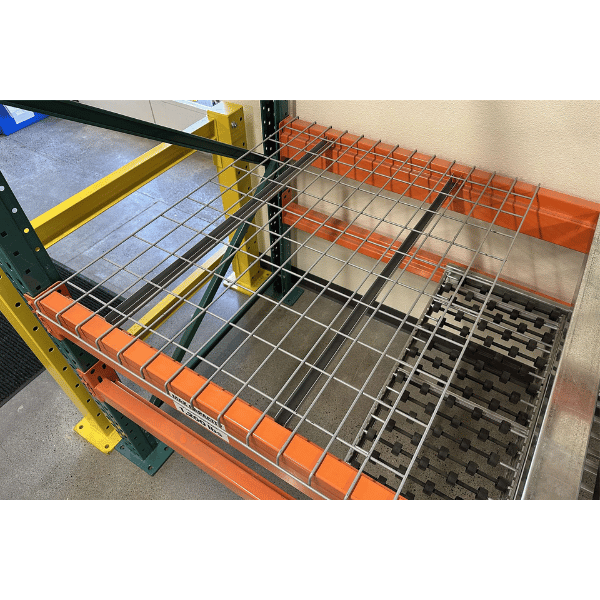

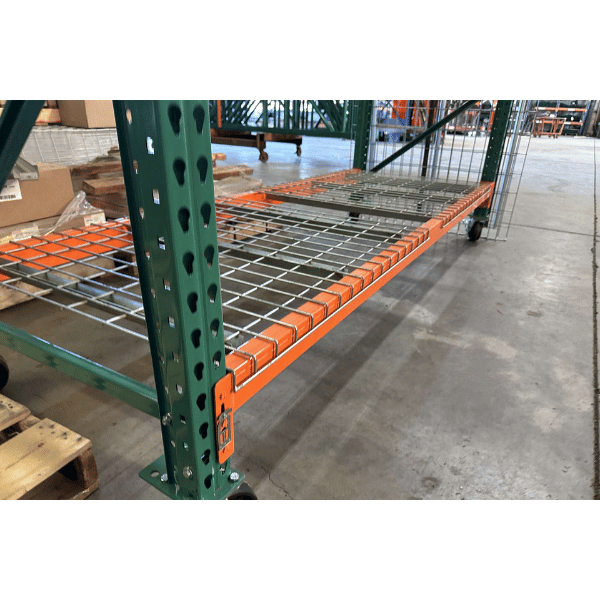

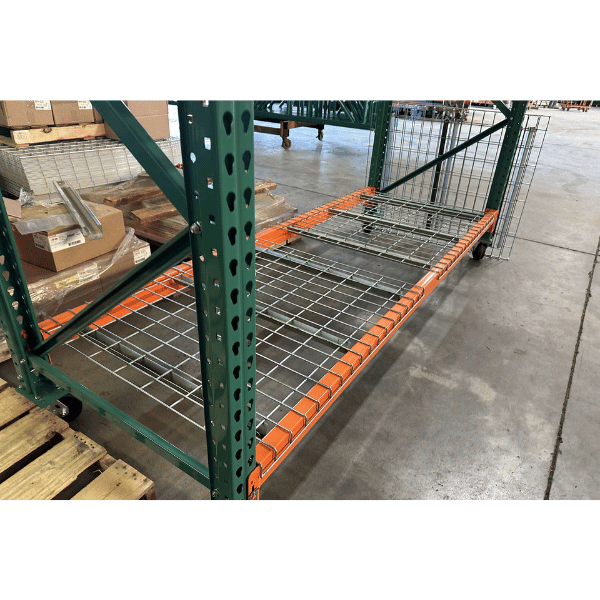

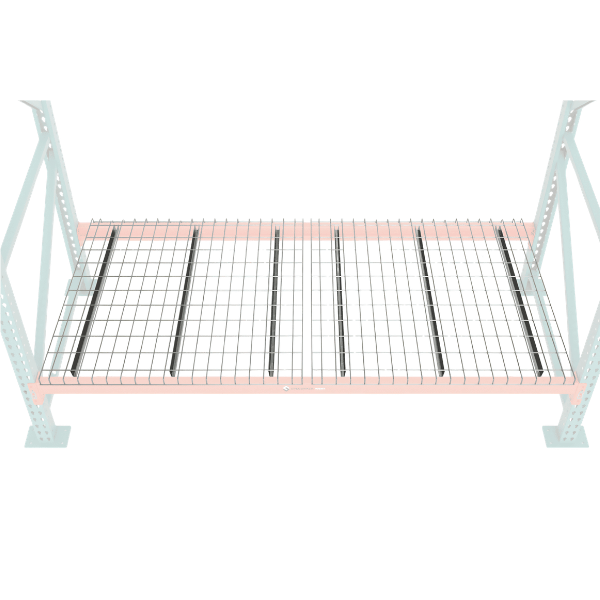

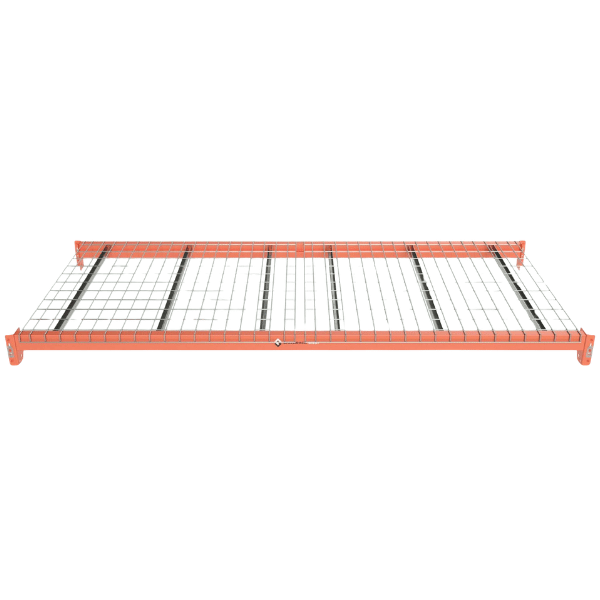

46" wide pallet rack wire decking provides a stable storage surface for pallets, cartons, bins, and mixed warehouse inventory on standard pallet rack systems using 8ft and 12ft beams. This waterfall-style wire mesh decking is designed for standard 1 5/8" step beams and installs directly onto the beam without additional hardware.
The open wire design improves visibility, fire sprinkler penetration, and storage flexibility compared to wood decking or open beam levels. These decks are commonly used in distribution centers, manufacturing facilities, 3PL warehouses, and ecommerce fulfillment operations where mixed SKU storage and safer pallet support are required.
Key Features
- Designed for standard 8ft and 12ft pallet rack beams
- 46" overall width

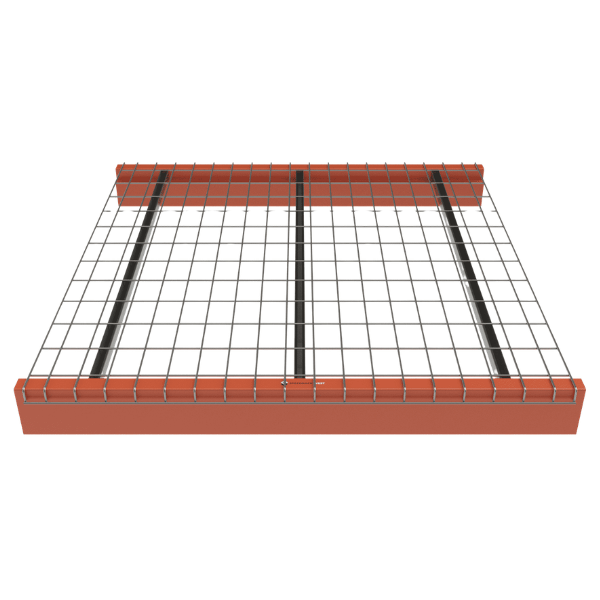

- Waterfall-style deck rests securely over beam face
- Compatible with standard 1 5/8" step beams
- 2" x 4" wire mesh grid pattern
- Durable gray powder coat finish
- 6 gauge wire construction

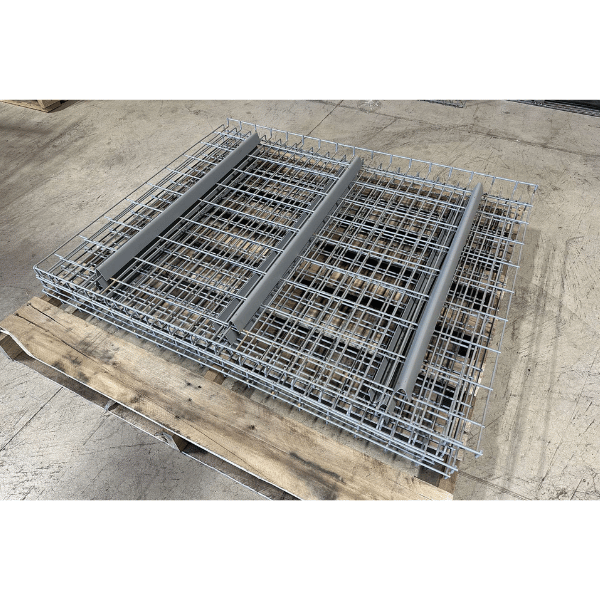

- 3 U-channel supports

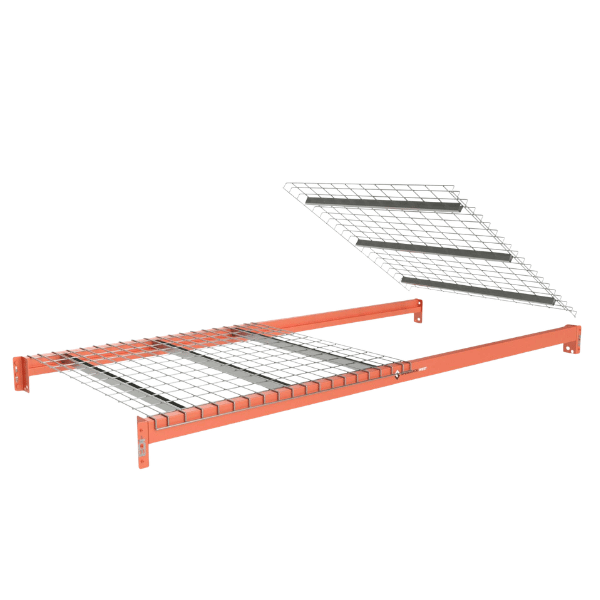

- Drop-in installation with no fasteners required
- Supports pallets, cartons, bins, and non-palletized inventory
- Helps reduce product fall-through compared to open beam levels
Specifications
| Product Type | Pallet Rack Wire Decking |
|---|---|
| Deck Style | Waterfall |
| Width | 46" |
| Compatible Beam Lengths | 8ft & 12ft |
| Compatible Beam Type | Standard 1 5/8" Step Beam |
| Wire Grid Pattern | 2" x 4" |
| Wire Gauge | 6 Gauge |
| Support Channels | 3 U-Channels |
| Finish | Gray Powder Coat |
| Installation Type | Drop-In |
| Capacity | 2500 lbs Uniform Distributed Load |
| 60" Deep Capacity | 2000 lbs Uniform Distributed Load |
Available Depth Variants
| Depth | SKU | Capacity |
|---|---|---|
| 36" | WMD-3646SM-GRYI | 2500 lbs UDL |
| 42" | WMD-4246SM-GRYI | 2500 lbs UDL |
| 44" | WMD-4446SM-GRYI | 2500 lbs UDL |
| 48" | WMD-4846SM-GRYI | 2500 lbs UDL |
| 60" | WMD-6046SM-GRYI | 2000 lbs UDL |
Beam Compatibility & Deck Quantity Requirements
46" wide wire decking is used with standard pallet rack systems configured with 8ft beams or 12ft beams.
| Beam Length | Required Decks Per Level |
|---|---|
| 8ft Beam | 2 x 46" decks |
| 12ft Beam | 3 x 46" decks |
Incorrect deck quantities create unsupported storage gaps and uneven pallet support.
Applications
- Selective pallet racking
- Warehouse carton storage
- Mixed SKU inventory
- Ecommerce fulfillment
- 3PL warehouse operations
- Manufacturing storage systems
- Distribution center pallet storage
- Bin and tote storage
When Not To Use This Wire Decking
- Do not use on box beams unless beam compatibility has been verified.
- Do not exceed published uniform distributed load capacities.
- Do not mix damaged or bent decks into active rack systems.
- Do not use 46" decks on 9ft or 10ft beam systems.
- The 60" deep option carries a reduced 2000 lb capacity and should not be loaded to standard 2500 lb levels.
Wire Decking vs Wood Decking
Wire decking provides more consistent pallet support and safety performance than loose wood decking alternatives.
Fire Safety
The open wire grid allows sprinkler penetration and airflow through rack levels. Many facilities and fire jurisdictions prefer or require wire decking instead of wood surfaces.
Load Consistency
Wire decks include published manufacturer load capacities. Wood decking does not provide standardized load ratings.
Reduced Deck Movement
The waterfall edge design helps prevent deck shifting during pallet loading and unloading operations.
Request a Quote
Need help matching wire decking to your pallet rack system? Contact KG Warehouse Equipment with your beam length, frame depth, pallet size, and load requirements for compatibility verification and quantity recommendations.
📚 Frequently Asked Questions (FAQs)
What beams use 46" wire decking?
How many wire decks are needed for a 12ft beam?
Does this wire decking fit box beams?
What is the load capacity of this wire decking?
Is wire decking better than wood decking for pallet racks?
